PL 2500 SPH - Billy Goat 25" PLUGR Aerator Parts Assembly Parts Diagram

25" PLUGR Aerator

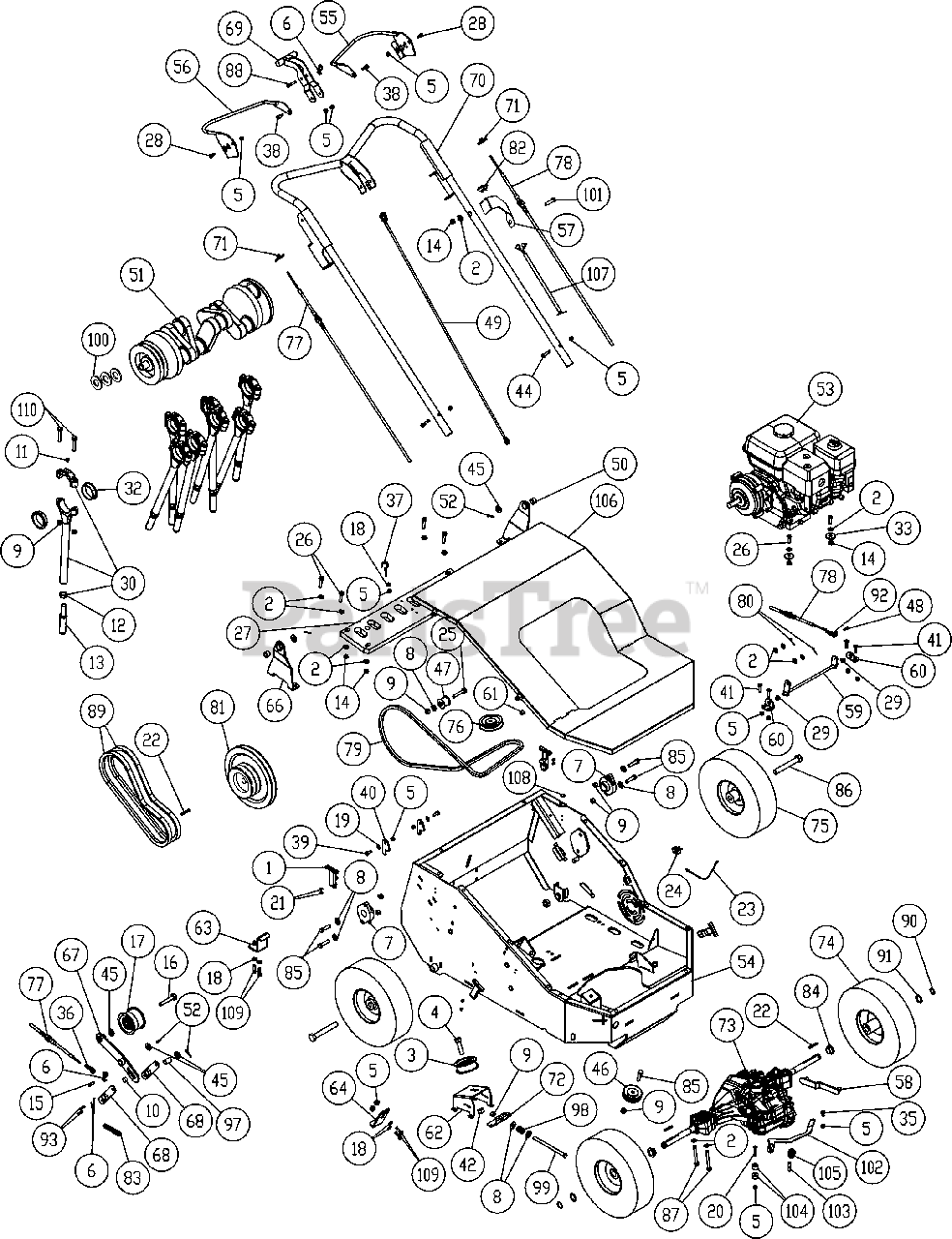

Parts Assembly Parts Diagram

  • Title

1

Billy Goat 381003-01

RUBBER LATCH KIT

$

$

Not available

2

Billy Goat 8171003

WASHER 5/16" FLAT

$0.99

$

In Stock, only 2 left!

0

3

Billy Goat 350114

IDLER PULLEY 2.75" DIA

$41.99

$

Usually ships in 2-11 days

0

4

Billy Goat 8041052

SCREWCAP 3/8"-16 X 1 1/2" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

5

Billy Goat 8160001

NUTLOCK 1/4"-20

$0.99

$

In Stock, Qty 9

0

6

Billy Goat 371275

RUE RING 1/4"

$0.99

$

Usually ships in 2-11 days

0

7

Billy Goat 381042

CARTRIDGE BEARING 1"

$29.99

$

In Stock, only 2 left!

0

8

Billy Goat 8171004

WASHER 3/8" FLAT

$0.99

$

In Stock, Qty 5

0

9

Billy Goat 8160003

NUTLOCK 3/8"-16

$0.99

$

In Stock, Qty 5

0

10

Billy Goat 381625

ROLLER 0.5 OD X 0.25 ID X 0.313

$55.99

$

Usually ships in 2-11 days

0

11

Billy Goat 381052

GREASE FITTING 1/4"-28
(Superseded to 610363)

$0.99

$

Usually ships in 2-11 days

0

12

Billy Goat 8143007

NUT JAM 5/8"-11 UNC

$6.99

$

In Stock, only 3 left!

0

13

Billy Goat 381057

TINE 5/8"
(Superseded to 382244-S)

$43.99

$

In Stock, Qty 6

0

14

Billy Goat 8160002

NUTLOCK 5/16"-18 HEX ZP

$0.99

$

In Stock, Qty 5

0

15

Billy Goat 381077

CLEVIS PIN 1/4" X 3/4"

$0.99

$

Usually ships in 2-11 days

0

16

Billy Goat 8041100

SCREWCAP 1/2"-13 X 2 1/2" HCS ZP

$2.99

$

Usually ships in 2-11 days

0

17

Billy Goat 380203

PULLEY IDLER 2.75 X 1.50"

$109.99

$

Usually ships in 2-11 days

0

18

Billy Goat 8171002

WASHER 1/4" FLAT

$0.99

$

In Stock, Qty 9

0

19

Billy Goat 381111

BELLEVILLE WASHER 1/4"

$0.99

$

Usually ships in 2-11 days

0

20

Billy Goat 381112

BUTTON HEAD SCREW 1/4"-20 X 1 1/2"

$

$

Not available

21

Billy Goat 381115

STAINLESS RIVET 1/8" X 1/4"

$

$

Not available

22

Billy Goat 9201087

KEY 3/16" X 2 1/8"

$2.99

$

Usually ships in 2-11 days

0

23

Billy Goat 380227

WIRE HARNES PL HOOD SWITCH

$40.99

$

Usually ships in 2-11 days

0

24

Billy Goat 840058

SWITCH INTERLOCK

$20.99

$

Usually ships in 2-11 days

0

25

Billy Goat 8041054

SCREWCAP 3/8"-16 X 2" HCS ZP

$0.99

$

In Stock, Qty 5

0

26

Billy Goat 8041031

SCREWCAP 5/16"-18 X 1 3/4" HCS ZP

$0.99

$

In Stock, only 3 left!

0

27

Billy Goat 381147

8 TINE RETRACTOR PLATE

$135.99

$

Usually ships in 2-11 days

0

28

Billy Goat 381158

SHOULDER BOLT 5/16" X 1/4"

$3.49

$

Usually ships in 2-11 days

0

29

Billy Goat 381169

FLANGE BUSHING 5/16" ID X 7/16" OD

$9.49

$

Usually ships in 2-11 days

0

30

Billy Goat 380214

KIT KEYED TINE ROD AND CAP

$131.99

$

Usually ships in 2-11 days

0

32

Billy Goat 381177

JOURNAL BEARING 2"
(Superseded to 380213)

$21.99

$

In Stock, Qty 6

0

33

Billy Goat 8172020

FENDER WASHER 5/16"

$0.99

$

In Stock, Qty 6

0

35

Billy Goat 8041004

SCREWCAP 1/4"-20 X 1" HCS ZP

$0.99

$

In Stock, Qty 20+

0

36

Billy Goat 381237

SPHERICAL ROD END 10-32 UNF

$46.99

$

Usually ships in 2-11 days

0

37

Billy Goat 381272

BOLT EYE 1/4"-20 X 2" OPEN END

$3.99

$

Usually ships in 2-11 days

0

38

Billy Goat 381247

SHOULDER BOLT 5/16" X 3/8"

$2.99

$

Usually ships in 2-11 days

0

39

Billy Goat 8041004

SCREWCAP 1/4"-20 X 3/4" HCS ZP

$0.99

$

In Stock, Qty 20+

0

40

Billy Goat 381263

TOWBAR BRACKET KEEPER

$

$

Not available

41

Billy Goat 8041006

SCREWCAP 1/4"-20 X 1" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

42

Billy Goat 8160005

NUT LOCK 1/2"-13 UNC

$0.99

$

In Stock, only 1 left!

0

44

Billy Goat 8041009

SCREWCAP 1/4"-20 X 1 3/4" HCS ZP

$0.99

$

In Stock, only 2 left!

0

45

Billy Goat 8171006

WASHER 1/2" FLAT

$0.99

$

In Stock, Qty 7

0

46

Billy Goat 351216

PULLEY 3V GROOVE IDLER

$34.99

$

Usually ships in 2-11 days

0

47

Billy Goat 890585

PULLEY IDLER 1.13" OD X 3/8" BORE

$43.99

$

Usually ships in 2-11 days

0

48

Billy Goat 381675

PIN CLEVIS 3/16" X 3/4" ZP

$1.49

$

Usually ships in 2-11 days

0

49

Billy Goat 381089

CABLE RETRACTOR PLATE
(Superseded to 382332)

$72.99

$

Usually ships in 2-11 days

0

50

Billy Goat 381512

BUSHING 1/2" ID X 3/4" OD X 1/2"

$6.99

$

Usually ships in 2-11 days

0

51

Billy Goat 381522

8 TINE CRANKSHAFT

$1012.99

$

Usually ships in 2-11 days

0

52

Billy Goat 8197031

COTTER PIN 1/8" X 1"

$0.99

$

Usually ships in 2-11 days

0

53

Billy Goat 381611

GX200 HONDA ENGINE W/GEAR BOX

$

$

Currently unavailable

54

Billy Goat 381616

PL855 FRAME

$

$

Not available

55

Billy Goat 381617

THROTTLE HAND LEVER

$90.99

$

Usually ships in 2-11 days

0

56

Billy Goat 381618

CLUTCH HAND LEVER

$114.99

$

Usually ships in 2-11 days

0

57

Billy Goat 430141

BRACKET MOUNT SWITCH

$

$

Not available

58

Billy Goat 381621

THROTTLE LINK

$

$

Currently unavailable

59

Billy Goat 381622

THROTTLE BAR

$

$

Currently unavailable

60

Billy Goat 381623

THROTTLE LINK TAB

$

$

Currently unavailable

61

Billy Goat 381625

PREHARD ROLLER

$55.99

$

Usually ships in 2-11 days

0

62

Billy Goat 381627

TENSION IDLER MOUNT BRACKET

$

$

Not available

63

Billy Goat 380232

BRACKET BELT FINGER LOWER PL25

$49.99

$

Usually ships in 2-11 days

0

64

Billy Goat 380233

BRACKET BELT FINGER UPPER PL25

$28.99

$

Usually ships in 2-11 days

0

66

Billy Goat 381632

RETRACTOR PLATE ARM

$87.99

$

Usually ships in 2-11 days

0

67

Billy Goat 380003

ARM IDLER W/BUSHING PL2500SPH

$120.99

$

Usually ships in 2-11 days

0

68

Billy Goat 381634

CLUTCH CAM ARM

$

$

Not available

69

Billy Goat 381544

HANDLE RETRACTOR WA PL25SP

$97.99

$

Usually ships in 2-11 days

0

70

Billy Goat 381541

HANDLE WA PL25SP 12 GA

$

$

Not available

71

Billy Goat 381637

CABLE ADJUSTMENT SPOOL

$18.99

$

Usually ships in 2-11 days

0

72

Billy Goat 381638

TENSIONER CROSS BAR

$30.99

$

Usually ships in 2-11 days

0

73

Billy Goat 381651

DUAL SHAFT TRANSAXLE

$1337.99

$

Usually ships in 2-11 days

0

74

Billy Goat 381652

WHEEL 12" W/ 3/4" KEYED HUB

$123.99

$

Usually ships in 2-11 days

0

75

Billy Goat 381653

WHEEL 12" W/ 5/8" BEARING HUB

$111.99

$

Usually ships in 2-11 days

0

76

Billy Goat 381654

TRANSAXLE PULLEY 3.25 X 1/2" SPLINE

$108.99

$

Usually ships in 2-11 days

0

77

Billy Goat 381655

PUSH-PULL CABLE 55"

$188.99

$

Usually ships in 2-11 days

0

78

Billy Goat 381656

PUSH-PULL CABLE 69"

$180.99

$

Usually ships in 2-11 days

0

79

Billy Goat 381658

BELT A60

$83.99

$

Usually ships in 2-11 days

0

80

Billy Goat 8197016

COTTER PIN 3/32 X 3/4"

$0.99

$

In Stock, Qty 9

0

81

Billy Goat 380202

PULLEY ENGINE PL2500SP

$644.99

$

Usually ships in 2-11 days

0

82

Billy Goat 500281

SWITCH LKG RKR

$13.99

$

In Stock, only 1 left!

0

83

Billy Goat 381663

EXTENSION SPRING 1/2" X 3"-5"

$10.99

$

Usually ships in 2-11 days

0

84

Billy Goat 381665

FLANGE BUSHING 7/8" OD X 3/4" ID

$22.99

$

Usually ships in 2-11 days

0

85

Billy Goat 8041052

SCREWCAP 3/8"-16 X 1 1/2" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

86

Billy Goat 8041151

SCREWCAP 5/8"-11 X 4 1/2" HCS ZP

$5.49

$

In Stock, only 2 left!

0

87

Billy Goat 8041035

SCREWCAP 5/16"-18 X 2 3/4" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

88

Billy Goat 381670

CLEVIS PIN 1/4" X 1 3/8"

$3.99

$

Usually ships in 2-11 days

0

89

Billy Goat 381019

COGGED V-BELT B 35"

$39.99

$

Usually ships in 2-11 days

0

90

Billy Goat 850230

RING RETAINING "E" 3/4"

$0.99

$

Usually ships in 2-11 days

0

91

Billy Goat 850238

WASHER .765" ID X 1.25" OD X .06"

$1.49

$

In Stock, only 2 left!

0

92

Billy Goat 381674

YOKE 10-32 UNF W/CLEVIS PIN

$42.99

$

Usually ships in 2-11 days

0

93

Billy Goat 381675

CLEVIS PIN 3/16" X 3/4"

$1.49

$

Usually ships in 2-11 days

0

97

Billy Goat 381694

BUSHING 1/2" ID X 5/8" OD X 1"

$20.99

$

Usually ships in 2-11 days

0

98

Billy Goat 381695

DIE SPRING 3/4" OD X 1.5"

$

$

Not available

99

Billy Goat 381696

SCREWCAP 3/8"-16 X 6" HEX TAP BOLT GR 5 ZP

$

$

Currently unavailable

100

Billy Goat 362205

MACHINERY BUSHING 1" X 1 1/2" X 14 GA

$1.99

$

Usually ships in 2-11 days

0

101

Billy Goat 8041030

SCREWCAP 5/16"-18 X 1 1/2" GR 5 HCS ZP

$0.99

$

Usually ships in 2-11 days

0

102

Billy Goat 381707

TRANSAXLE DISENGAGE LEVER

$25.99

$

Usually ships in 2-11 days

0

103

Billy Goat 381708

DISENGAGE LOCK

$24.99

$

Usually ships in 2-11 days

0

104

Billy Goat 381709

DISENGAGE ROLLER

$24.99

$

Usually ships in 2-11 days

0

105

Billy Goat 381753

COMPRESSION SPRING 0.72 OD, 2-6"

$15.99

$

Usually ships in 2-11 days

0

106

Billy Goat 381728-WA

COVER WA PL25SP

$

$

Currently unavailable

107

Billy Goat 360316

WIRE HARNESS SC

$28.99

$

Usually ships in 2-11 days

0

108

Billy Goat 380224

RUBBER BUMPER PUSH IN

$0.99

$

Usually ships in 2-11 days

0

109

Billy Goat 8041004

SCREWCAP 1/4"-20 X 3/4" GR 5 HCS ZP

$0.99

$

In Stock, Qty 20+

0

110

Billy Goat 8048249

SHCS 3/8"-16 X 2 BLK OX

$2.49

$

Usually ships in 2-11 days

0
