PL 2500 H - Billy Goat 25" PLUGR Aerator Parts Assembly Parts Diagram

25" PLUGR Aerator

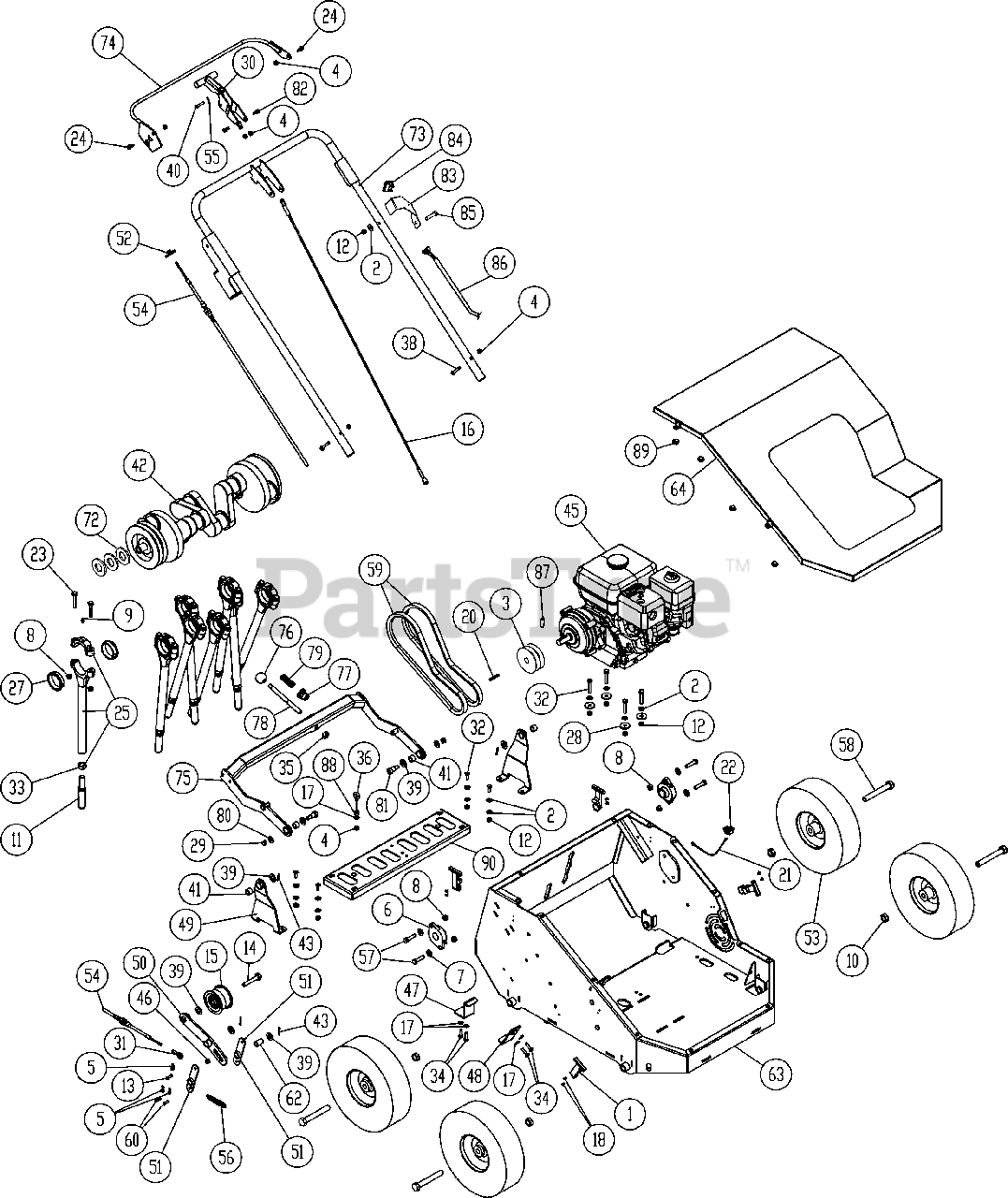

Parts Assembly Parts Diagram

  • Title

1

Billy Goat 381003-01

RUBBER LATCH KIT

$

$

Not available

2

Billy Goat 8171003

WASHER 5/16" FLAT

$0.99

$

In Stock, Qty 10

0

3

Billy Goat 380200

ENGINE PULLEY 3.5 DIA

$345.99

$

Usually ships in 2-11 days

0

4

Billy Goat 8160001

NUTLOCK 1/4"-20 HEX ZP

$0.99

$

In Stock, Qty 8

0

5

Billy Goat 371275

1/4" RUE RING

$0.99

$

Usually ships in 2-11 days

0

6

Billy Goat 381042

CARTRIDGE BEARING 1"

$29.99

$

Usually ships in 2-11 days

0

7

Billy Goat 8171004

WASHER 3/8" FLAT

$0.99

$

In Stock, Qty 5

0

8

Billy Goat 8160003

NUTLOCK 3/8"-16 HEX

$0.99

$

In Stock, Qty 6

0

9

Billy Goat 381052

GREASE FITTING 1/4"-28
(Superseded to 610363)

$0.99

$

Usually ships in 2-11 days

0

10

Billy Goat 381110

NUT JAM 5/8"-11 2 WAY LOCKNUT ZP
(Superseded to 8143007)

$6.99

$

In Stock, only 3 left!

0

11

Billy Goat 381057

TINE 5/8"
(Superseded to 382244-S)

$43.99

$

In Stock, Qty 6

0

12

Billy Goat 8160002

NUTLOCK 5/16"-18 HEX ZP

$0.99

$

In Stock, only 4 left!

0

13

Billy Goat 381077

CLEVIS PIN 1/4" X 3/4"

$0.99

$

Usually ships in 2-11 days

0

14

Billy Goat 8041098

SCREWCAP 1/2"-13 X 2 GR5 ZP

$1.49

$

Usually ships in 2-11 days

0

15

Billy Goat 380203

IDLER PULLEY 2.75 X 1.50 DIA

$109.99

$

Usually ships in 2-11 days

0

16

Billy Goat 381089

RETRACTER PLATE CABLE
(Superseded to 382332)

$72.99

$

Usually ships in 2-11 days

0

17

Billy Goat 8171002

WASHER 1/4" FLAT

$0.99

$

In Stock, Qty 10

0

18

Billy Goat 381115

STAINLESS RIVET 1/8" X 1/4"

$

$

Not available

20

Billy Goat 9201087

KEY 3/16" X 2 1/8"

$2.99

$

In Stock, only 2 left!

0

21

Billy Goat 380227

WIRE HARNESS PL HOOD SWITCH

$40.99

$

Usually ships in 2-11 days

0

22

Billy Goat 840058

SWITCH INTERLOCK

$20.99

$

Usually ships in 2-11 days

0

23

Billy Goat 8048249

SHCS 3/8"-16 X 2" BLK OX

$2.49

$

Usually ships in 2-11 days

0

24

Billy Goat 381247

SHOULDER BOLT 5/16" X 3/8"

$2.99

$

Usually ships in 2-11 days

0

25

Billy Goat 380214

KIT KEYED TINE ROD AND CAP

$131.99

$

In Stock, only 2 left!

0

27

Billy Goat 380213

JOURNAL BEARING 2"

$21.99

$

In Stock, Qty 6

0

28

Billy Goat 8172020

FENDER WASHER 5/16"

$0.99

$

In Stock, only 4 left!

0

29

Billy Goat 8142006

LOCK NUT 3/8"-16 HEX

$0.99

$

Usually ships in 2-11 days

0

30

Billy Goat 381201

RETRACTOR HANDLE

$127.99

$

In Stock, only 1 left!

0

31

Billy Goat 381237

SPHERICAL ROD END 10-32 UNF

$46.99

$

Usually ships in 2-11 days

0

32

Billy Goat 8041031

SCREWCAP 5/16"-18 X 1 3/4" HCS ZP

$0.99

$

In Stock, only 3 left!

0

33

Billy Goat 8143007

NUT JAM 5/8"-11 ZP

$6.99

$

In Stock, only 3 left!

0

34

Billy Goat 8041004

SCREWCAP 1/4"-20 X 3/4" GR 5 HCS ZP

$0.99

$

Usually ships in 2-11 days

0

35

Billy Goat 8160005

NUTLOCK 1/2"-13 HEX ZP

$0.99

$

In Stock, only 1 left!

0

36

Billy Goat 381272

EYEBOLT 1/4"-20

$3.99

$

Usually ships in 2-11 days

0

38

Billy Goat 8041009

SCREWCAP 1/4"-20 X 1 3/4" HCS ZP

$0.99

$

In Stock, only 2 left!

0

39

Billy Goat 8171006

WASHER 1/2" FLAT

$0.99

$

In Stock, Qty 5

0

40

Billy Goat 381345

CLEVIS PIN 1/4" X 1 1/8"

$2.99

$

Usually ships in 2-11 days

0

41

Billy Goat 381512

BUSHING 1/2" ID X 3/4" OD X 1/2"

$6.99

$

Usually ships in 2-11 days

0

42

Billy Goat 381522

8 TINE CRANKSHAFT

$1012.99

$

Usually ships in 2-11 days

0

43

Billy Goat 8197031

COTTER PIN 1/8" X 1"

$0.99

$

Usually ships in 2-11 days

0

45

Billy Goat 360126

GX160 HONDA ENGINE W/GEARBOX

$

$

Currently unavailable

46

Billy Goat 381625

PREHARD ROLLER

$55.99

$

Usually ships in 2-11 days

0

47

Billy Goat 380232

BRACKET BELT FINGER LOWER PL25

$49.99

$

Usually ships in 2-11 days

0

48

Billy Goat 380233

BRACKET BELT FINGER UPPER PL25

$28.99

$

Usually ships in 2-11 days

0

49

Billy Goat 381632

RETRACTOR PLATE ARM

$87.99

$

Usually ships in 2-11 days

0

50

Billy Goat 380004

ARM IDLER W/BUSHINGS PL2500SPH

$255.99

$

Usually ships in 2-11 days

0

51

Billy Goat 381634

CLUTCH CAM ARM

$

$

Not available

52

Billy Goat 381637

CABLE ADJUSTMENT SPOOL

$18.99

$

Usually ships in 2-11 days

0

53

Billy Goat 381768

WHEEL 12" W 5/8" BEARING HUB
(Superseded to 382606)

$244.99

$

Usually ships in 2-11 days

0

54

Billy Goat 381655

PUSH PULL CABLE 55"

$188.99

$

Usually ships in 2-11 days

0

55

Billy Goat 8197016

COTTER PIN 3/32 X 3/4"

$0.99

$

In Stock, Qty 9

0

56

Billy Goat 381663

EXTENSION SPRING 1/2" X 3" - 5"

$10.99

$

Usually ships in 2-11 days

0

57

Billy Goat 8041052

SCREWCAP 3/8"-16 X 1 1/2" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

58

Billy Goat 8041151

SCREWCAP 5/8"-11 X 4 1/2" HCS ZP

$5.49

$

In Stock, only 2 left!

0

59

Billy Goat 381019

COGGED V BELT B 35"

$39.99

$

In Stock, only 2 left!

0

60

Billy Goat 381675

CLEVIS PIN 3/16" X 3/4"

$1.49

$

Usually ships in 2-11 days

0

62

Billy Goat 381694

BUSHING 1/2" UD X 5/8" OD X 1"

$20.99

$

Usually ships in 2-11 days

0

63

Billy Goat 381711

800 SERIES FRAME

$1131.99

$

Usually ships in 2-11 days

0

64

Billy Goat 381712-WA

COVER WA PL2500SP

$

$

Currently unavailable

72

Billy Goat 362205

MACHINERY BUSHING 1" X 1 1/2 X 14 GA

$1.99

$

In Stock, only 1 left!

0

73

Billy Goat 381542

HANDLE WA PL25 12 GA

$

$

Currently unavailable

74

Billy Goat 381723

800 SERIES CLUTCH LEVER

$96.99

$

Usually ships in 2-11 days

0

75

Billy Goat 381747

ADJUSTABLE RETRACTOR YOKE

$

$

Not available

76

Billy Goat 381748

PHENOLIC BALL KNOB

$23.99

$

Usually ships in 2-11 days

0

77

Billy Goat 381750

ADJUSTABLE RETRACTOR LOCK PLUG

$60.99

$

Usually ships in 2-11 days

0

78

Billy Goat 381751

RETRACTOR ADJUSTMENT LEVER

$65.99

$

Usually ships in 2-11 days

0

79

Billy Goat 381753

SPRING .72 X 2" -.6"

$15.99

$

Usually ships in 2-11 days

0

80

Billy Goat 381757

WASHER 5/16" USS THRU-HARDENED ZINC YELLOW

$0.99

$

Usually ships in 2-11 days

0

81

Billy Goat 381758

SHOULDER BOLT 1/2" X 5/8"

$4.49

$

Usually ships in 2-11 days

0

82

Billy Goat 381158

SHOULDER BOLT 5/16" X 1/4"

$3.49

$

Usually ships in 2-11 days

0

83

Billy Goat 500281

SWITCH LKG RKR

$13.99

$

In Stock, only 1 left!

0

84

Billy Goat 430141

BRACKET MOUNT SWITCH

$

$

Not available

85

Billy Goat 8041030

SCREWCAP 5/16"-18 X 1 1/2" GR 5 HCS ZP

$0.99

$

Usually ships in 2-11 days

0

86

Billy Goat 360316

HARNESS WIRE 60"

$28.99

$

Usually ships in 2-11 days

0

87

Billy Goat 380218

SCREW SET 3/8"-16 X 3/4" CUP POINT TORQUE TO 22-24 FT-LBS.

$0.99

$

Usually ships in 2-11 days

0

88

Billy Goat 381625

ROLLER 0.5" OD X 0.25 ID X 0.313

$55.99

$

Usually ships in 2-11 days

0

89

Billy Goat 380224

RUBBER BUMPER PUSH IN

$0.99

$

Usually ships in 2-11 days

0

90

Billy Goat 381147

8 TINE RETRACTOR PLATE

$135.99

$

Usually ships in 2-11 days

0
