PL 1802 V - Billy Goat 18" PLUGR Aerator Parts Assembly B Parts Diagram

18" PLUGR Aerator

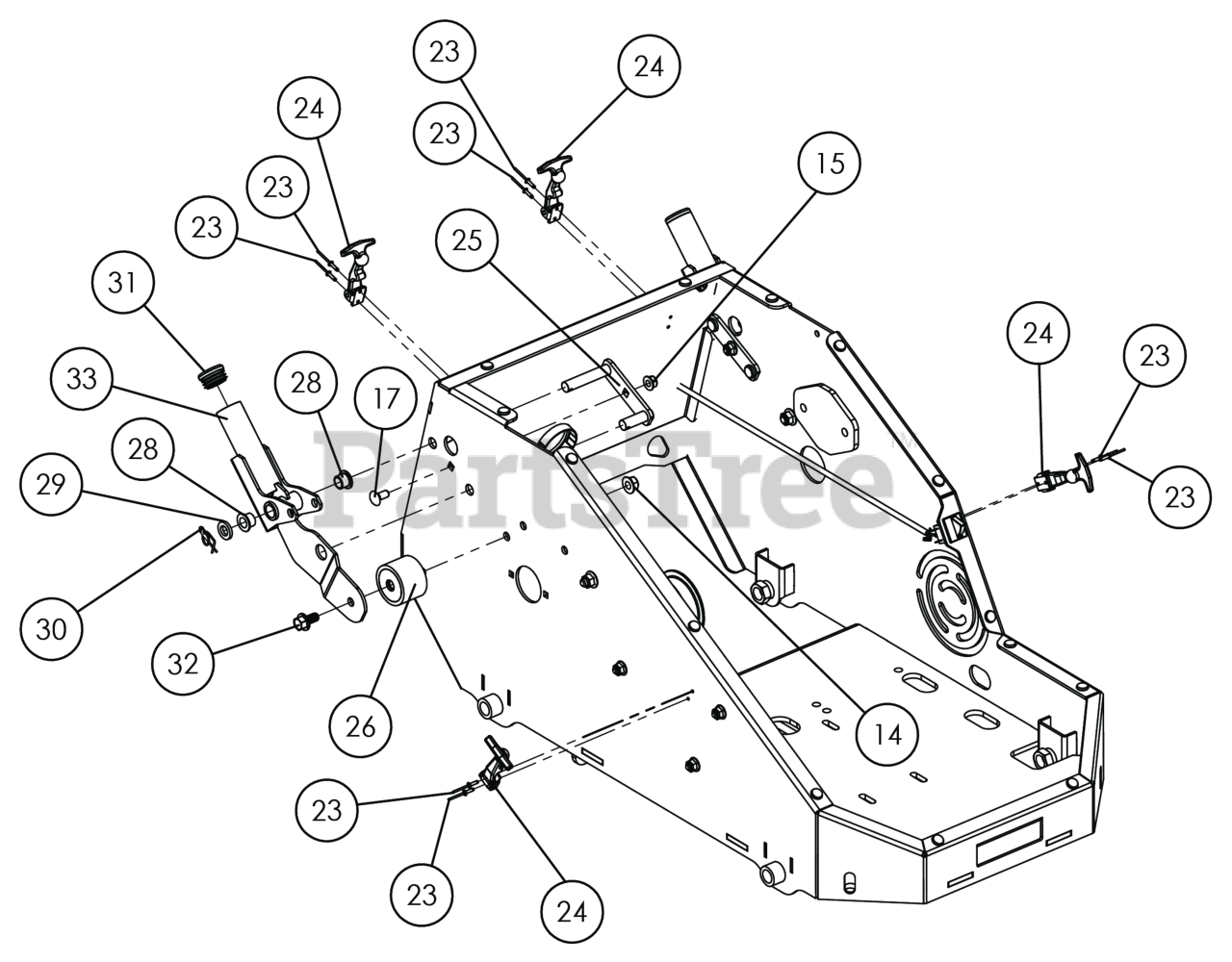

Parts Assembly B Parts Diagram

  • Title

14

Billy Goat 8165003

NUT-HEX-NYLK, FLG .375"-16 ZP

$0.99

$

Usually ships in 2-11 days

0

15

Billy Goat 8165002

NUT-HEX-NYLK, FLG .3125-18 ZP

$0.99

$

In Stock, only 1 left!

0

17

Billy Goat 8024039

BOLT CARRIAGE 5/16"-18 X 3/4" ZP

$0.99

$

In Stock, Qty 9

0

23

Billy Goat 381115

STAINLESS RIVET, 1/8 DIA X 1/4

$

$

Not available

24

Billy Goat 381003

SEE: LATCH DRAW RUBBER 381003-01 & LATCH CLEAT 381003-02

$

$

Not available

25

Billy Goat 382134

WA, ISO MOUNT

$35.99

$

Usually ships in 2-11 days

0

26

Billy Goat 373257

ISOLATOR, VIBRATION HANDLE SC181H

$24.99

$

Usually ships in 2-11 days

0

28

Billy Goat 362254

BUSHING .500" ID

$

$

Not available

29

Billy Goat 382277

WSHR-STL,FLT .500"X.875"X.134" MAB ZP

$0.99

$

Usually ships in 2-11 days

0

30

Billy Goat 382336

RING, RUE .500"

$1.99

$

Usually ships in 2-11 days

0

31

Billy Goat 791056

PLUG TUBE INSERT 1.25" O.D.

$

$

Not available

32

Billy Goat 791080

SER HEX WASHER 3/8" - 16

$1.49

$

In Stock, Qty 6

0

33

Billy Goat 382135-S

WA, REVOLVER RH

$198.99

$

Usually ships in 2-11 days

0
