PL 1802 V - Billy Goat 18" PLUGR Aerator Parts Assembly A Parts Diagram

18" PLUGR Aerator

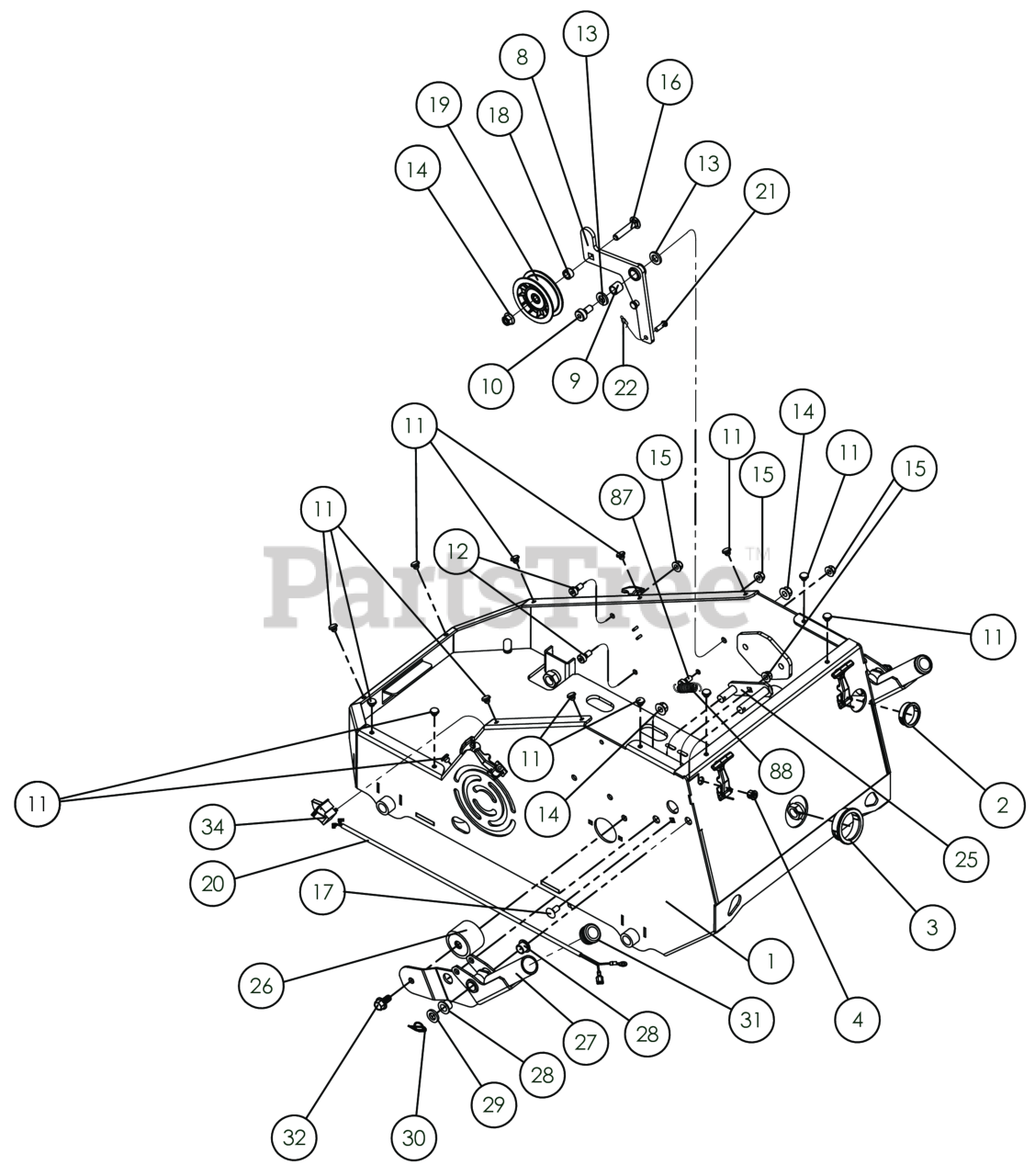

Parts Assembly A Parts Diagram

  • Title
1

Billy Goat 382130-S

WA, PL1801 FRAME

$1111.99

$

Usually ships in 2-11 days

0

2

Billy Goat 382240

BUSHING, SNAP 1.31" ID

$1.99

$

Usually ships in 2-11 days

0

3

Billy Goat 382292

BUSHING, SNAP 1.81" ID

$1.99

$

Usually ships in 2-11 days

0

4

Billy Goat 373308

BUSHING, SPLIT 0.350" NYLON BLACK

$1.49

$

Usually ships in 2-11 days

0

8

Billy Goat 382133

WA, IDLER ARM PL18

$

$

Currently unavailable

9

Billy Goat 382312

BRG, SLEEVE Ø.500" X Ø.625" X .625"

$4.49

$

Usually ships in 2-11 days

0

10

Billy Goat 382259

BLT-SLDR,SH.500"X1.00",.375"-16X.63"G-8ZP

$5.99

$

Usually ships in 2-11 days

0

11

Billy Goat 380224

RUBBER BUMPER PUSH IN

$0.99

$

Usually ships in 2-11 days

0

12

Billy Goat 382322

BLT-SLDR,SH.375"X2.25",.313"-18X.50"G-8ZP

$10.99

$

Usually ships in 2-11 days

0

13

Billy Goat 382258

WSHR-NYL, FLT, .500" X .875" X .125"

$2.99

$

Usually ships in 2-11 days

0

14

Billy Goat 8165003

NUT-HEX-NYLK, FLG .375"-16 ZP

$0.99

$

Usually ships in 2-11 days

0

15

Billy Goat 8165002

NUT-HEX-NYLK, FLG .3125-18 ZP

$0.99

$

In Stock, only 3 left!

0

16

Billy Goat 8024062

BOLT CARRIAGE 3/8"-16 X 2" ZP

$1.49

$

Usually ships in 2-11 days

0

17

Billy Goat 8024039

BOLT CARRIAGE 5/16"-18 X 3/4" ZP

$0.99

$

In Stock, Qty 10

0

18

Billy Goat 440228

TUBE SPACER 0.625" OD X 0.357" LONG

$6.99

$

Usually ships in 2-11 days

0

19

Billy Goat 350114

PULLEY IDLER 2.75" OD X 3/8" BORE

$41.99

$

In Stock, only 1 left!

0

20

Billy Goat 380227

WIRE HARNESS PL HOOD SWITCH

$40.99

$

Usually ships in 2-11 days

0

21

Billy Goat 381077

CLEVIS PIN, 1/4 X 3/4

$0.99

$

Usually ships in 2-11 days

0

22

Billy Goat 371275

1/4" RUE RING

$0.99

$

Usually ships in 2-11 days

0

25

Billy Goat 382134

WA, ISO MOUNT

$35.99

$

Usually ships in 2-11 days

0

26

Billy Goat 373257

ISOLATOR, VIBRATION HANDLE SC181H

$24.99

$

Usually ships in 2-11 days

0

27

Billy Goat 382136-S

WA, REVOLVER LH

$198.99

$

Usually ships in 2-11 days

0

28

Billy Goat 362254

BUSHING .500" ID

$

$

Not available

29

Billy Goat 382277

WSHR-STL,FLT .500"X.875"X.134" MAB ZP

$0.99

$

Usually ships in 2-11 days

0

30

Billy Goat 382336

RING, RUE .500"

$1.99

$

Usually ships in 2-11 days

0

31

Billy Goat 791056

PLUG TUBE INSERT 1.25" O.D.

$

$

Not available

32

Billy Goat 791080

SER HEX WASHER 3/8" - 16

$1.49

$

In Stock, Qty 6

0

34

Billy Goat 840058

SWITCH INTERLOCK

$20.99

$

Usually ships in 2-11 days

0

87

Billy Goat 360152

BOLT SHOULDER 3/8 X 1"

$2.99

$

Usually ships in 2-11 days

0

88

Billy Goat 351275

SPRING IDLER UPPER OS900SP

$11.99

$

In Stock, only 3 left!

0
