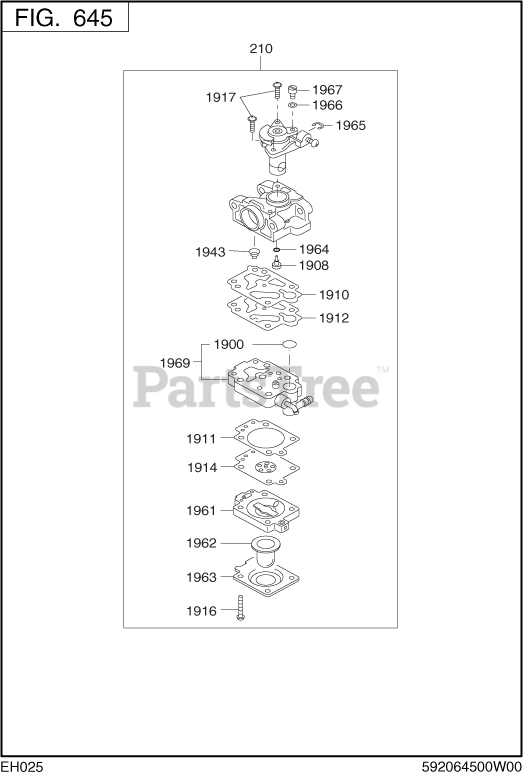

PKV110 (PKV10100410) - Subaru Robin Pump 645 Fuel & Lubricant Parts Diagram

Pump

645 Fuel & Lubricant Parts Diagram

  • Title
210

$352.99

$

Usually ships in 2-12 days

0

1900

Subaru Robin 352010-6

SCREEN-INLET

$

$

Currently unavailable

1908

592-60070-11

JET

$

$

Not available

1910

Subaru Robin 442155-9

GASKET-PUMP

$16.99

$

In Stock, only 1 left!

0

1911

Subaru Robin 442154-1

METERING DIAPRAGM GASKET

$12.99

$

Usually ships in 2-12 days

0

1912

Subaru Robin 168575-6

PUMP DIAPHRAGM

$17.99

$

In Stock, only 1 left!

0

1914

168574-8

METERING DIAPHRAGM

$

$

Not available

1916

266582-4

TAPPING SCREW

Note: 3X24

$

$

Not available

1917

266581-6

PAN HEAD SCREW

Note: M3X8

$

$

Not available

1943

Subaru Robin 234183-6

CONICAL COMPRESSION

$

$

Currently unavailable

1950

Subaru Robin 592-60020-10

VALVE AY- THROTTLE

$85.51

$

Usually ships in 2-12 days

0

1955

424439-7

PLUG

$

$

Not available

1961

140438-8

BODY AY-AIR PURGE

$

$

Not available

1962

Subaru Robin 424314-7

PRIMER PUMP

$

$

Not available

1963

Subaru Robin 346270-0

COVER,PRIMER PUMP

$19.99

$

Usually ships in 2-12 days

0

1964

213538-8

O-RING 2

$

$

Not available

1965

257964-1

STOP RING E-3

$

$

Not available

1966

413140-9

WASHER

$

$

Not available

1967

325922-6

SWIVEL

$

$

Not available

1969

140437-0

BODY AY,PUMP

$

$

Not available
