PK GTH 2554 (960220001-01) - Poulan Pro Garden Tractor (2005) Mower Deck Parts Diagram

Lawn Tractor

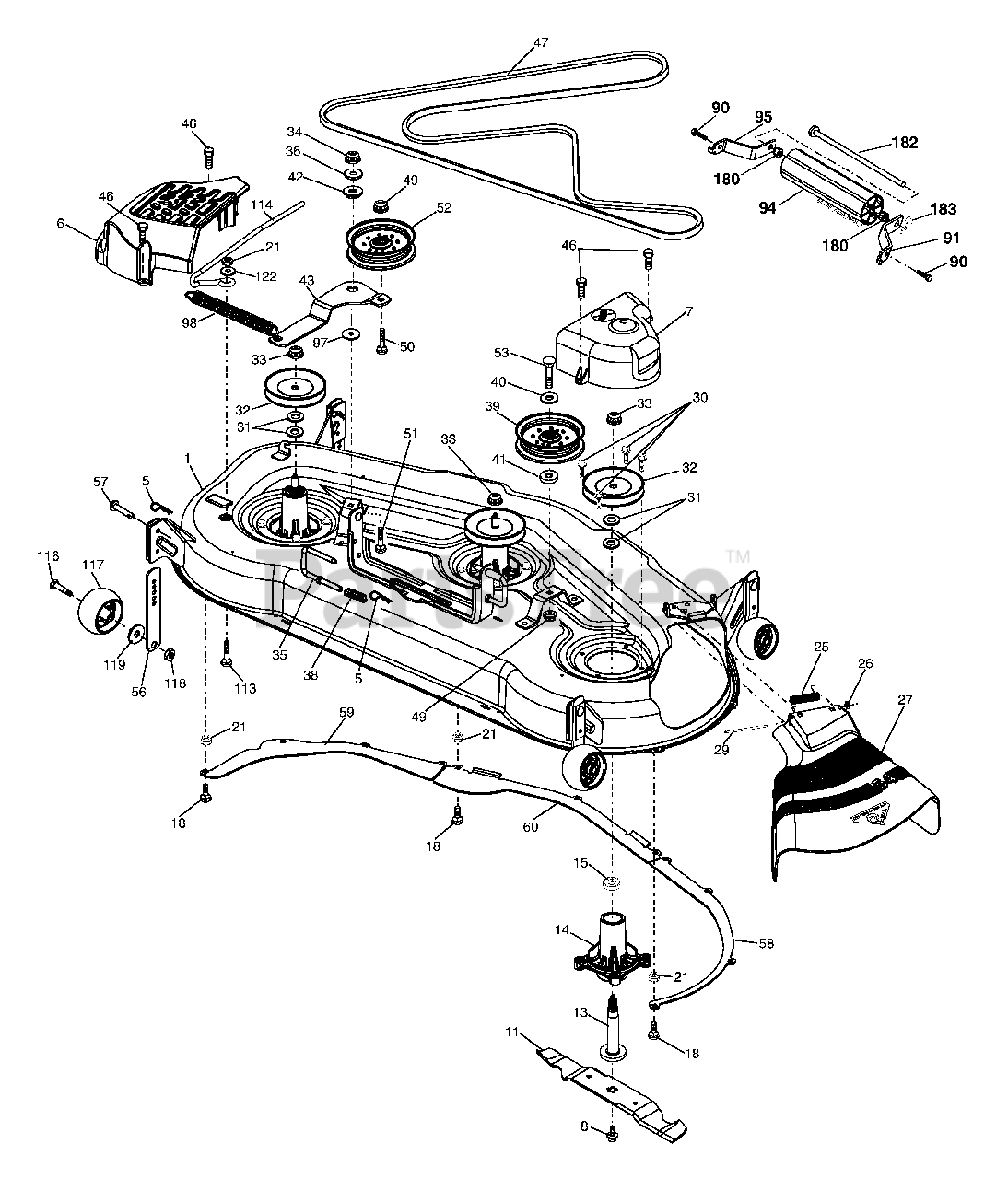

Mower Deck Parts Diagram

  • Title

1

Electrolux/AYP 194846X421

Deck Weldment Mower

$220.99

$

Usually ships in 3-10 days

0

5

Murray 4939M

Retainer Spring

$

$

Not available

6

Electrolux/AYP 187297

Cover Mandrel LH
(Superseded to 532187297)

$37.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 188187

Cover Mandrel RH
(Superseded to 532188187)

$37.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 174365

Bolt 7/16 Asm. Blade
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 187254

Blade, Standard
(Superseded to 594892901)

Note: (For mulching mowers only)

$22.99

$

In Stock, Qty 19

0

13

Electrolux/AYP 187291

Shaft Asm. w/Lower Bearing
(Superseded to 597023501)

$28.99

$

In Stock, Qty 7

0

14

Electrolux/AYP 187281

Housing, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 14

0

17

Electrolux/AYP 72140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

21

Murray 73680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 178102

Spring, Torsion
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 187257X428

Deflector Shield
(Superseded to 532187257)

$80.99

$

In Stock, Qty 8

0

29

Electrolux/AYP 131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 173984

Screw, Thdroll Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 187690

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Electrolux/AYP 173436

Pulley, Mandrel
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 178342

Nut, Flg. Top Lock Cntr. 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Electrolux/AYP 73680600

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 188635

Pin Suspension Rear
(Superseded to 532188635)

$26.99

$

In Stock, only 2 left!

0

36

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 188657

Spring Compression
(Superseded to 532188657)

$6.49

$

In Stock, only 2 left!

0

39

Electrolux/AYP 187284

Pulley, Idler, Stationary
(Superseded to 532187284)

$56.99

$

In Stock, Qty 6

0

40

Electrolux/AYP 19131312

Washer 13/32 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

41

Electrolux/AYP 19132203

Washer 13/32 x 1-3/8 x 3 Ga.
(Superseded to 819132203)

$6.49

$

In Stock, only 3 left!

0

42

Electrolux/AYP 122052X

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 196216

Arm, Idler
(Superseded to 532196216)

$157.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 137729

Screw, Thdroll. 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

47

Electrolux/AYP 191273

V-Belt, Mower, Secondary
(Superseded to 584451901)

$91.99

$

In Stock, only 3 left!

0

49

Murray 73900600

Nut, Lock Flg. 3/8-16 unc

$

$

Not available

50

Electrolux/AYP 72110616

Bolt, Carr. 3/8-16 x 2
(Superseded to 872110616)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 72110610

Bolt
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 188460

Pulley Idler Clutching
(Superseded to 532188460)

$

$

Not available

53

Electrolux/AYP 74780636

Bolt Hex 3/8-16 unc x 2-1/4
(Superseded to 596564404)

$3.99

$

In Stock, only 2 left!

0

56

Electrolux/AYP 155986

Bar Pnt Adj.

$

$

Not available

57

Electrolux/AYP 156941

Pin Head Rivet
(Superseded to 532156941)

$

$

Not available

58

Electrolux/AYP 187342

Baffle Right
(Superseded to 532187342)

$12.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 187344

Baffle Left
(Superseded to 532187344)

$

$

Not available

60

Electrolux/AYP 187607

Baffle Center
(Superseded to 532187607)

$

$

Not available

90

Electrolux/AYP 74760516

Bolt 5/16-18 x 1

$

$

Not available

91

Electrolux/AYP 180535

Bracket Asm N Roller RH
(Superseded to 532180535)

$

$

Not available

94

Electrolux/AYP 176066

Roller Nose 48"
(Superseded to 532176066)

$13.99

$

In Stock, Qty 19

0

95

Electrolux/AYP 180534

Bracket Asm N Roller LH
(Superseded to 532180534)

$4.99

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 19133210

Washer Hardened
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

98

Electrolux/AYP 187282

Spring Clutch Drive
(Superseded to 532187282)

$

$

Not available

113

Electrolux/AYP 72110508

Bolt Rdhd Sqnk 5/16-18 x 3/4
(Superseded to 872110508)

$4.99

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 187556

Rod Tension Relief
(Superseded to 532187556)

$24.99

$

In Stock, only 1 left!

0

116

Electrolux/AYP 193406

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Electrolux/AYP 174873

Gauge Wheel
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

118

Electrolux/AYP 73930600

Nut, Centerlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 187557

Bushing Tension Relief
(Superseded to 532187557)

$9.49

$

In Stock, only 1 left!

0

180

Electrolux/AYP 73800500

Nut 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

182

Electrolux/AYP 179127

Rod Roller Nose Narrow
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

183

Electrolux/AYP 163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

Electrolux/AYP 187292

Mandrel Asm. Service
(Superseded to 587820301)

Note: (Includes Key Nos. 13-15 and 33)

$56.99

$

In Stock, Qty 16

0

Electrolux/AYP 196101

Replacement Mower, Complete
(Superseded to 583231101)

Note: (Std. Deck-Order separately nose roller components key nos. 90, 91, 94, 95, 180, 182, 183)

$

$

Not available
