PK 19H42 LT (960120048-00) - Poulan Pro Lawn Tractor (2006) Engine Parts Diagram

Lawn Tractor

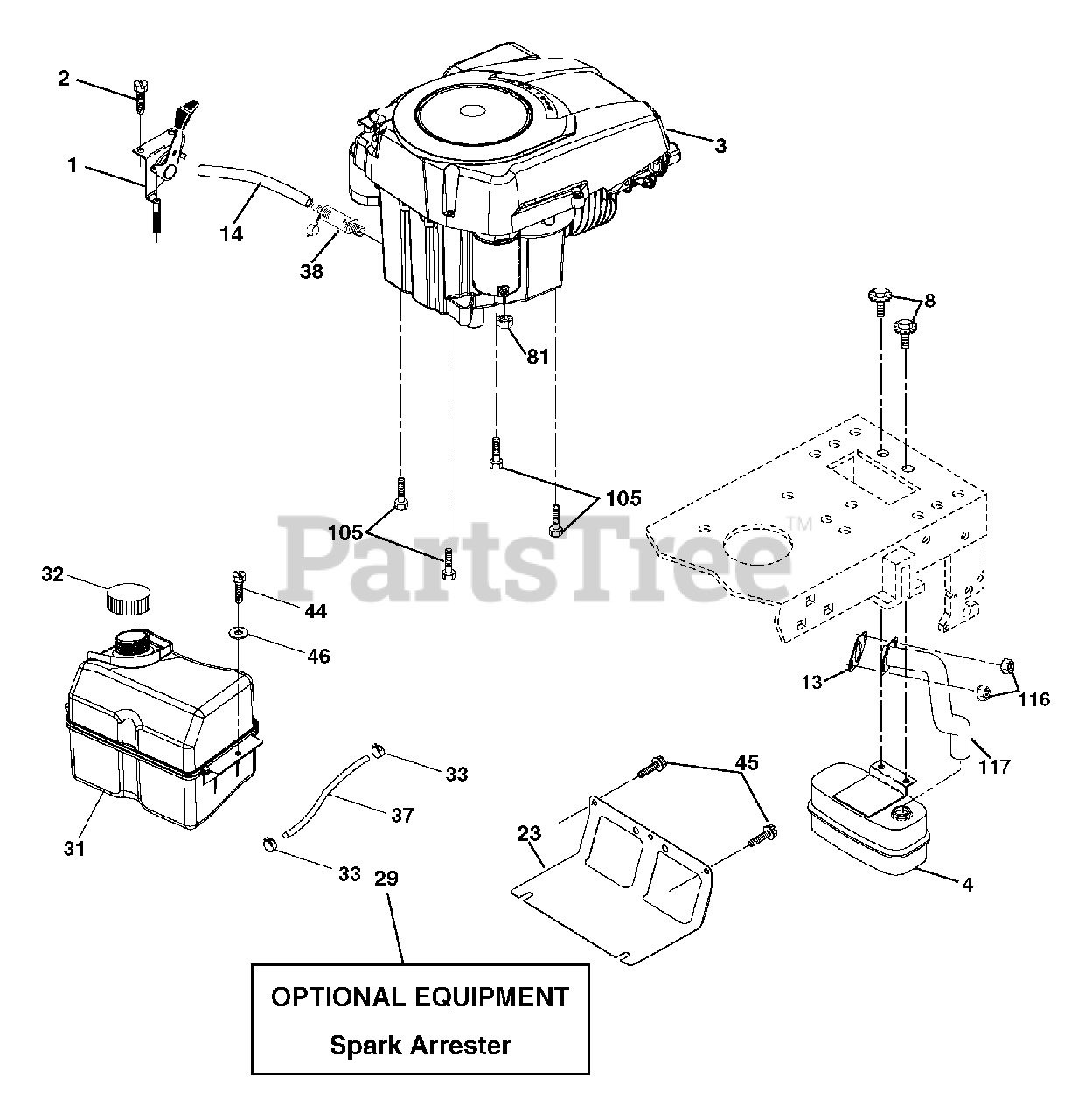

Engine Parts Diagram

  • Title
1

Electrolux/AYP 170805

Control, Throttle
(Superseded to 532170805)

$

$

Not available

2

Electrolux/AYP 17720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

3

Engine Kohler Model SV590

Note: (Order Parts from Engine Mfg.)

$

$

Not available

4

Electrolux/AYP 188655

Muffler
(Superseded to 532188655)

$45.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 171877

Bolt 5/16-18 unc x 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 6

0

13

Electrolux/AYP 185909

Muffler Gasket
(Superseded to 532185909)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 148456

Tube Oil Drain
(Superseded to 532148456)

$6.99

$

In Stock, Qty 6

0

23

Electrolux/AYP 169837

Shield, Browning/Debris Guard
(Superseded to 532169837)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

Arrester, Spark
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 185534

Tank, Fuel
(Superseded to 581289901)

$87.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 140527

Cap, Fuel
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

Clamp, Hose Blk
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

37

Electrolux/AYP 401137

Line, Fuel
(Superseded to 532401137)

$14.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 181654

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

44

Electrolux/AYP 17670412

Screw Hex Wsh Thdrol 1/4-20 x 3/4
(Superseded to 817670412)

$6.49

$

In Stock, only 2 left!

0

45

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

46

Electrolux/AYP 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

81

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

105

Electrolux/AYP 17120616

Screw 3/8-16 x 1 Smgml Tap/R
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

116

Electrolux/AYP 184362

Nut Hex Flange Toplock M8-1.25
(Superseded to 532184362)

$6.49

$

In Stock, only 1 left!

0

117

Electrolux/AYP 188654

Tube Exhaust
(Superseded to 532188654)

$34.99

$

In Stock, only 1 left!

0
