PK 19H42 LT (960120016-02) - Poulan Pro Lawn Tractor (2005) Electrical Parts Diagram

Lawn Tractor

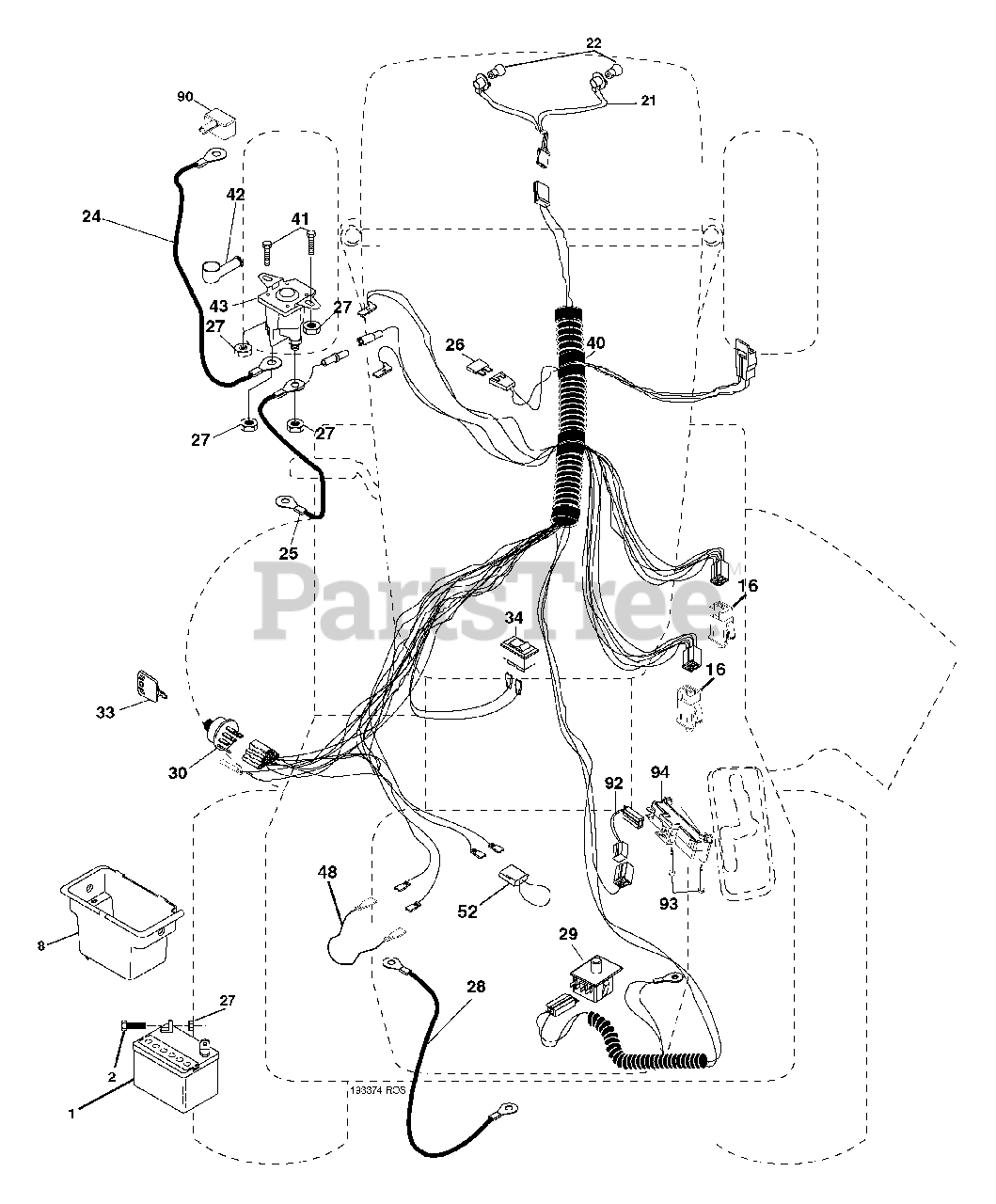

Electrical Parts Diagram

  • Title

1

Electrolux/AYP 144927

Battery
(Superseded to 532144927)

$

$

Not available

2

Electrolux/AYP 74760412

Bolt Hex Hd 1/4-20 unc x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 176689

Box Battery
(Superseded to 532176689)

$

$

Not available

16

Electrolux/AYP 176138

Switch Interlock
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

21

Electrolux/AYP 183759

Harness Socket Light
(Superseded to 532183759)

$47.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 4152J

Bulb, Light # 1156
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 4799J

Cable Battery
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 146147

Cable Battery 6 Ga. Red w/16 wire 44"
(Superseded to 532146147)

$34.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 175158

Fuse
(Superseded to 532175158)

$7.49

$

In Stock, only 1 left!

0

27

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 4207J

Cable Ground 12" Blk 6 Ga.
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 192749

Switch Seat
(Superseded to 532192749)

$21.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 193350

Switch Ign
(Superseded to 532193350)

$22.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 140401

Key Ign Molded Generic
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

34

Electrolux/AYP 110712X

Switch Light/Reset
(Superseded to 532110712)

$9.49

$

In Stock, only 4 left!

0

40

Electrolux/AYP 193374

Harness Ign
(Superseded to 583208801)

$

$

Not available

41

Electrolux/AYP 71110408

Bolt Fin Hex 1/4-20 unc x 1/2
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 178861

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 140844

Adapter Ammeter
(Superseded to 532140844)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 141940

Protection Loop
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 180449

Cover Terminal

$2.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 193465

Harness Pigtail Reverse Switch
(Superseded to 532193465)

$15.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 192540

Screw Plastite 10-1/4 x 2.0
(Superseded to 532192540)

$4.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 191834

Module Reverse ROS
(Superseded to 532191834)

$37.99

$

Usually ships in 3-10 days

0
