PK 1942 YT (960120017-00) - Poulan Pro Lawn Tractor (2005) Chassis Parts Diagram

Lawn Tractor

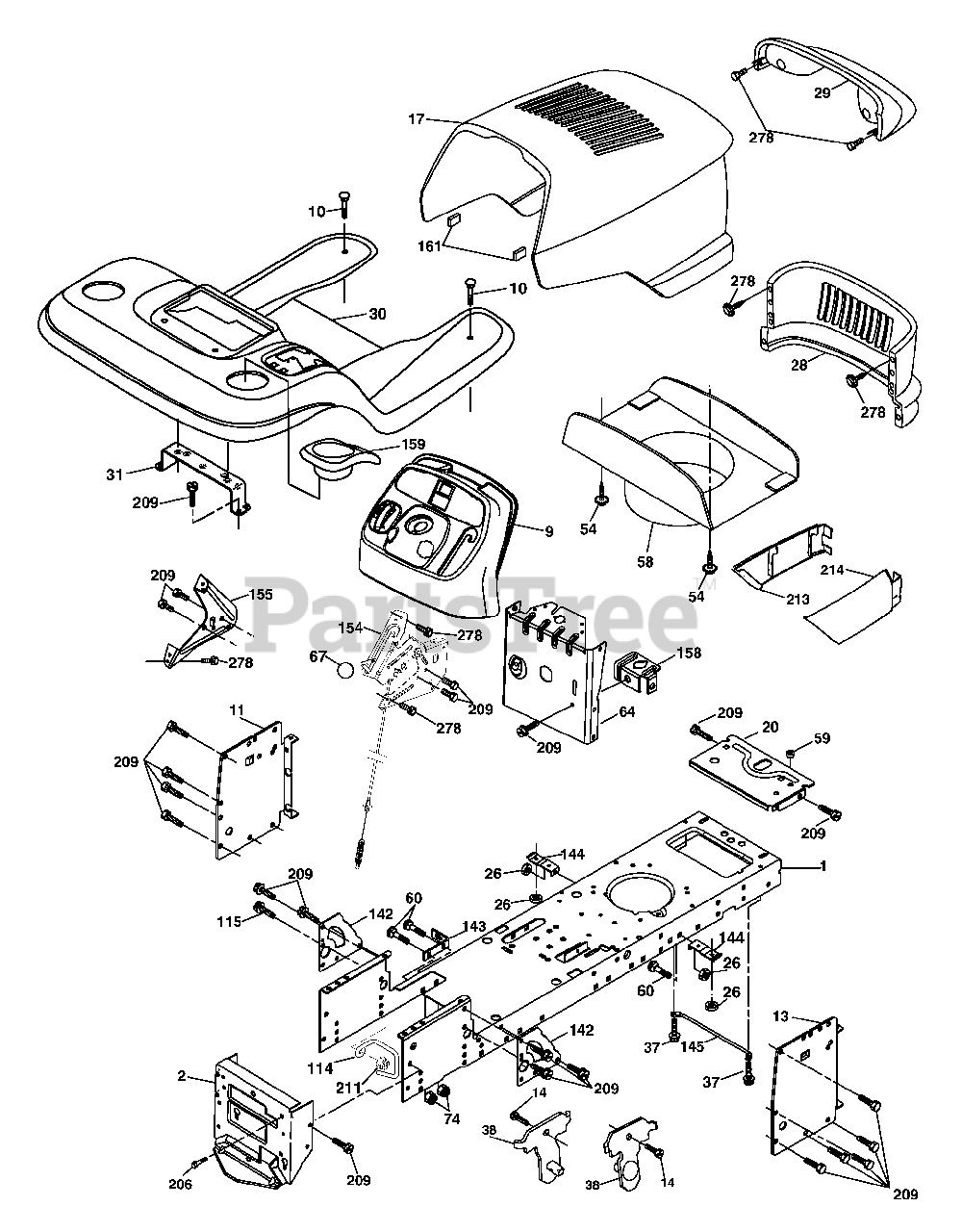

Chassis Parts Diagram

  • Title
1

Electrolux/AYP 174619

Chassis
(Superseded to 532174619)

$433.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 176554

Drawbar
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

$22.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

Bolt Carriage 3/8-16 x 1

$

$

Not available

11

Electrolux/AYP 167203

Panel Dash Lh
(Superseded to 532167203)

$24.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 188702X010

Panel Dash Rh
(Superseded to 532194975)

$27.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 175260X428

Hood
(Superseded to 584463701)

$

$

Not available

20

$

$

Not available

26

Electrolux/AYP 73800600

Nut Lock Hex W/Ins 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 175289X428

Grille
(Superseded to 532187114)

$

$

Not available

29

Electrolux/AYP 161840

Lens Bar
(Superseded to 583125001)

$

$

Not available

$114.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 139976

Bracket Fender
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 175710

Bracket Asm Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 192512

Screw WSHD Hex 10-32 x 5/8
(Superseded to 532192512)

$5.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 175351

Duct Air
(Superseded to 532175351)

$40.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 187495

Bushing 1.375 OD
(Superseded to 532187495)

$6.49

$

In Stock, only 1 left!

0

60

Electrolux/AYP 72140606

Bolt RDHD SQNK 3/8-16 UNC x 3/4
(Superseded to 872140606)

$

$

Not available

64

Electrolux/AYP 174997

Dash Lower STLT
(Superseded to 532174997)

$30.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 149846

Knob
(Superseded to 532149846)

$13.99

$

In Stock, only 1 left!

0

74

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 158112

Keeper Belt Rear LH
(Superseded to 532158112)

$8.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 17490620

Screw THDROL 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

142

Electrolux/AYP 175702

Plate Reinforcement STLT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 186689

Bracket Swaybar Chassis
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Electrolux/AYP 175582

Bracket Footrest Step-Thru
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

154

Electrolux/AYP 192413

Clutch Asm Manual Brkt.
(Superseded to 583203201)

$

$

Not available

155

Electrolux/AYP 183926

Bracket Dash LH
(Superseded to 583130001)

$14.99

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 162037

Bracket Parking Brake
(Superseded to 532162037)

$

$

Not available

159

Electrolux/AYP 155123X428

Cupholder
(Superseded to 532155123)

$

$

Not available

161

Electrolux/AYP 164655

Bumper Hood
(Superseded to 532164655)

$8.99

$

Usually ships in 3-10 days

0

206

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, only 3 left!

0

209

Electrolux/AYP 17000612

Screw Hexwsh Thdr 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

211

Murray 145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

213

Electrolux/AYP 169847X428

Skirt Grille RH
(Superseded to 532187111)

$39.99

$

Usually ships in 3-10 days

0

214

Electrolux/AYP 169848X428

Skirt Grille LH
(Superseded to 532187112)

$

$

Not available

258

Electrolux/AYP 183835X599

Lens Grille Pro RH
(Superseded to 183835599)

$14.99

$

Usually ships in 3-10 days

0

259

Electrolux/AYP 183834X599

Lens Grille Pro LH
(Superseded to 183834599)

$

$

Not available

261

$

$

Not available

263

Electrolux/AYP 183833

Bezel Grille RH
(Superseded to 532183833)

$

$

Not available

264

Electrolux/AYP 183832

Bezel Grille LH
(Superseded to 532183832)

$

$

Not available

278

Electrolux/AYP 191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

Electrolux/AYP 5479J

Plug BTN BlK
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 187801

Plug Domed Plastic
(Superseded to 532187801)

$4.99

$

Usually ships in 3-10 days

0
