PHZ19KA443 - Exmark 44" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 600000 - 669999) (2006) Seat Group Parts Diagram

44" Phazer Zero-Turn Mower, 19hp Kawasaki

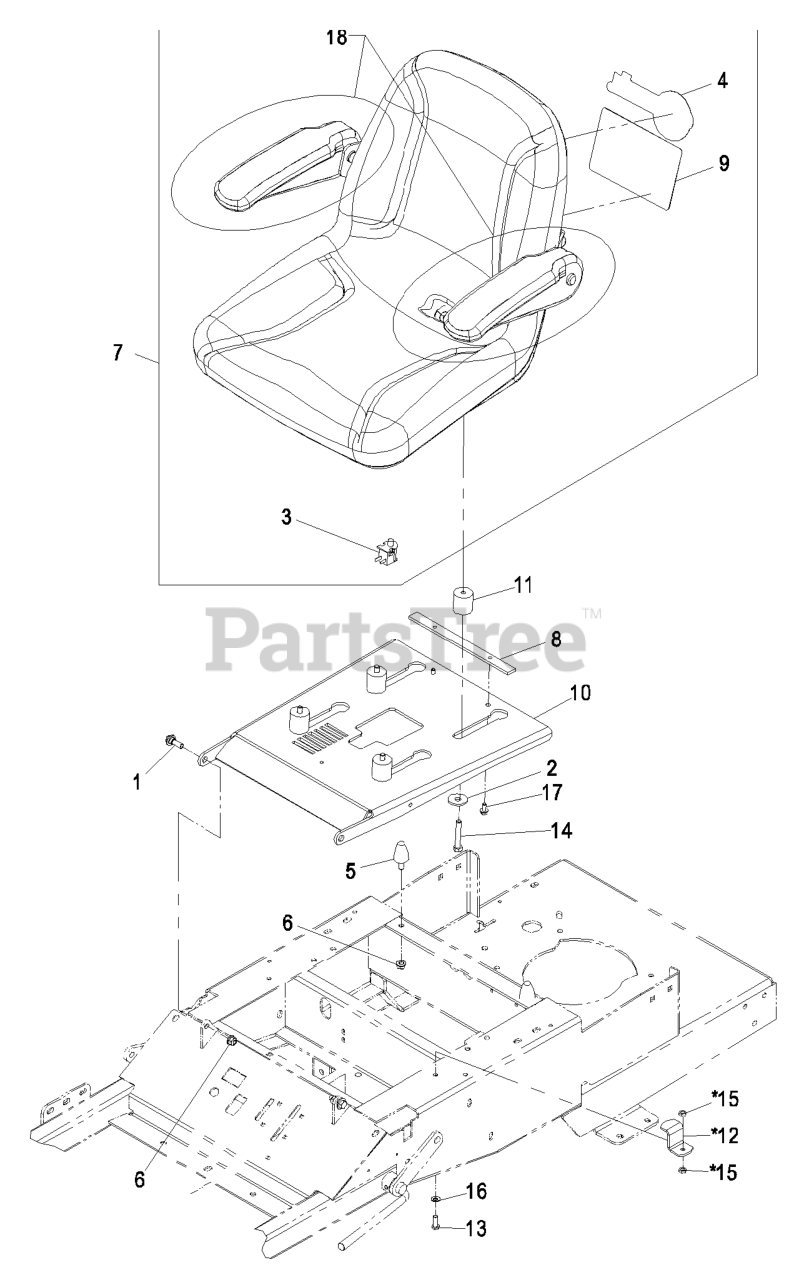

Seat Group Parts Diagram

  • Title

1

Exmark 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, only 3 left!

0

2

Exmark 63-8410

WASHER

$2.49

$

In Stock, Qty 10

0

3

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

4

Exmark 103-3999

DECAL,EXMARK LOGO

$9.99

$

In Stock, Qty 7

0

5

Exmark 103-9376

BUMPER-SEAT

$

$

Not available

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 109-3128

ASM,PHAZER SEAT W/DECALS

$

$

Not available

8

Exmark 109-2427-03

BAR-STOP, SEAT

$

$

Not available

9

Exmark 109-2461

116-0950
(Superseded to 116-0950)

$

$

Not available

10

Exmark 109-2607-03

BRACKET-SEAT

$541.99

$

Usually ships in 3-6 days

0

11

Exmark 109-2608

SPACER

$17.99

$

Usually ships in 3-6 days

0

12

Exmark 109-3519

BRACKET-HOLD DOWN, SEAT

Note: Required for Non-Commercial users

$

$

Not available

13

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Exmark 3217-5

NUT-HEX

Note: Required for Non-Commercial users

$0.99

$

In Stock, Qty 13

0

16

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

18

Exmark 108-6163

ARMREST KIT

$80.99

$

Usually ships in 3-6 days

0
