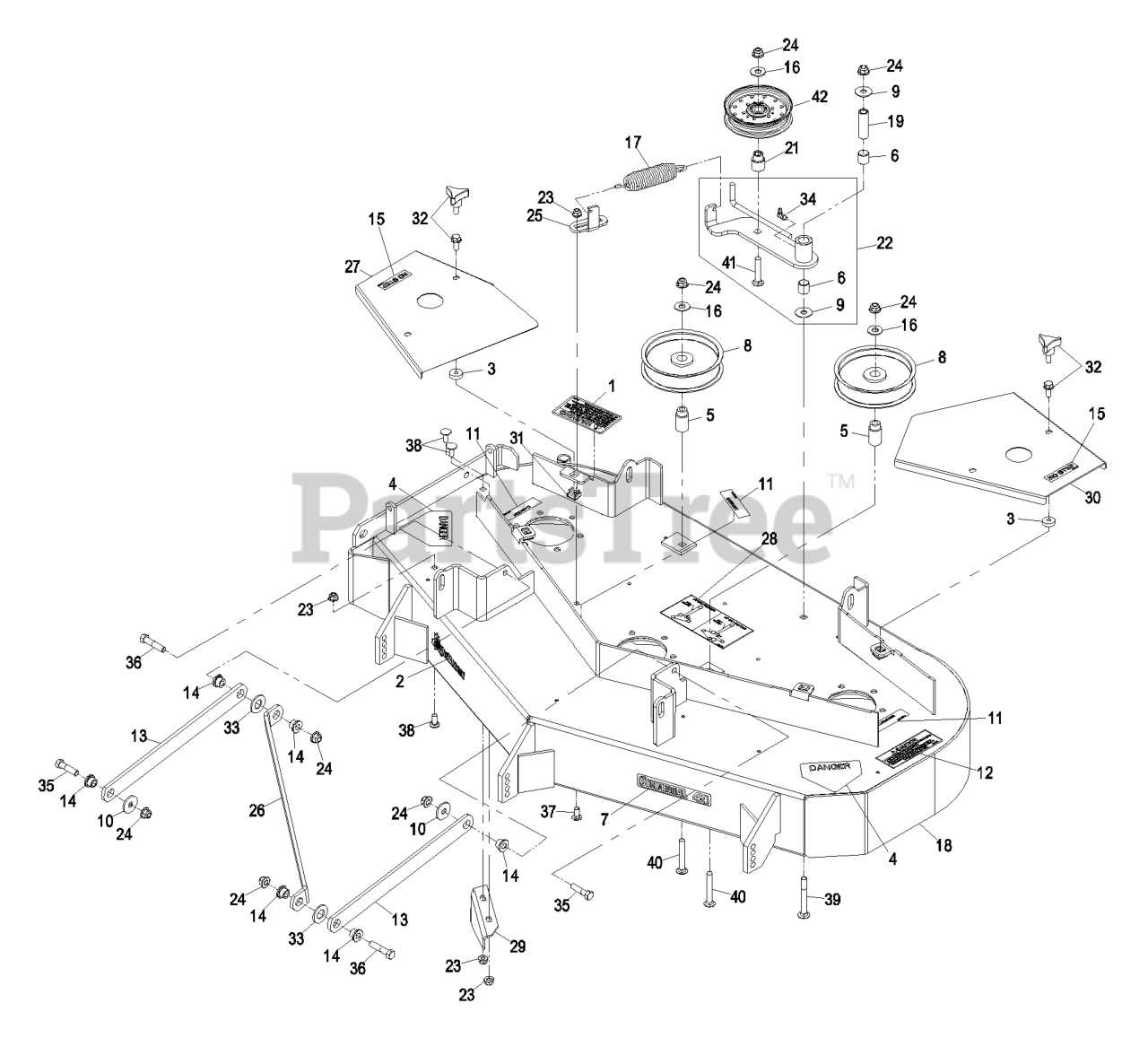

PHZ19KA443 - Exmark 44" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 600000 - 669999) (2006) Deck Group 44" Parts Diagram

44" Phazer Zero-Turn Mower, 19hp Kawasaki

Deck Group 44" Parts Diagram

  • Title

1

Exmark 1-303508

DECAL-WARNING, DISCHARGE

$5.49

$

In Stock, Qty 20+

0

2

Exmark 1-303520

DISCONTINUED

$

$

Not available

3

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

4

Exmark 1-403005

DECAL-DANGER

$5.49

$

In Stock, Qty 20+

0

5

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 3 left!

0

6

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

7

Exmark 1-523417

DECAL,COMMERCIAL 44

$23.99

$

In Stock, only 1 left!

0

8

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 7

0

9

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

10

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

11

Exmark 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

12

Exmark 103-1077

DECAL,BOLT TORQUE

$8.99

$

In Stock, only 2 left!

0

13

Exmark 103-3898

FLAT,STRUT

$23.99

$

In Stock, only 4 left!

0

14

Exmark 103-3900

SPACER-STRUT

$7.99

$

In Stock, Qty 14

0

15

Exmark 1-513742

DECAL,NO STEP

$5.99

$

In Stock, Qty 10

0

16

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Exmark 103-8599

116-6316
(Superseded to 116-6316)

$23.99

$

In Stock, only 3 left!

0

18

Exmark 109-3122

DISCONTINUED

$

$

Not available

19

Exmark 103-9405

BUSHING,IDLER ARM

$18.99

$

In Stock, Qty 6

0

20

Exmark 109-3521

ASM,DECK 44" COMPLETE

Note: Includes all item shown on "Deck Group 44"" & "Deck Group 44" (Cont.)". Does not include struts or strut hardware not attaching struts to decks.

$

$

Not available

21

Exmark 103-9948

BUSHING,IDLER

$

$

Not available

22

Exmark 109-4747

ASM,IDLER PHAZER DECKS

$123.99

$

In Stock, only 1 left!

0

23

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 109-0377

ANCHOR,DECK SPRING

$

$

Not available

26

Exmark 109-0381

BRACE,DECK LINKAGE

$

$

Not available

27

Exmark 109-0390-01

COVER,BELT 44 RH

$

$

Not available

28

Exmark 109-2465

DECAL,BELT ROUTING 34/44

$

$

Not available

29

Exmark 109-2610-01

BAFFLE,DISCHARGE

$

$

Not available

30

Exmark 109-2633-01

COVER,BELT 44 LH

$

$

Not available

31

Exmark 109-3100

NUT,CAGE

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

Exmark 109-3351

KNOB

Note: (Commercial Use Only)

$6.99

$

Usually ships in 3-6 days

0

33

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

34

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

35

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

38

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

39

Exmark 3231-10

SCREW-CARR

$4.49

$

In Stock, only 4 left!

0

40

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

41

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

42

Exmark 1-403186

126-9187
(Superseded to 126-9187)

$60.99

$

In Stock, Qty 19

0

Exmark 103-9140

PAINT, TOUCH UP

$21.99

$

In Stock, only 1 left!

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0
