PHZ19KA343 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 820977 - 919999) (2010) Seat Group Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

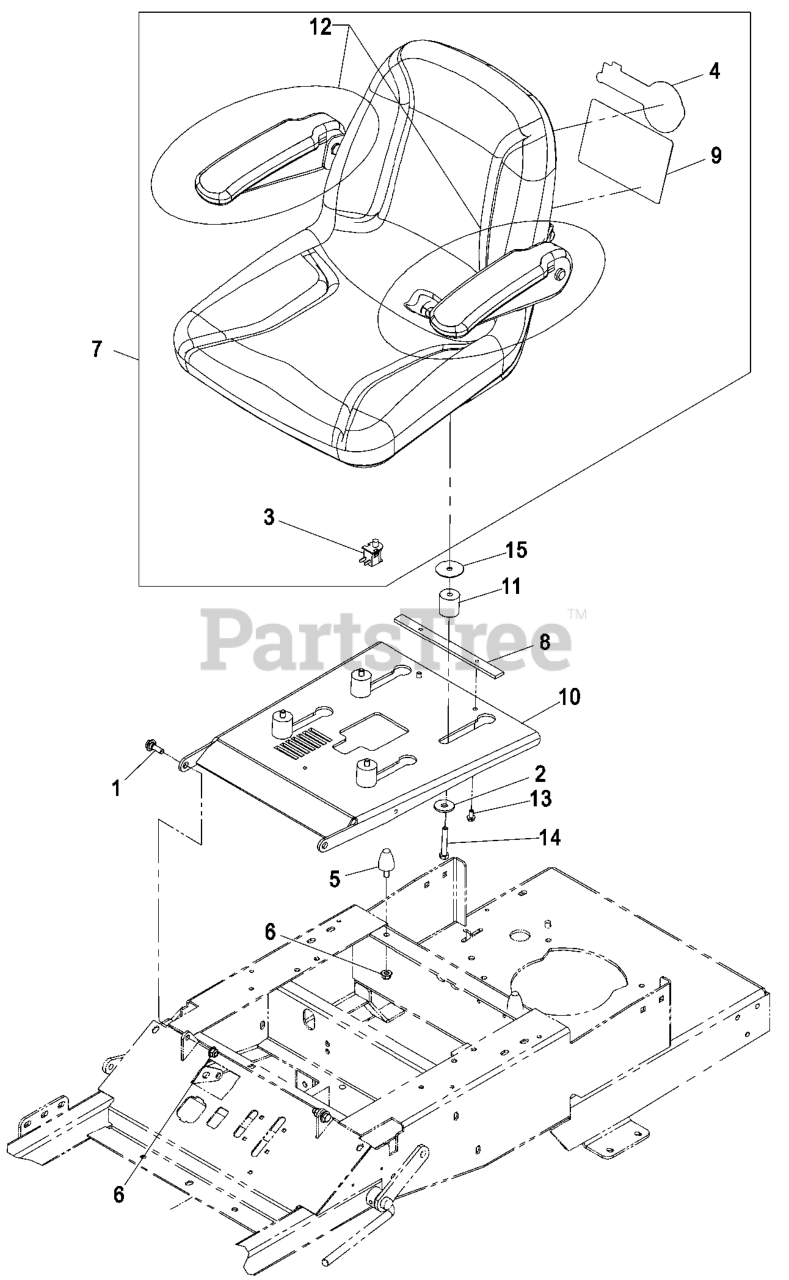

Seat Group Parts Diagram

  • Title

1

Exmark 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

2

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

3

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 12

0

4

Exmark 103-3999

DECAL,EXMARK LOGO

$8.99

$

In Stock, Qty 7

0

5

Exmark 103-9376

BUMPER-SEAT

$

$

Not available

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 109-3128

ASM,PHAZER SEAT W/DECALS

$

$

Not available

8

Exmark 109-2427-03

BAR-STOP, SEAT

$14.99

$

Usually ships in 3-6 days

0

9

Exmark 116-0950

DECAL,SERVICE AID PHAZER

$

$

Not available

10

Exmark 109-2607-03

BRACKET-SEAT

$243.99

$

Usually ships in 3-6 days

0

11

Exmark 109-2608

SPACER

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 108-6163

ARMREST KIT

$

$

Not available

13

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

15

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0
