PHZ19KA343 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 820977 - 919999) (2010) Motion Control Group Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

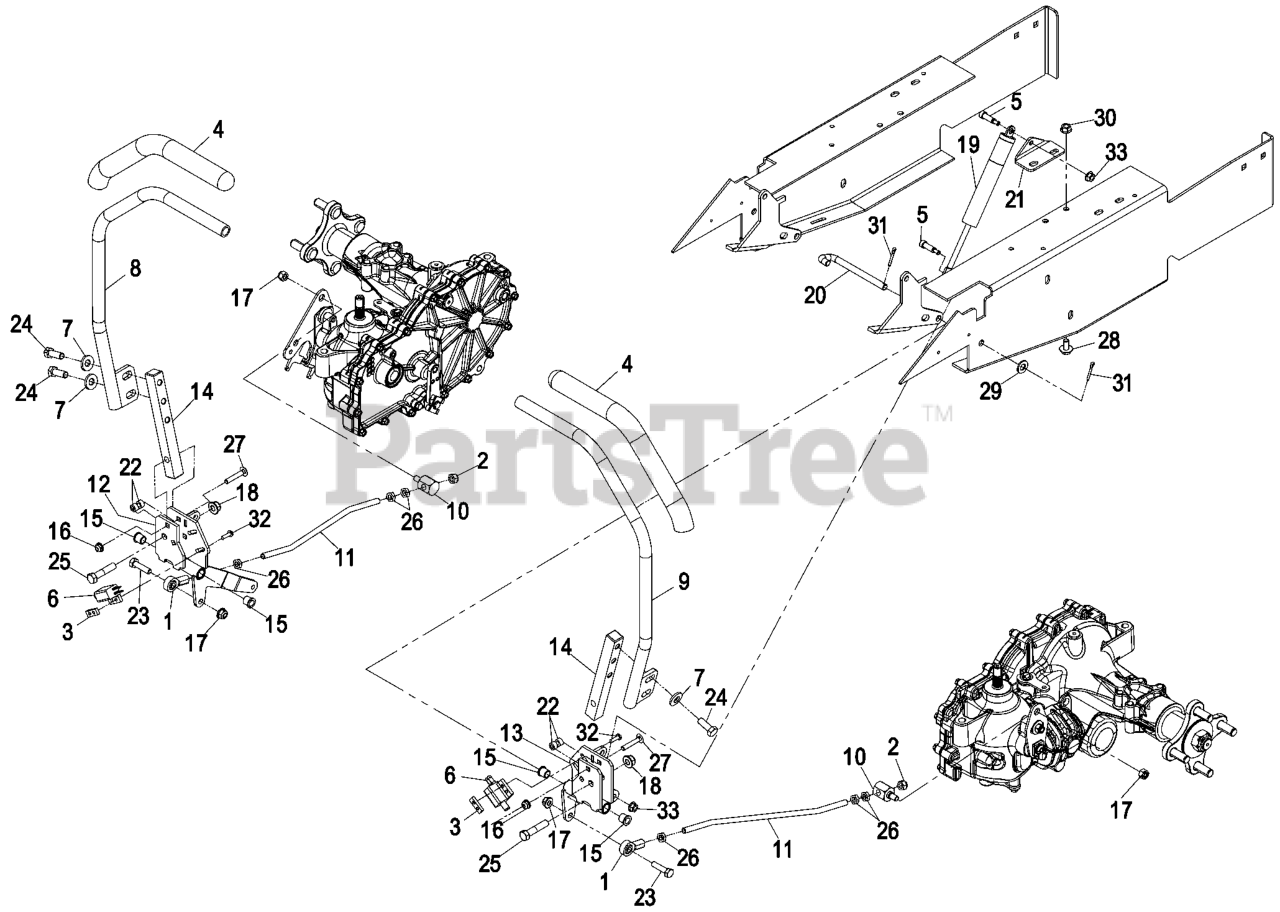

Motion Control Group Parts Diagram

  • Title
1

Exmark 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

2

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

3

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

4

Exmark 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0

5

Exmark 1-809057

SCREW-HSH

$

$

Not available

6

Exmark 65-7410

1-513051
(Superseded to 1-513051)

$19.99

$

In Stock, Qty 20+

0

7

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 103-9367

ASM,LEVER CONTROL RH

$

$

Not available

9

Exmark 103-9368

ASM,LEVER CONTROL LH

$

$

Not available

10

Exmark 103-9373

TRUNNION

$21.99

$

Usually ships in 3-6 days

0

11

Exmark 103-9407

ROD-STEERING, LH

$22.99

$

In Stock, only 3 left!

0

12

Exmark 103-9411

CONTROL-STEERING, RH

Note: (RH)

$

$

Not available

13

Exmark 103-9413

CONTROL-STEERING, LH

Note: (LH)

$

$

Not available

14

Exmark 103-9414

MOUNT-POST, LEVER

$

$

Not available

15

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

16

$1.49

$

In Stock, Qty 20+

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 109-2339

DAMPER-CONTROL, MOTION

$76.99

$

In Stock, only 3 left!

0

20

Exmark 109-2423

SHAFT-PIVOT, CONTROL

$18.99

$

Usually ships in 3-6 days

0

21

Exmark 109-2428

BRACKET-DAMPER

$

$

Not available

22

$2.99

$

In Stock, Qty 15

0

23

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

24

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

27

Exmark 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

28

Exmark 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

29

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

30

$1.49

$

In Stock, Qty 20+

0

31

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

32

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

33

$0.99

$

In Stock, Qty 6

0
