PHZ19KA343 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 790000 - 820976) (2009) Park Brake Group Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

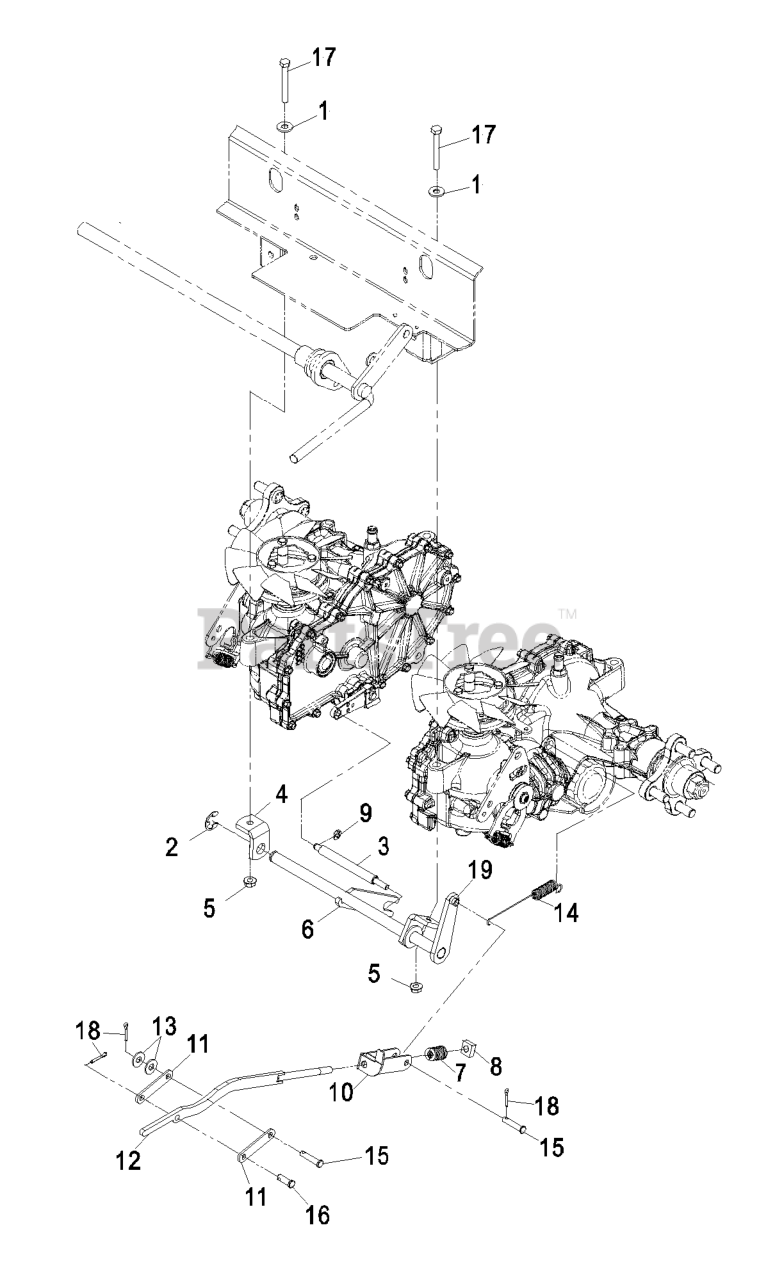

Park Brake Group Parts Diagram

  • Title

1

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Exmark 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

3

Exmark 103-9408

BAR-EQUALIZER

$18.99

$

Usually ships in 3-6 days

0

4

Exmark 103-9409

BRACKET-PIVOT, BRAKE

$39.99

$

Usually ships in 3-6 days

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 109-5376

BELLCRANK-BRAKE

$

$

Not available

7

Exmark 103-9925

SPRING-BRAKE

$36.99

$

Usually ships in 3-6 days

0

8

Exmark 103-9926

NUT-SQUARE

$

$

Not available

9

Exmark 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 4 left!

0

10

Exmark 114-0548

CLEVIS-BRAKE

$108.99

$

Usually ships in 3-6 days

0

11

Exmark 109-0223

LINK-CENTER, OVER

$6.99

$

Usually ships in 3-6 days

0

12

Exmark 109-5370

LINK-BRAKE

$92.99

$

Usually ships in 3-6 days

0

13

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Exmark 109-2861

SPRING-RETURN, BRAKE

$14.99

$

Usually ships in 3-6 days

0

15

Exmark 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

16

Exmark 283-75

PIN-CLEVIS

$3.49

$

Usually ships in 3-6 days

0

17

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

18

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

19

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0
