PHZ19KA343 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 790000 - 820976) (2009) Fuel Group Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

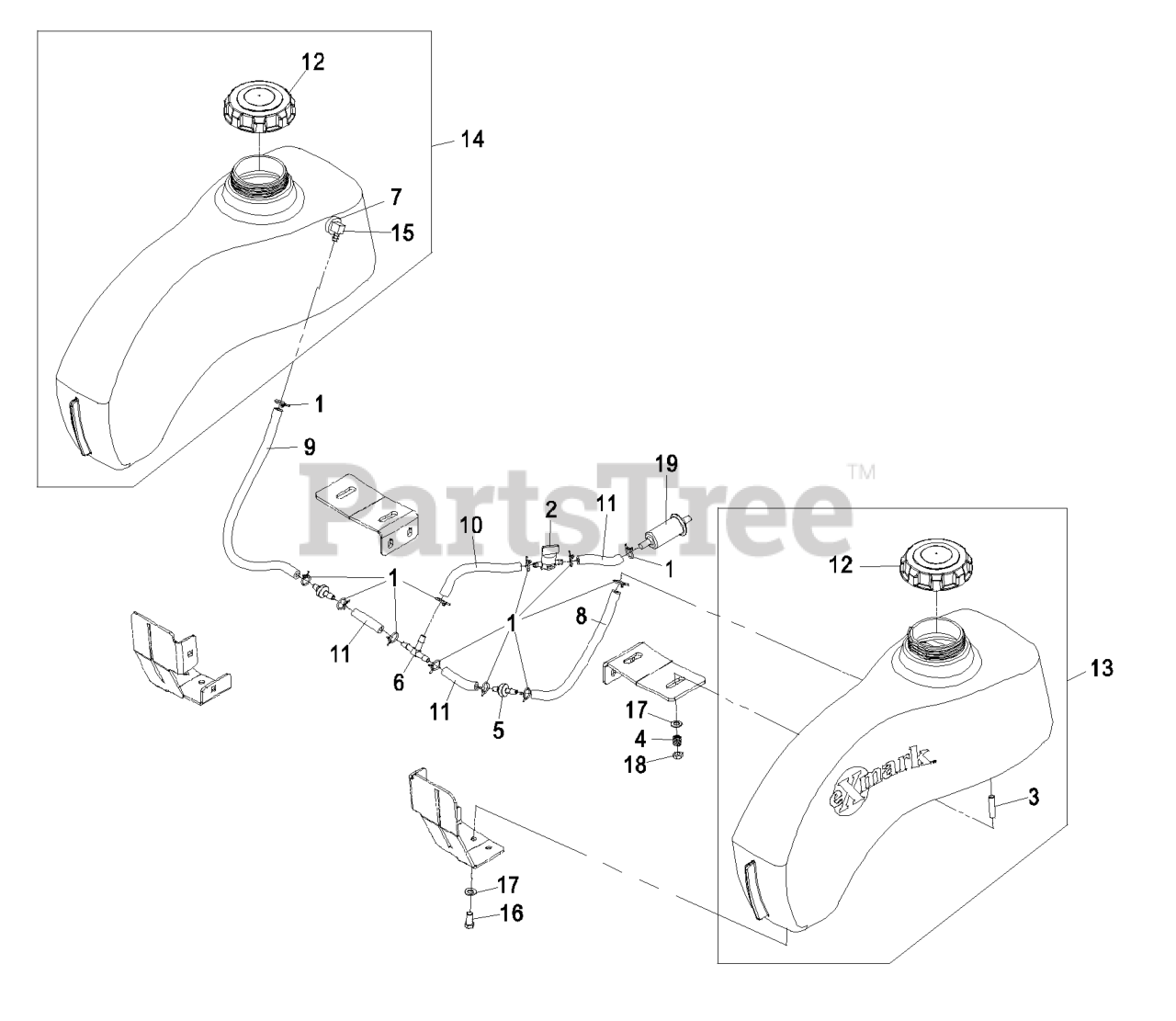

Fuel Group Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

3

Exmark 1-633023

STUD

Note: Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads, item #3 going into tanks.

$6.49

$

In Stock, only 2 left!

0

4

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 16

0

5

Exmark 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, Qty 13

0

6

Exmark 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

7

Exmark 104-7789

BUSHING

$20.99

$

In Stock, only 2 left!

0

8

Exmark 107-7684

109-0294
(Superseded to 109-0294)

$6.99

$

In Stock, only 1 left!

0

9

Exmark 108-4582

HOSE-FUEL

$11.99

$

In Stock, only 1 left!

0

10

Exmark 109-0293

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

11

Exmark 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 6

0

12

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, Qty 10

0

13

Exmark 109-3124

ASM,LH PHAZER TANK W/STUD

Note: (LH)

$428.99

$

Usually ships in 3-6 days

0

14

Exmark 109-3123

ASM,PHAZER RH TANK W/STUD

Note: (RH)

$473.99

$

Usually ships in 3-6 days

0

15

Exmark 109-2420

FITTING-FUEL (W/LINE AND

$36.99

$

Usually ships in 3-6 days

0

16

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

19

Kawasaki Part No. 49019-7001 Fuel Filter

Note: Refer to Engine Owner's manual. (Fuel filter Must be 15 Micron or smaller).

$

$

Not available
