PHZ19KA343 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 790000 - 820976) (2009) 34" Deck Group (Cont.) Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

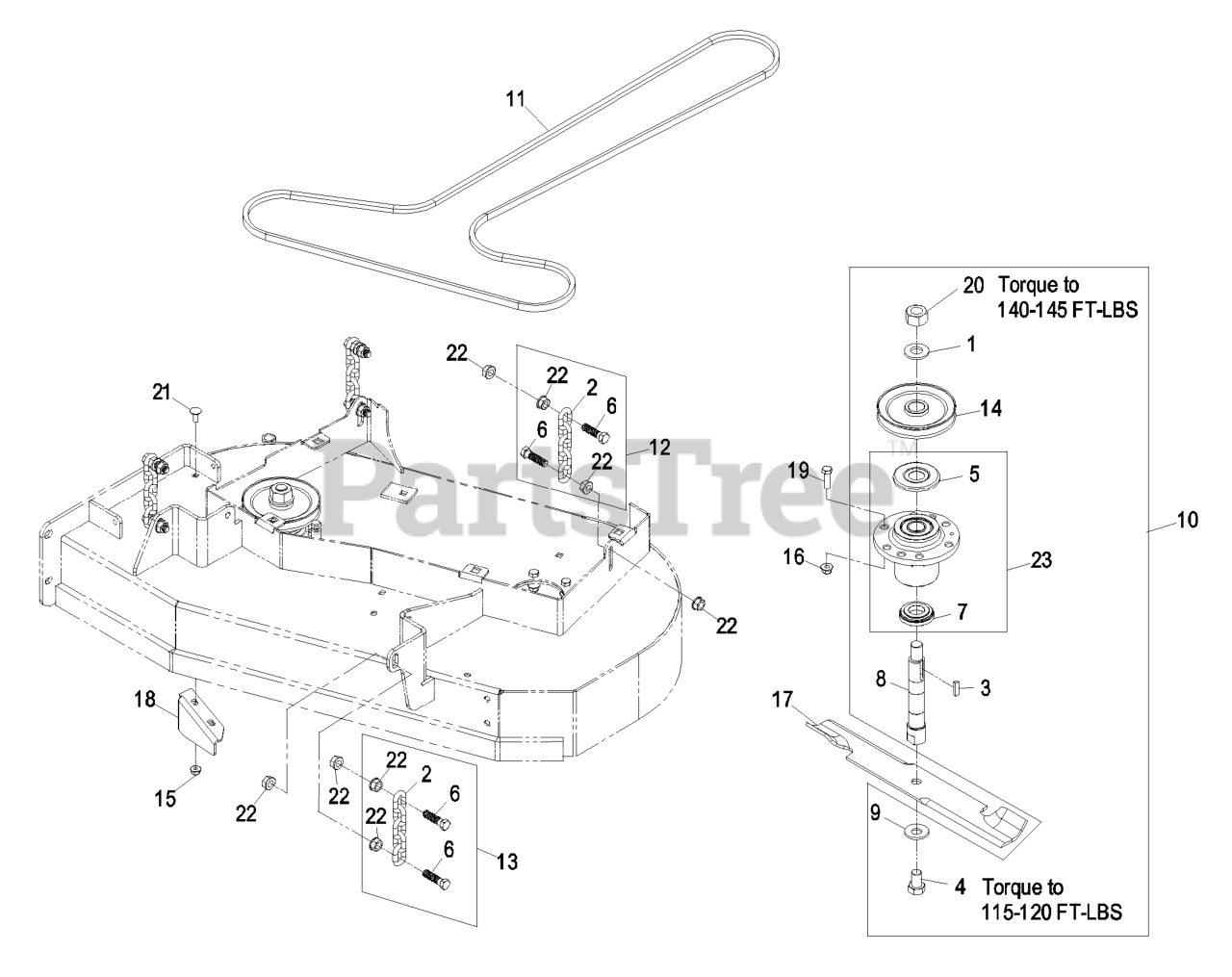

34" Deck Group (Cont.) Parts Diagram

  • Title

1

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

2

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

3

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 14

0

4

Exmark 103-1026

SCREW-CAP

$5.49

$

In Stock, Qty 13

0

5

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$5.49

$

In Stock, only 2 left!

0

6

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

7

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

8

Exmark 103-2788

SPINDLE,SHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$79.99

$

In Stock, Qty 8

0

9

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 15

0

10

Exmark 109-3522

ASM,CUTTER HOUSING COMPLE

$547.99

$

Usually ships in 3-6 days

0

11

Exmark 103-9366

BELT,A107.40
(Superseded to 103-9366-SL)

$64.99

$

Usually ships in 3-6 days

0

12

Exmark 103-9792

DECK CHAIN ASM

$13.99

$

In Stock, only 1 left!

0

13

Exmark 103-9817

DECK CHAIN ASM

$14.99

$

In Stock, only 3 left!

0

14

Exmark 103-9953

PULLEY,SPINDLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$67.99

$

Usually ships in 3-6 days

0

15

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 109-2548

109-2548-S
(Superseded to 109-2548-S)

$27.99

$

In Stock, Qty 6

0

Exmark 109-2551

109-2551-S
(Superseded to 109-2551-S)

$

$

Not available

Exmark 109-3129

109-3129-S
(Superseded to 109-3129-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK343.

$30.99

$

In Stock, Qty 10

0

Exmark 109-2549

109-2549-S
(Superseded to 109-2549-S)

$27.99

$

Usually ships in 3-6 days

0

18

Exmark 109-2610-01

BAFFLE,DISCHARGE

$

$

Not available

19

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut.

$12.99

$

In Stock, Qty 13

0

21

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0

23

Exmark 103-8280

KIT, CUTTER HOUSING

$254.99

$

In Stock, only 3 left!

0
