PHZ19KA343 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 720000 - 789999) (2008) Frame Group (cont.) Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

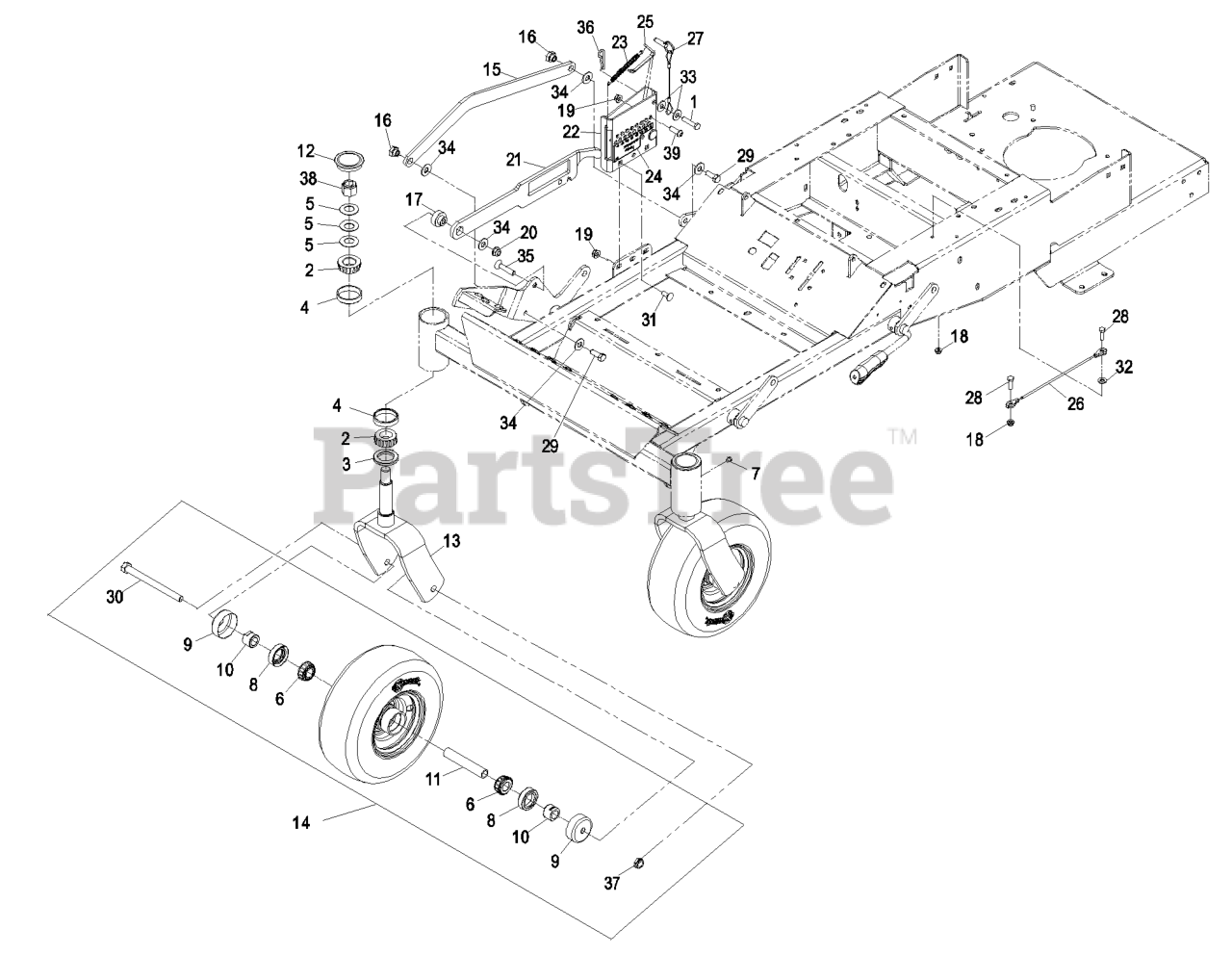

Frame Group (cont.) Parts Diagram

  • Title

1

Exmark 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

2

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

3

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

4

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

5

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

6

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

7

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

8

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

9

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

10

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut Item #10.

$9.49

$

In Stock, Qty 20+

0

11

Exmark 103-3157

126-5359
(Superseded to 126-5359)

$18.99

$

In Stock, Qty 11

0

12

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

13

Exmark 103-8618-01

FORK-CASTER

$139.99

$

In Stock, Qty 13

0

14

Exmark 112-3810

WHEEL/TIRE AND BEARING AS

$215.99

$

In Stock, only 2 left!

0

15

Exmark 103-9932

LINK-CONTROL, DECK

$

$

Not available

16

Exmark 103-9933

NUT-SHOULDER

$9.49

$

In Stock, only 1 left!

0

17

Exmark 103-9934

BUSHING

$

$

Not available

18

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 109-2410

116-0199
(Superseded to 116-0199)

$

$

Not available

22

Exmark 109-3544

HEIGHT ADJUST ASM

$

$

Not available

23

Exmark 109-2416

SPRING-ADJUST, HEIGHT

$8.49

$

Usually ships in 3-6 days

0

24

Exmark 109-2463

DECAL-HEIGHT, DECK

$11.99

$

Usually ships in 3-6 days

0

25

Exmark 109-2620

PAWL-CONTROL, HEIGHT

$15.99

$

Usually ships in 3-6 days

0

26

Exmark 109-2628

CABLE-STOP, SEAT

$19.99

$

In Stock, only 2 left!

0

27

Exmark 109-3323

HEIGHT PIN W/LANYARD ASM

$36.99

$

Usually ships in 3-6 days

0

28

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

31

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

34

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 13

0

35

Exmark 3289-19

SCREW-FH

$4.99

$

Usually ships in 3-6 days

0

36

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

37

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

38

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

39

Exmark 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0
