PHZ19KA343 - Exmark 34" Phazer Zero-Turn Mower, 19hp Kawasaki (SN: 720000 - 789999) (2008) 34" Deck Group Parts Diagram

34" Phazer Zero-Turn Mower, 19hp Kawasaki

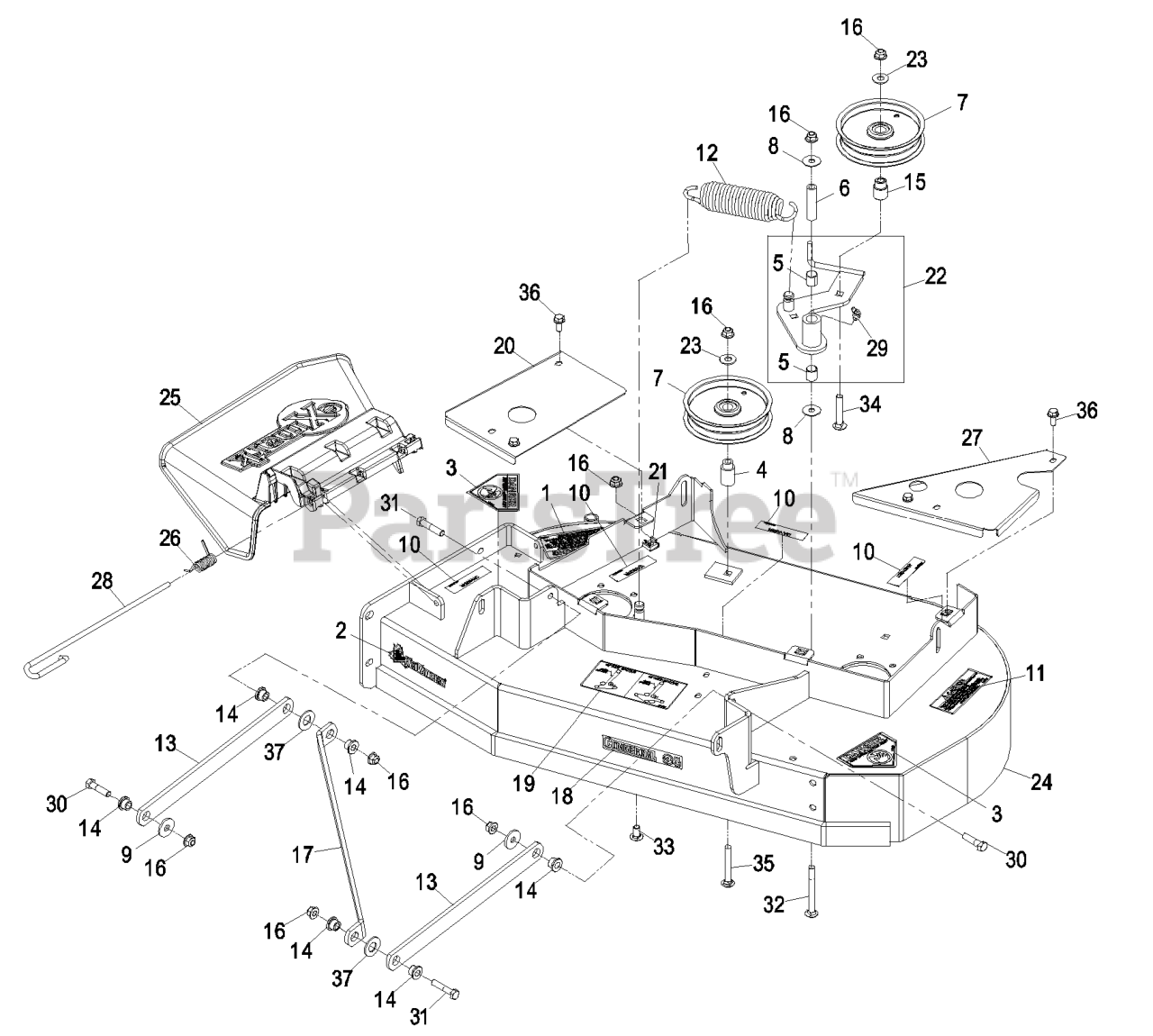

34" Deck Group Parts Diagram

  • Title

1

Exmark 1-303508

DECAL-WARNING, DISCHARGE

$5.49

$

In Stock, Qty 20+

0

2

Exmark 1-303520

DISCONTINUED

$

$

Not available

3

Exmark 1-403005

DECAL-DANGER

$5.49

$

In Stock, Qty 20+

0

4

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 1 left!

0

5

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

6

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

7

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

8

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

9

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 13

0

10

Exmark 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

11

Exmark 103-1077

DECAL,BOLT TORQUE

$8.99

$

In Stock, only 2 left!

0

12

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

13

Exmark 103-3898

FLAT,STRUT

$23.99

$

In Stock, only 4 left!

0

14

Exmark 103-3900

SPACER-STRUT

$7.99

$

In Stock, Qty 13

0

15

Exmark 103-9948

BUSHING,IDLER

$

$

Not available

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 109-0381

BRACE,DECK LINKAGE

$

$

Not available

18

Exmark 109-2462

DECAL,COMMERICAL 34

$

$

Not available

19

Exmark 109-2465

DECAL,BELT ROUTING 34/44

$

$

Not available

20

Exmark 109-3086-01

COVER,BELT RH

$57.99

$

In Stock, only 1 left!

0

21

Exmark 109-3100

NUT,CAGE

$5.49

$

Usually ships in 3-6 days

0

22

Exmark 109-3891

ASM,IDLER DECK PHAZER

$251.99

$

Usually ships in 3-6 days

0

23

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

24

Exmark 109-9467

ASM,34 DECK WITH DECALS

Note: Includes items 25, 26, & 28

$2435.99

$

Usually ships in 3-6 days

0

25

Exmark 109-5150

CHUTE,DISCHARGE 34"

$61.99

$

In Stock, only 1 left!

0

26

Exmark 109-6886

SPRING-TORSION

$8.49

$

In Stock, Qty 14

0

27

Exmark 109-9441-01

COVER,LEFT SPINDLE

$130.99

$

Usually ships in 3-6 days

0

28

Exmark 109-9461

PIN,CHUTE

$

$

Not available

29

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

30

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

33

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

34

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

0

35

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

0

36

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

37

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

38

Exmark 109-9473

ASM,34 DECK COMPLETE

Note: Includes all item shown on pages 3 & 4. Does not include struts or strut hardware.

$3413.99

$

Usually ships in 3-6 days

0
