PHP-800 - Echo High Pressure, Stationary Sprayer (SN: H00326001001 - H00326999999) Fuel System Parts Diagram

High Pressure, Stationary Sprayer

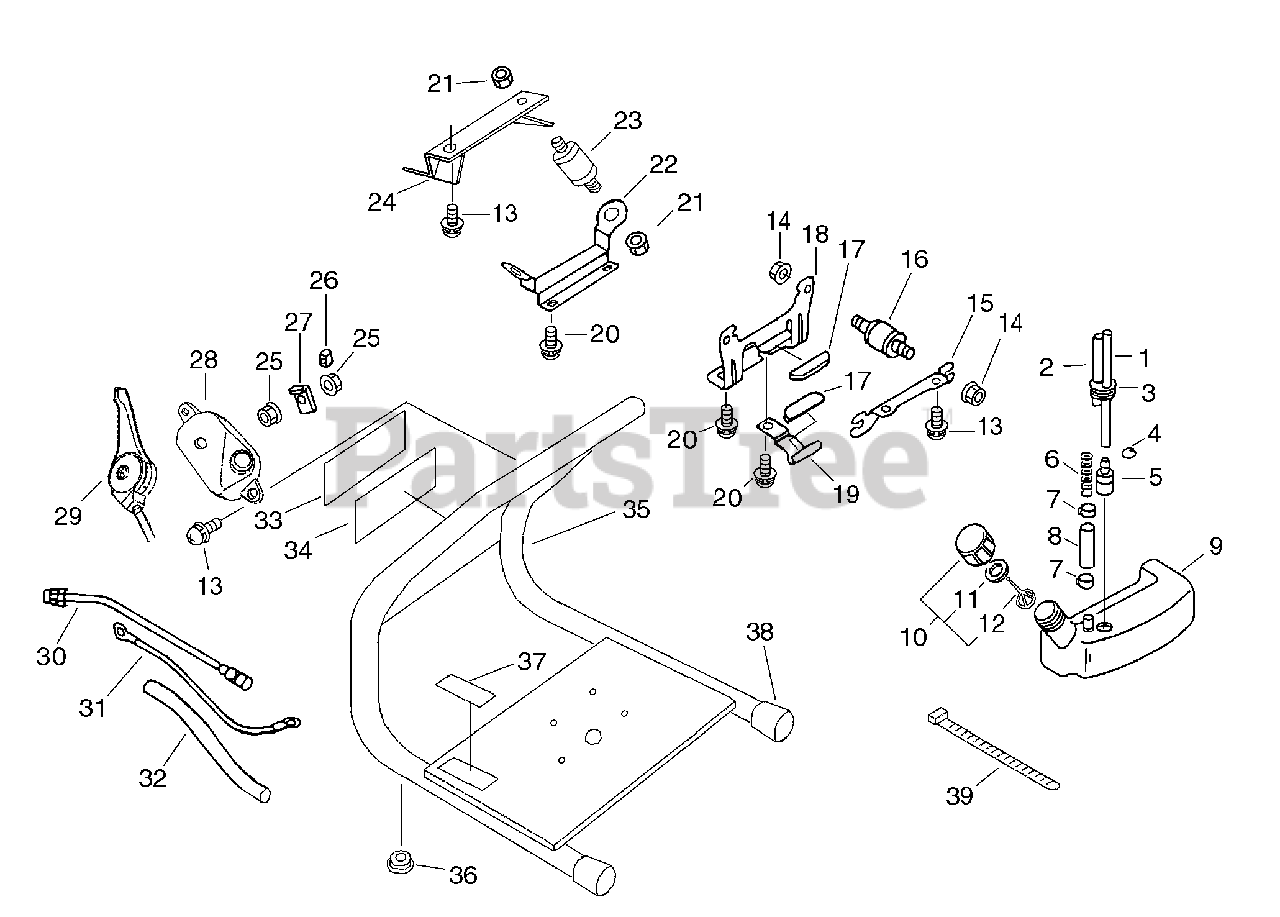

Fuel System Parts Diagram

  • Title

1

Echo 43721015130

Pipe, Oil

$4.99

$

Usually ships in 2-4 days

0

2

Echo 13201014010

Pipe 3x6x100

$2.99

$

In Stock, Qty 11

0

3

Echo 13211544330

Grommet
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

4

Echo V490001230

Clip

$0.99

$

In Stock, Qty 20+

0

5

Echo 13120519831

Strainer, Fuel
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

6

Echo 13222107410

Spring,Compression

$

$

Currently unavailable

7

Echo 13201314010

Band

$3.49

$

Usually ships in 2-4 days

0

8

Echo V471000020

Pipe

$

$

Currently unavailable

9

Echo 13101014012

Tank, Fuel

$

$

Currently unavailable

10

Echo 13100455530

Cap Assy, Fuel Tank
(Superseded to P100006640)

$6.49

$

In Stock, only 3 left!

0

11

Echo 13101655830

Gasket, Fuel Cap
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

12

Echo 13105156030

Clip, Fuel Cap

$1.49

$

In Stock, Qty 20+

0

13

Echo 90024205012

Screw 5x12

$0.99

$

In Stock, Qty 20+

0

14

Echo 70616019950

Nut, Flange 5

$

$

Currently unavailable

15

Echo 70616018450

Bracket Engine

$4.49

$

Usually ships in 2-4 days

0

16

Echo 70616017870

Cushion

$11.99

$

Usually ships in 2-4 days

0

17

Echo 70616016770

Cushion,Fuel Tank

$2.99

$

Usually ships in 2-4 days

0

18

Echo 70616015430

Bracket,Fuel Tank

$6.49

$

Usually ships in 2-4 days

0

19

Echo 70616021450

Bracket Fuel Tank

$9.49

$

Usually ships in 2-4 days

0

20

Echo 90024206014

Screw 6x14

$0.99

$

In Stock, Qty 7

0

21

Echo 70604054960

Nut

$

$

Currently unavailable

22

Echo 70616023450

Plate,Angle

$11.99

$

Usually ships in 2-4 days

0

23

Echo 70604041870

Cushion

$11.99

$

Usually ships in 2-4 days

0

24

Echo 70616025450

Plate,Angle

$6.49

$

Usually ships in 2-4 days

0

25

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

26

Echo 70616036870

Grommet

$1.49

$

Usually ships in 2-4 days

0

27

Echo 70616027050

Fixed Plate

$5.49

$

Usually ships in 2-4 days

0

28

Echo 17812314010

Bracket, Throttle

$11.99

$

Usually ships in 2-4 days

0

29

Echo 70616029260

Throttle,Contorl
(Superseded to 70616029261)

$29.99

$

Usually ships in 2-4 days

0

30

Echo 70604047001

Stop Switch

$8.49

$

Usually ships in 2-4 days

0

31

Echo 70616032001

Lead

$5.49

$

Usually ships in 2-4 days

0

32

Echo V475004041

Tube

$

$

Currently unavailable

33

Echo X502000550

Label,Echo

$

$

Currently unavailable

34

Echo X543004050

Label,Model

$

$

Currently unavailable

35

Echo C600000240

Frame

$88.99

$

Usually ships in 2-4 days

0

36

Echo V145000110

Grommet,Circular

$

$

Currently unavailable

37

Echo 89061713210

Label, Caution

$

$

Currently unavailable

38

Echo V421000000

Cap,Cushion

$

$

Currently unavailable

39

Echo 17812143230

Band

$3.49

$

In Stock, only 4 left!

0
