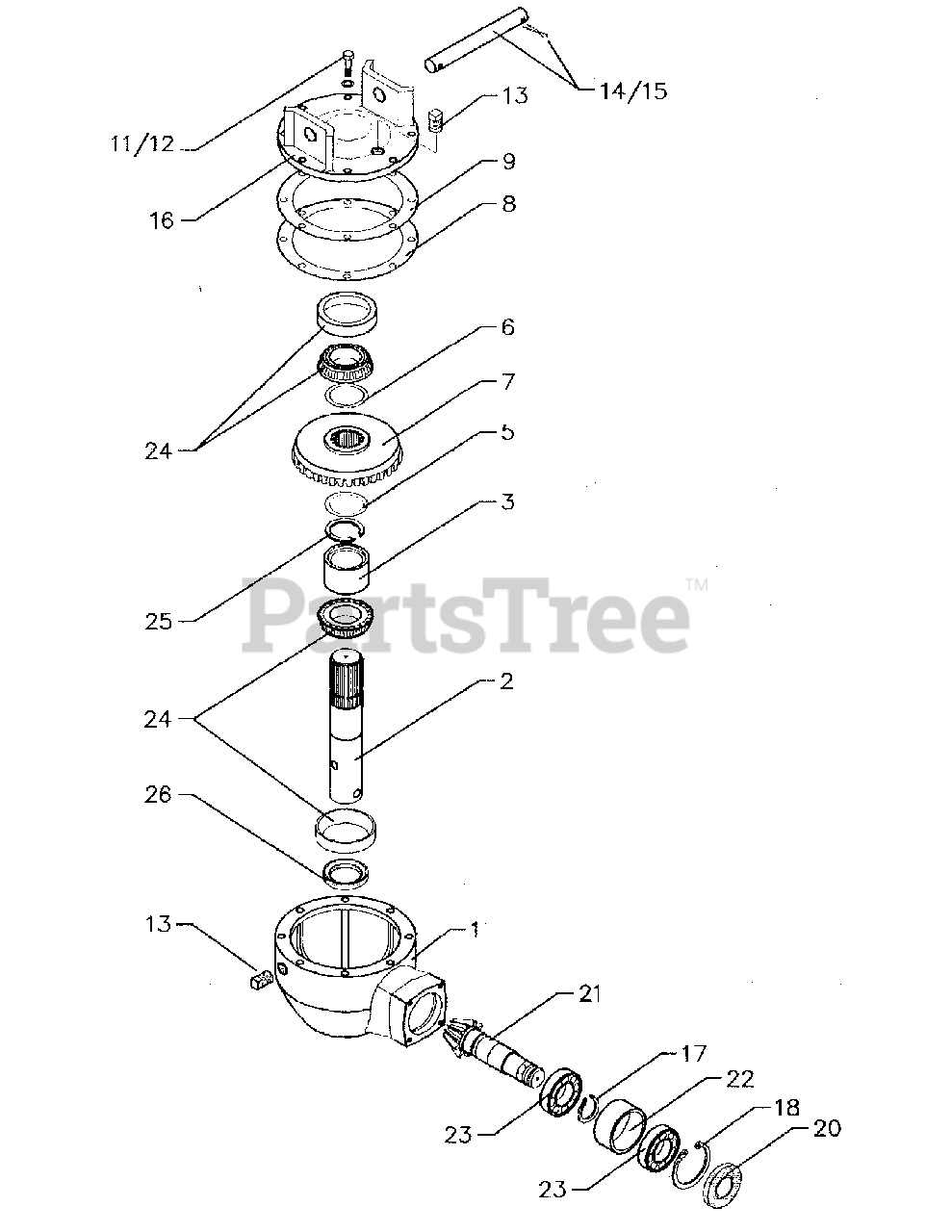

PHD 200 (59A40037727) - Cub Cadet Yanmar Tractor Post Hole Digger Gearbox Version 01 Parts Diagram

Tractor Post Hole Digger

Gearbox Version 01 Parts Diagram

  • Title
1

Cub Cadet YS-502-272B

HOUSING
(Superseded to BF-502-272B)

$

$

Not available

2

Cub Cadet YS-502-273B

OUTPUT SHAFT
(Superseded to BF-502-273B)

$

$

Not available

3

Cub Cadet YS-502-274B

OUTPUT BEARING SPACER
(Superseded to BF-502-274B)

$

$

Not available

5

Cub Cadet YS-502-251B

GEAR ADJUSTING SHIM .03
(Superseded to BF-502-251B)

$

$

Not available

6

Cub Cadet YS-502-252B

GEAR ADJUSTING SHIM .50
(Superseded to BF-502-252B)

$

$

Not available

7

Cub Cadet YS-502-275B

OUTPUT GEAR 33 TOOTH
(Superseded to BF-502-275B)

$

$

Not available

8

Cub Cadet YS-502-276B

OUTPUT CAP GASKET .10
(Superseded to BF-502-276B)

$

$

Not available

9

Cub Cadet YS-502-277B

OUTPUT CAP GASKET .25
(Superseded to BF-502-277B)

$

$

Not available

11

Cub Cadet YS-000-1280

LOCKWASHER M10
(Superseded to BF-000-1280)

$

$

Not available

12

Cub Cadet YS-502-256B

CAP SCREW M10 X 30
(Superseded to BF-502-256B)

$

$

Not available

13

Cub Cadet YS-502-257B

PIPE PLUG 1/2"
(Superseded to BF-502-257B)

$

$

Not available

14

Cub Cadet YS-502-258B

HANGER SHAFT
(Superseded to BF-502-258B)

$

$

Not available

15

Cub Cadet YS-502-259B

COTTER PIN
(Superseded to BF-502-259B)

$

$

Not available

16

Cub Cadet YS-502-278B

HANGER CAP
(Superseded to BF-502-278B)

$

$

Not available

17

Cub Cadet YS-502-279B

RETAINING RING
(Superseded to BF-502-279B)

$

$

Not available

18

Cub Cadet YS-502-262B

RETAINING RING
(Superseded to BF-502-262B)

$

$

Not available

20

Cub Cadet YS-502-280B

INPUT SEAL
(Superseded to BF-502-280B)

$

$

Not available

21

Cub Cadet YS-502-281B

PINION GEAR & SHAFT 11 TOOTH
(Superseded to BF-502-281B)

$

$

Not available

22

Cub Cadet YS-502-266B

BEARING SPACER
(Superseded to BF-502-266B)

$

$

Not available

23

Cub Cadet YS-002-5332

BEARING 6207
(Superseded to BF-002-5332)

$

$

Not available

24

Cub Cadet YS-502-268B

BEARING 7210 & RACE
(Superseded to BF-502-268B)

$

$

Not available

25

Cub Cadet YS-502-269B

RETAINING RING
(Superseded to BF-502-269B)

$

$

Not available

26

Cub Cadet YS-502-270B

OUTPUT SEAL 50 X 70 X 12
(Superseded to BF-502-270B)

$

$

Not available

Cub Cadet YS-502-282B

GEARBOX COMPLETE

Note: Not shown

$

$

Not available
