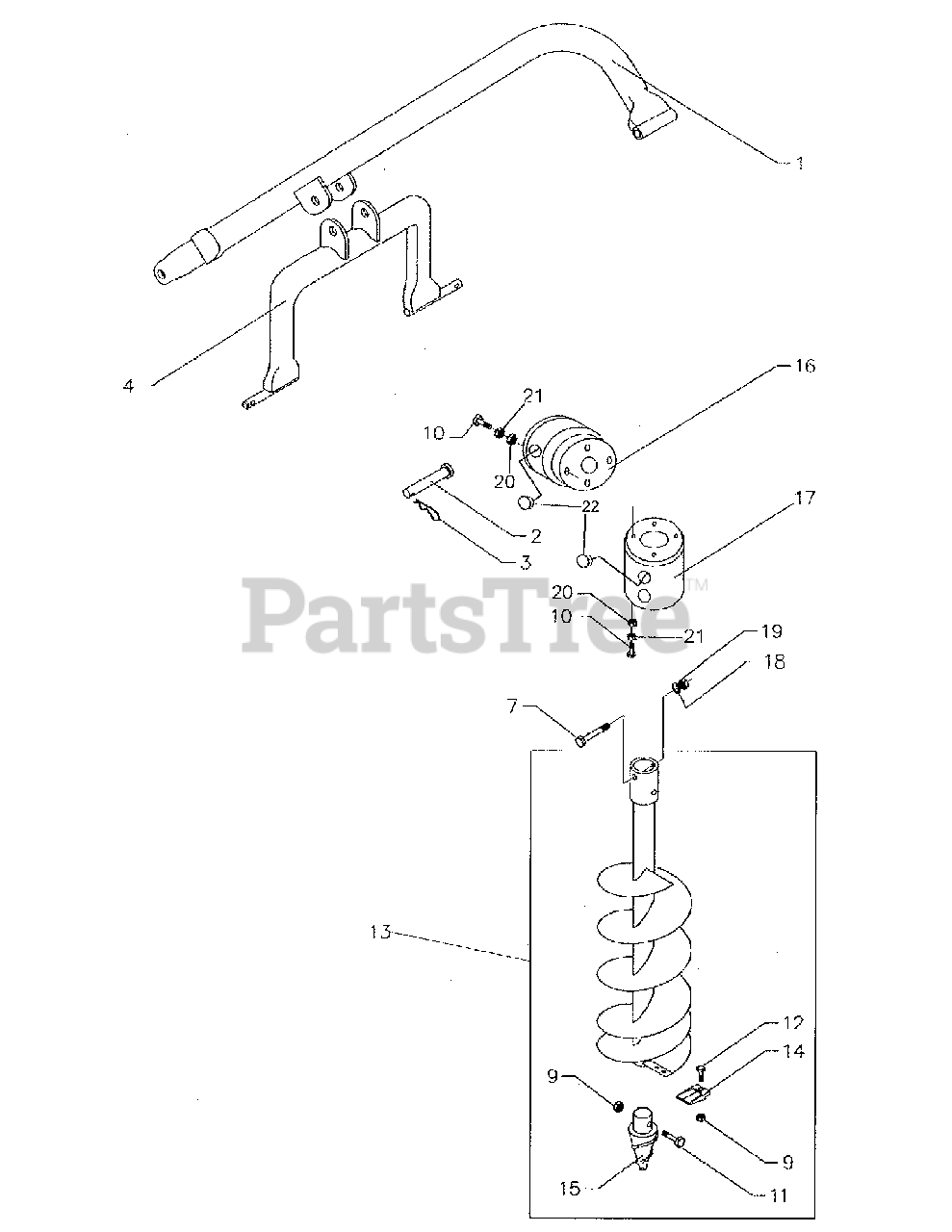

PHD 200 (59A40037727) - Cub Cadet Yanmar Tractor Post Hole Digger Frame Version 01 Parts Diagram

Tractor Post Hole Digger

Frame Version 01 Parts Diagram

  • Title
1

Cub Cadet YS-501-534B

BOOM ASSEMBLY
(Superseded to BF-501-534B)

$

$

Not available

2

Cub Cadet YS-501-544B

1" X 6" PIN
(Superseded to BF-501-544B)

$

$

Not available

3

Cub Cadet YS-009-1507

HAIRPIN COTTER
(Superseded to BF-009-1507)

$

$

Not available

4

Cub Cadet YS-501-535B

YOKE
(Superseded to BF-501-535B)

$

$

Not available

7

Cub Cadet YS-001-5122

BOLT 12 X 90

$

$

Not available

9

Cub Cadet YS-002-1105

STOVER NUT M12 9" AUGER
(Superseded to BF-002-1105)

$

$

Not available

9

Cub Cadet YS-002-1105

STOVER NUT M12 12" AUGER
(Superseded to BF-002-1105)

$

$

Not available

10

Cub Cadet YS-503-869B

BOLT 5/16" X 3/4"

$

$

Not available

11

Cub Cadet YS-009-1495

BOLT M12 X 80
(Superseded to BF-009-1495)

$

$

Not available

12

Cub Cadet YS-001-5255

BOLT M12 X 30 9" AUGER
(Superseded to BF-001-5255)

$

$

Not available

12

Cub Cadet YS-001-5255

BOLT M12 X 30 12" AUGER
(Superseded to BF-001-5255)

$

$

Not available

13

Cub Cadet YS-209-531

9" DOUBLE FLIGHTED AUGER COMPLETE

$

$

Not available

14

Cub Cadet YS-501-540B

CUTTING KNIFE 9" AUGER

$

$

Not available

14

Cub Cadet YS-501-540B

CUTTING KNIFE 12" AUGER

$

$

Not available

15

Cub Cadet YS-501-541B

AUGER POINT

$

$

Not available

16

Cub Cadet YS-503-238B

GEARBOX GUARD

$

$

Not available

17

Cub Cadet YS-503-239B

AUGER GUARD
(Superseded to BF-503-239B)

$

$

Not available

18

Cub Cadet YS-000-1077

LOCK WASHER M12
(Superseded to BF-000-1077)

$

$

Not available

19

Cub Cadet YS-000-1106

HEX NUT M12
(Superseded to BF-000-1106)

$

$

Not available

20

Cub Cadet YS-160-5021

FLAT WASHER 5/16"

$

$

Not available

21

Cub Cadet YS-160-5017

LOCK WASHER 5/16"

$

$

Not available

22

Cub Cadet YS-000-6647

CAP
(Superseded to BF-000-6647)

$

$

Not available
