PHD 200 (59A40037727) - Cub Cadet Yanmar Tractor Post Hole Digger Driveline Version 01 Parts Diagram

Tractor Post Hole Digger

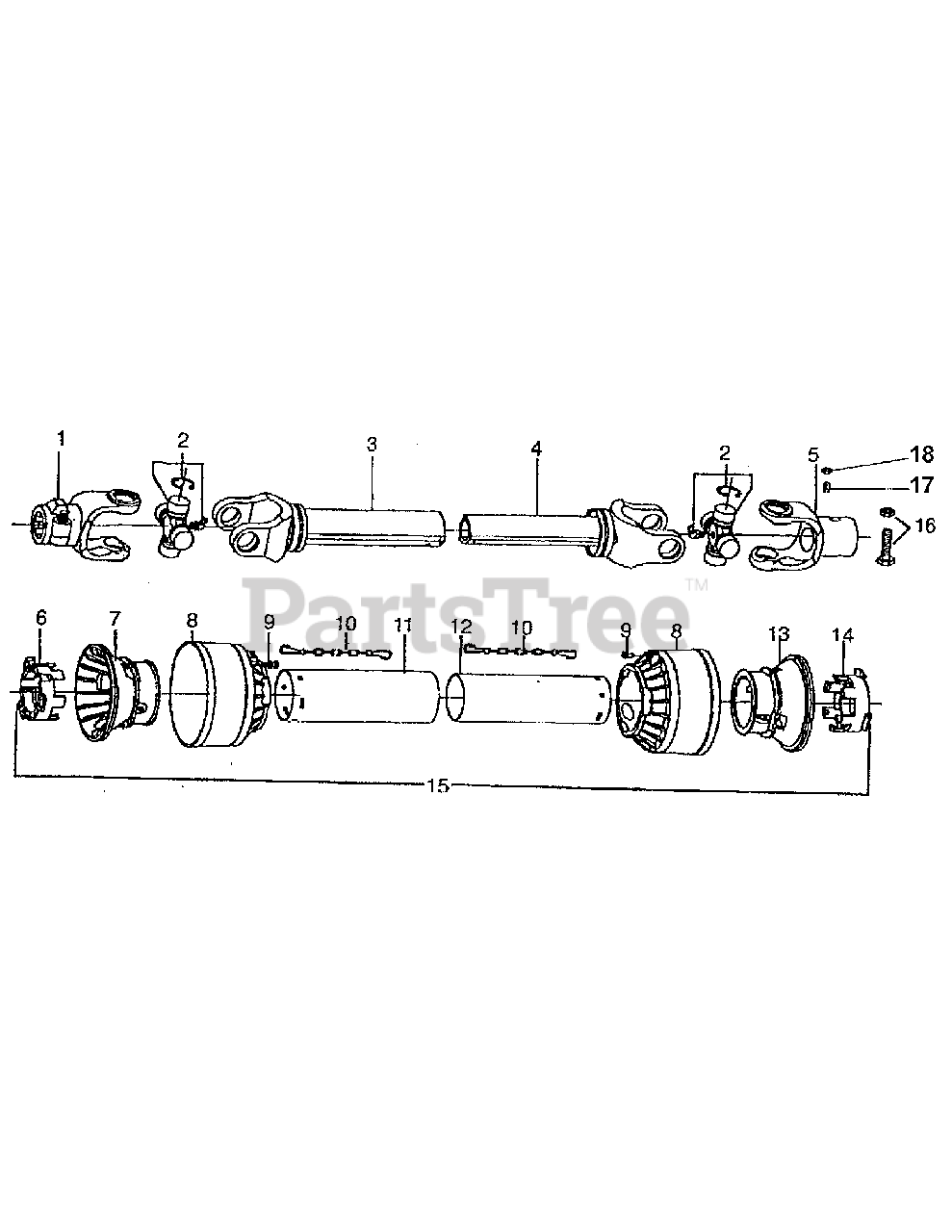

Driveline Version 01 Parts Diagram

  • Title
1

Cub Cadet YS-023-001E

YOKE ASSEMBLY (TRACTOR END)
(Superseded to BF-023-001E)

$

$

Not available

2

Cub Cadet YS-013-130E

CROSS ASSEMBLY
(Superseded to BF-013-130E)

$

$

Not available

3

Cub Cadet YS-503-318B

OUTER TUBE W/YOKE

$

$

Not available

4

Cub Cadet YS-503-319B

INNER TUBE W/YOKE

$

$

Not available

5

Cub Cadet YS-503-355B

YOKE ASSEMBLY (IMPLEMENT END)

$

$

Not available

6

Cub Cadet YS-503-335B

TUBE BEARING, OUTER

$

$

Not available

7

Cub Cadet YS-503-323B

OUTER TUBE RIGID CONE
(Superseded to BF-503-323B)

$

$

Not available

8

Cub Cadet YS-503-324B

SOFT CONE
(Superseded to BF-503-324B)

$

$

Not available

9

Cub Cadet YS-503-325B

PIN, STOP ROTATION
(Superseded to BF-503-325B)

$

$

Not available

10

Cub Cadet YS-502-889B

ANTI-ROTATION CHAIN
(Superseded to BF-502-889B)

$

$

Not available

11

$

$

Not available

12

$

$

Not available

13

Cub Cadet YS-503-328B

INNER TUBE W/RIGID CONE
(Superseded to BF-503-328B)

$

$

Not available

14

Cub Cadet YS-503-337B

TUBE BEARING, INNER

$

$

Not available

15

Cub Cadet YS-503-358B

SHIELD, COMPLETE

$

$

Not available

16

Cub Cadet YS-503-254B

3/8" X 3" GR2 SHEAR BOLT W/NUT

$

$

Not available

17

Cub Cadet YS-501-568B

1/4" SET SCREW
(Superseded to BF-501-568B)

$

$

Not available

18

Cub Cadet YS-503-425B

1/4" HEX NUT

$

$

Not available

Cub Cadet YS-948-807B

DRIVE SHAFT COMPLETE

Note: Not shown

$

$

Not available
