PH 65Y21RHP (961420037-00) - Poulan Pro Walk-Behind Mower (2007-01) Frame Parts Diagram

Walk-Behind Mower

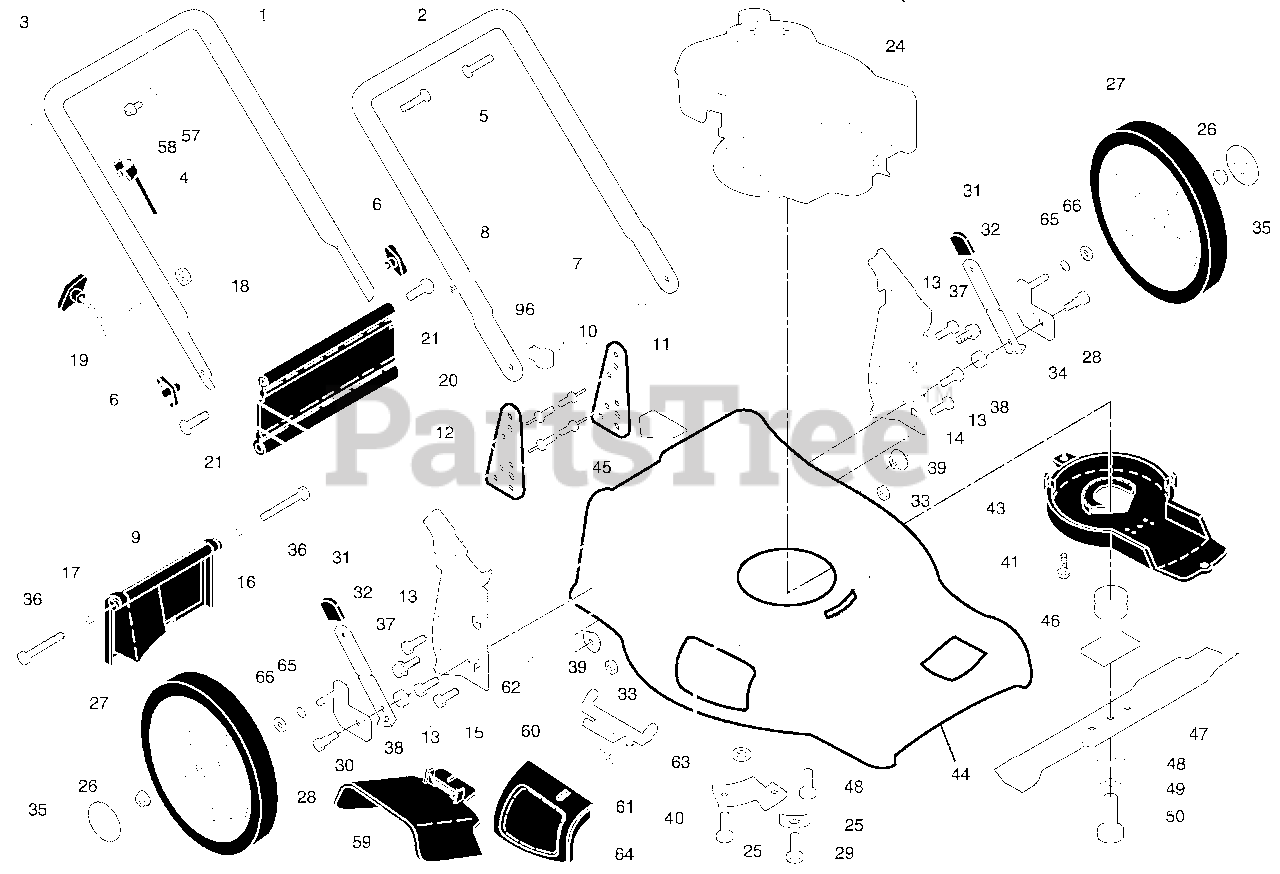

Frame Parts Diagram

  • Title

1

Electrolux/AYP 194200X479

Upper Handle
(Superseded to 532427738)

$30.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 151721X479

Lower Handle
(Superseded to 532175245)

$

$

Not available

3

Electrolux/AYP 194199X421

Control Bar
(Superseded to 532414806)

$21.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 183567

Engine Zone Control Cable
(Superseded to 532183567)

$17.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 191574

Handle Bolt
(Superseded to 532191574)

$6.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 189713X428

Handle Knob
(Superseded to 532185577)

$9.49

$

In Stock, Qty 13

0

7

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 401812X428

Rear Door Assembly
(Superseded to 532401812)

$34.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 128415

Pop Rivet
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 406573X479

Support Bracket, LH
(Superseded to 532406573)

$7.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 406574X479

Support Bracket, RH
(Superseded to 532410542)

$7.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 17060410

Screw 1/4-20 x 5/8
(Superseded to 817060410)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 175576X479

Handle Bracket Assembly, LH
(Superseded to 532433866)

$13.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 175577X479

Handle Bracket Assembly, RH
(Superseded to 532434512)

$14.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 405417

Spring, Rear Door, LH
(Superseded to 532405417)

$9.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 405418

Spring, Rear Door, RH
(Superseded to 532405418)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 132004

Keps Locknut 1/4-20

$

$

Not available

19

Electrolux/AYP 194788

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 189005

Rear Skirt
(Superseded to 532413159)

$17.99

$

In Stock, only 3 left!

0

21

Electrolux/AYP 88652

Hinge Screw 1/4-20 x 1-1/4
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

24

Engine, Honda, Model Number GCV190 (For engine service and replacement parts, call Honda Engines at 1-800-426-7701)

$

$

Not available

25

Electrolux/AYP 150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 2
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

26

Murray 145212

Nut, Hex, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 408852X421

Wheel & Tire Assembly, Rear, 12"
(Superseded to 532433591)

$109.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 160828

Bolt, Shoulder 5/16-18
(Superseded to 532160828)

$

$

Not available

29

Electrolux/AYP 851201X004

Washer, Special, Engine

$

$

Not available

30

Electrolux/AYP 193126X004

Axle Arm Assembly, Rear, RH
(Superseded to 532402571)

$

$

Not available

31

Electrolux/AYP 701037X421

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

32

Electrolux/AYP 175060X004

Selector Spring

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 73800500

Nut, Hex, Nylock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 193127X004

Axle Arm Assembly, Rear, LH
(Superseded to 532402572)

$

$

Not available

35

Electrolux/AYP 407794X421

Hubcap
(Superseded to 532438314)

$14.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 184193

Bolt, Rear Door
(Superseded to 532184193)

$

$

Not available

37

Electrolux/AYP 74780512

Thread Cutting Screw w/Sems 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 19112206

Washer, Flat
(Superseded to 819112206)

$5.99

$

In Stock, Qty 5

0

39

Electrolux/AYP 198541

Nut, Hex 3/8-16
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 188839X004

Mounting Bracket, Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 192325

Screw, Debris Shield
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 405844

Debris Shield
(Superseded to 532443950)

$

$

Not available

44

Electrolux/AYP 412215

Kit, Housing
(Superseded to 583336401)

Note: (Includes Key Numbers 10, 11, 12, 45)

$122.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 404763

Danger Decal

$2.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 194037

Blade Adapter / Pulley
(Superseded to 532443950)

$

$

Not available

47

Electrolux/AYP 406712

Blade, 21"
(Superseded to 532406712)

$20.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 2 left!

0

49

Electrolux/AYP 850263

Helical Washer 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 851084

Blade Bolt, Hex Head, Grade 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 850733X004

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

58

Electrolux/AYP 750634

Screw
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

59

Electrolux/AYP 175071

Discharge Deflector
(Superseded to 532175071)

$20.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 175735

Hinge Bracket
(Superseded to 532175735)

$

$

Not available

61

Electrolux/AYP 193000

Spring
(Superseded to 532193000)

$7.49

$

In Stock, only 3 left!

0

62

Electrolux/AYP 175650

Rod, Hinge
(Superseded to 532175650)

$7.49

$

In Stock, Qty 10

0

63

Electrolux/AYP 73800400

Nut, Hex
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 175066

Mulcher Door
(Superseded to 532175066)

$11.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 197480

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 88348

Washer, Flat 1/2
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

96

Electrolux/AYP 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

96

Electrolux/AYP 404764

Warning Decal
(Superseded to 532404764)

Note: (not shown)

$8.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 193733

Operator's Manual, English
(Superseded to 917193733)

$

$

Not available

96

Electrolux/AYP 193736

Operator's Manual, French

$

$

Not available

96

Electrolux/AYP 412264

Repair Parts Manual

$

$

Not available
