PF 21 - Husqvarna Proflex Swedish Riding Mower (2002-05) HOOD Parts Diagram

Proflex Swedish Riding Mower

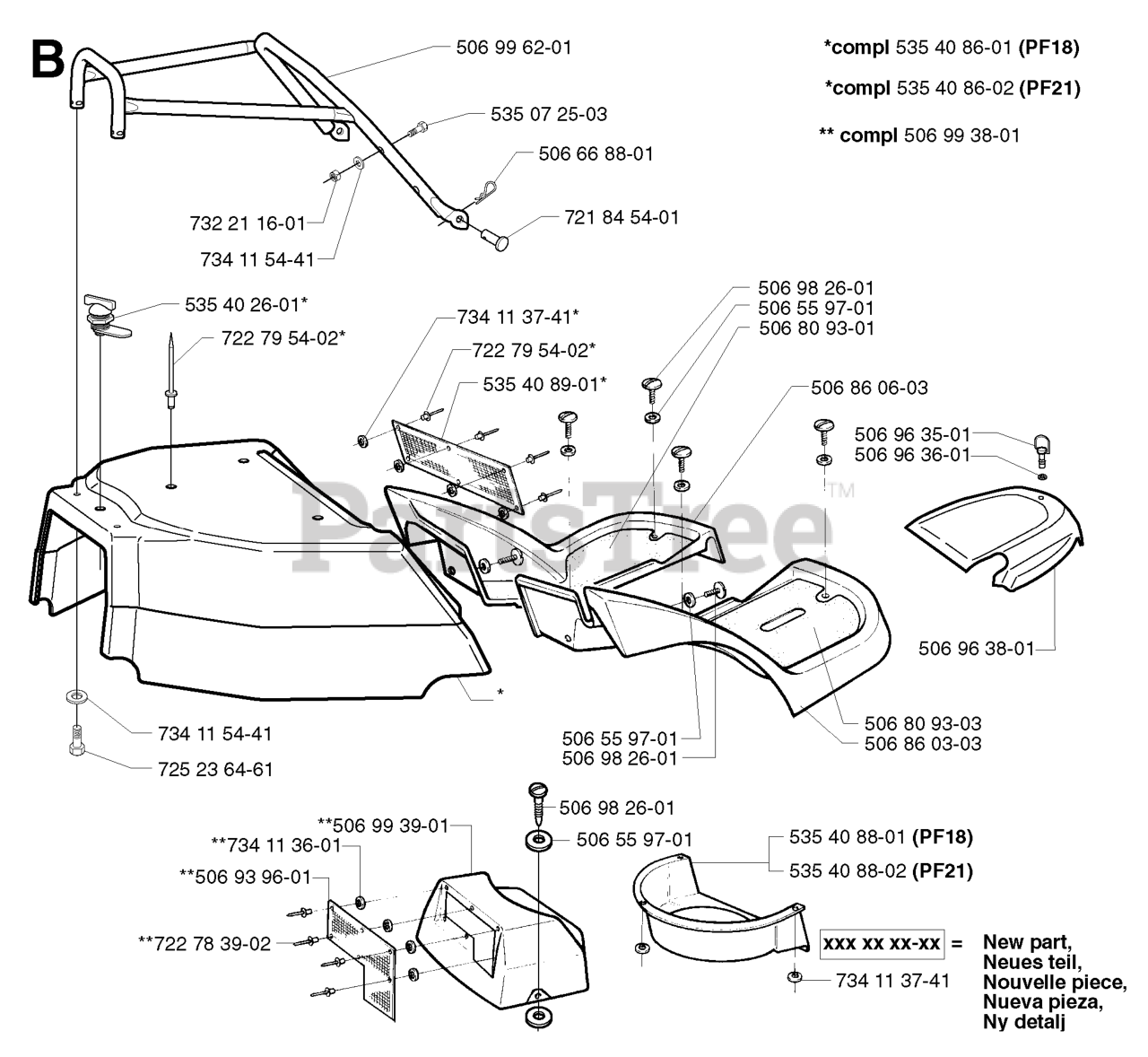

HOOD Parts Diagram

  • Title

506 98 26-01

Husqvarna 506982601

SCREW

$6.99

$

In Stock, Qty 6

0

506 99 38-01

Husqvarna 506993801

COVER

$

$

Not available

506 99 62-01

Husqvarna 506996201

LOOP

$

$

Not available

722 79 54-02

Husqvarna 722795402

Rivet

$

$

Not available

734 11 54-41

Husqvarna 734115441

WASHER - 26X6.5X1.6
(Superseded to 531003379)

$4.99

$

In Stock, only 1 left!

0

506 86 03-03

Husqvarna 506860303

FOOT REST

$

$

Not available

506 96 35-01

Husqvarna 506963501

BOLT
(Superseded to 525390601)

$10.99

$

Usually ships in 3-10 days

0

506 93 96-01

Husqvarna 506939601

SCREEN

$

$

Not available

506 55 97-01

Husqvarna 506559701

WASHER

$5.99

$

In Stock, only 4 left!

0

722 78 39-02

Husqvarna 722783902

Rivet

$

$

Not available

506 66 88-01

Husqvarna 506668801

PIN

$

$

Not available

535 40 86-01

Husqvarna 535408601

ENGINE HOOD

Note: PF18

$

$

Not available

721 84 54-01

Husqvarna 721845401

BOLT

$

$

Not available

734 11 37-41

Husqvarna 734113741

WASHER

$4.99

$

Usually ships in 3-10 days

0

535 07 25-03

Husqvarna 535072503

BOLT

$

$

Not available

506 86 06-03

Husqvarna 506860603

FOOT REST

$

$

Not available

506 80 93-01

Husqvarna 506809301

MAT, L.H.

$

$

Not available

506 96 38-01

Husqvarna 506963801

COVER
(Superseded to 535415501)

$

$

Not available

506 99 39-01

Husqvarna 506993901

$

$

Currently unavailable

732 21 16-01

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

725 23 64-61

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

535 40 86-02

Husqvarna 535408602

ENGINE HOOD

Note: PF21

$

$

Not available

535 40 88-01

Husqvarna 535408801

AIR DUCT

Note: PF18

$

$

Not available

535 40 26-01

Husqvarna 535402601

RETAINER

$

$

Not available

535 40 88-02

Husqvarna 535408802

AIR DUCT

Note: PF21

$

$

Not available

535 40 89-01

Husqvarna 535408901

SCREEN

$

$

Not available

734 11 36-01

Husqvarna 734113601

WASHER

$4.99

$

Usually ships in 3-10 days

0

506 96 36-01

Husqvarna 506963601

WASHER

$

$

Not available

506 80 93-03

Husqvarna 506809303

MAT-RH

$

$

Not available
