PF 18 - Husqvarna Proflex Swedish Riding Mower (2000-03) PROTECTION FRAME 2 Parts Diagram

Proflex Swedish Riding Mower

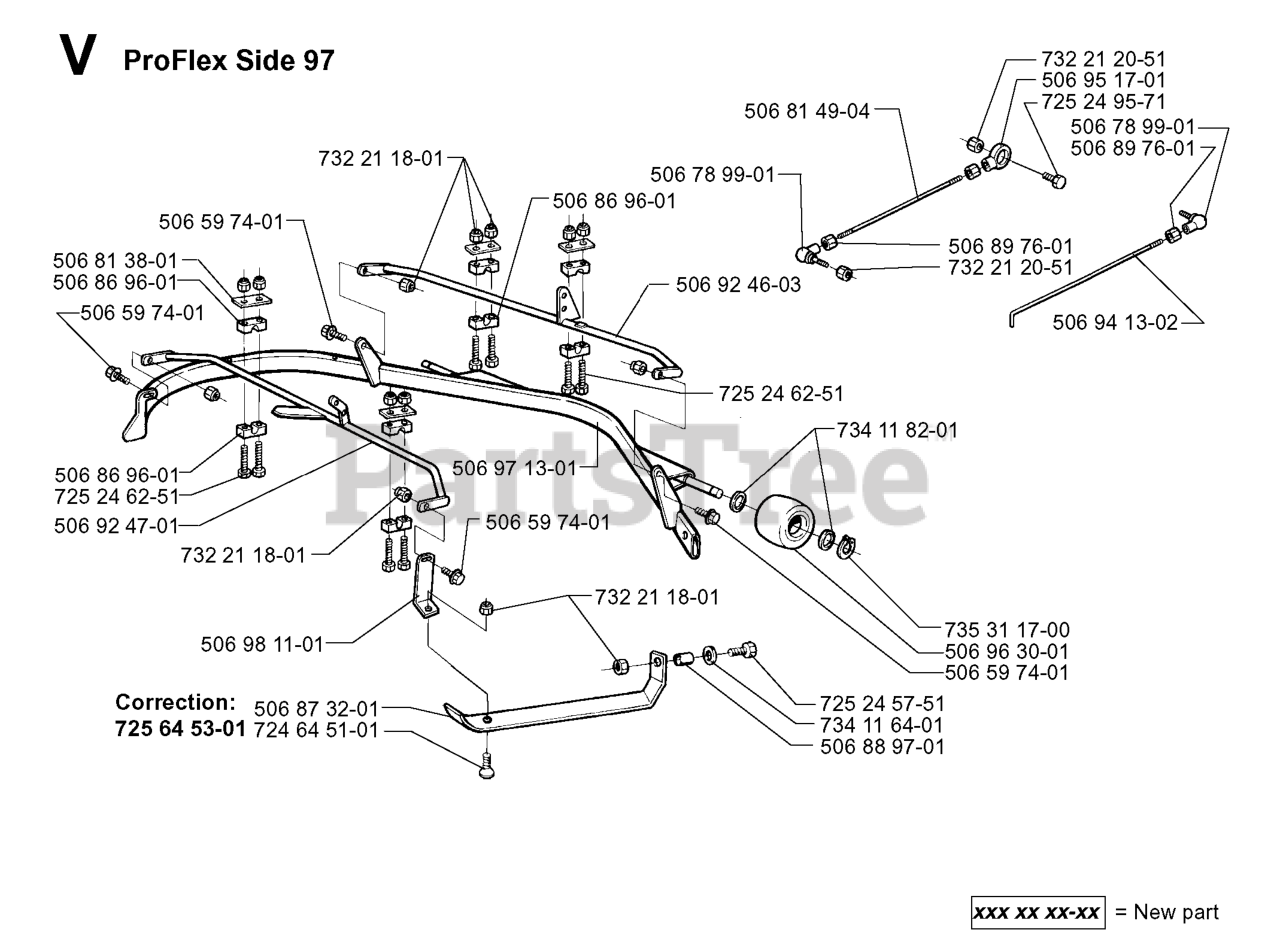

PROTECTION FRAME 2 Parts Diagram

  • Title

506 87 32-01

Husqvarna 506873201

Rail

$

$

Not available

506 86 96-01

Husqvarna 506869601

BEARING

$

$

Not available

506 59 74-01

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

506 81 49-04

Husqvarna 506814904

ROD

$

$

Not available

732 21 20-51

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

506 92 46-03

Husqvarna 506924603

PIPE

$

$

Not available

506 94 13-02

Husqvarna 506941302

ROD

$

$

Not available

734 11 64-01

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

725 24 57-51

Husqvarna 725245751

SCREW

$5.99

$

In Stock, only 1 left!

0

506 89 76-01

Husqvarna 506897601

NUT

$

$

Not available

725 24 62-51

Husqvarna 725246251

SCREW

$5.99

$

Usually ships in 3-10 days

0

506 78 99-01

Husqvarna 506789901

LINK

$102.99

$

Usually ships in 3-10 days

0

506 97 13-01

Husqvarna 506971301

NEEDS DESCRIPTION

$

$

Not available

735 31 17-00

Husqvarna 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 7

0

734 11 82-01

Husqvarna 734118201

WASHER

$5.99

$

In Stock, Qty 13

0

506 88 97-01

Husqvarna 506889701

SPACER

$

$

Not available

506 95 17-01

Husqvarna 506951701

LINK

$45.99

$

Usually ships in 3-10 days

0

725 64 53-01

Husqvarna 725645301

SCREW

Note: CORRECTION:

$4.99

$

Usually ships in 3-10 days

0

506 98 11-01

Husqvarna 506981101

BRACKET

$

$

Not available

506 92 47-01

Husqvarna 506924701

TUBE

$

$

Not available

506 96 30-01

Husqvarna 506963001

DECK ROLLER, FRONT

$62.99

$

In Stock, Qty 14

0

506 81 38-01

Husqvarna 506813801

PLATE

$6.99

$

Usually ships in 3-10 days

0

725 24 95-71

Husqvarna 725249571

SCREW

$1.99

$

In Stock, Qty 10

0
