Performance 30 (CMGB223103) (31AH5D3HB93) - Craftsman 30" Snow Blower (2022) Auger Housing Parts Diagram

30" Snow Blower

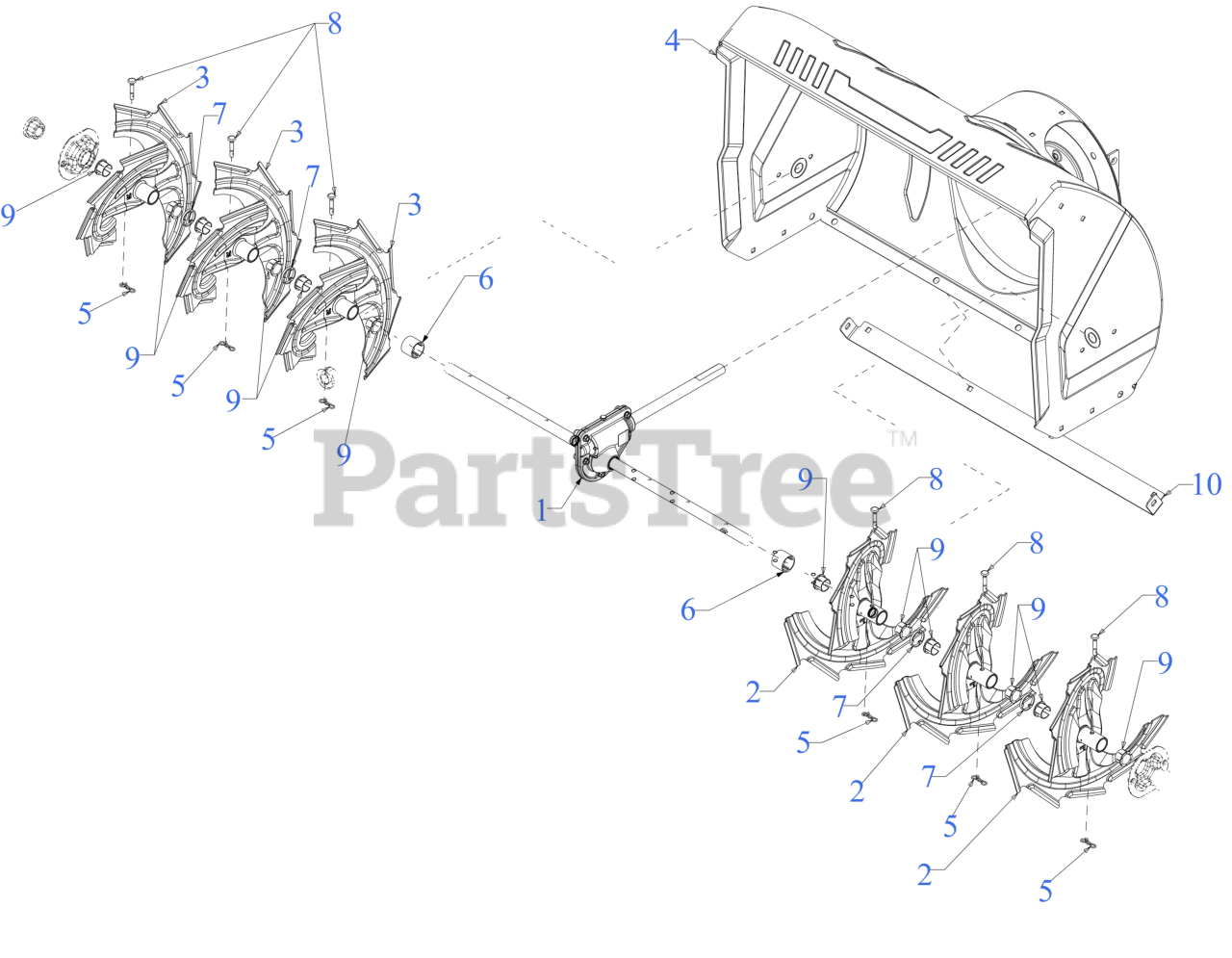

Auger Housing Parts Diagram

  • Title
1

MTD 918-04165B

AUGER GEARBOX ASSEMBLY 30"

Note: (See Separate Breakdown)

$447.99

$

In Stock, only 1 left!

0

2

MTD 684-06760

10T AUGER SPIRAL (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

Usually ships in 3-6 days

0

3

MTD 684-06761

10T AUGER SPIRAL (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

Usually ships in 3-6 days

0

4

MTD 684-06776

30" AUGER HOUSING

Note: *CHOOSE COLOR WHEN ORDERING*

$162.99

$

Usually ships in 3-6 days

0

5

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

MTD 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 20+

0

7

MTD 731-04871

SPCR 1.25 OD x 75IDX2.00LG

$6.99

$

In Stock, Qty 20+

0

8

MTD 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

9

MTD 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

10

MTD 790-03929

30" SHAVE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$20.99

$

Usually ships in 3-6 days

0
