PEM 65Y21RP (961410090-00) - Poulan Pro Walk-Behind Mower (2006-06) Repair Parts Parts Diagram

Walk-Behind Mower

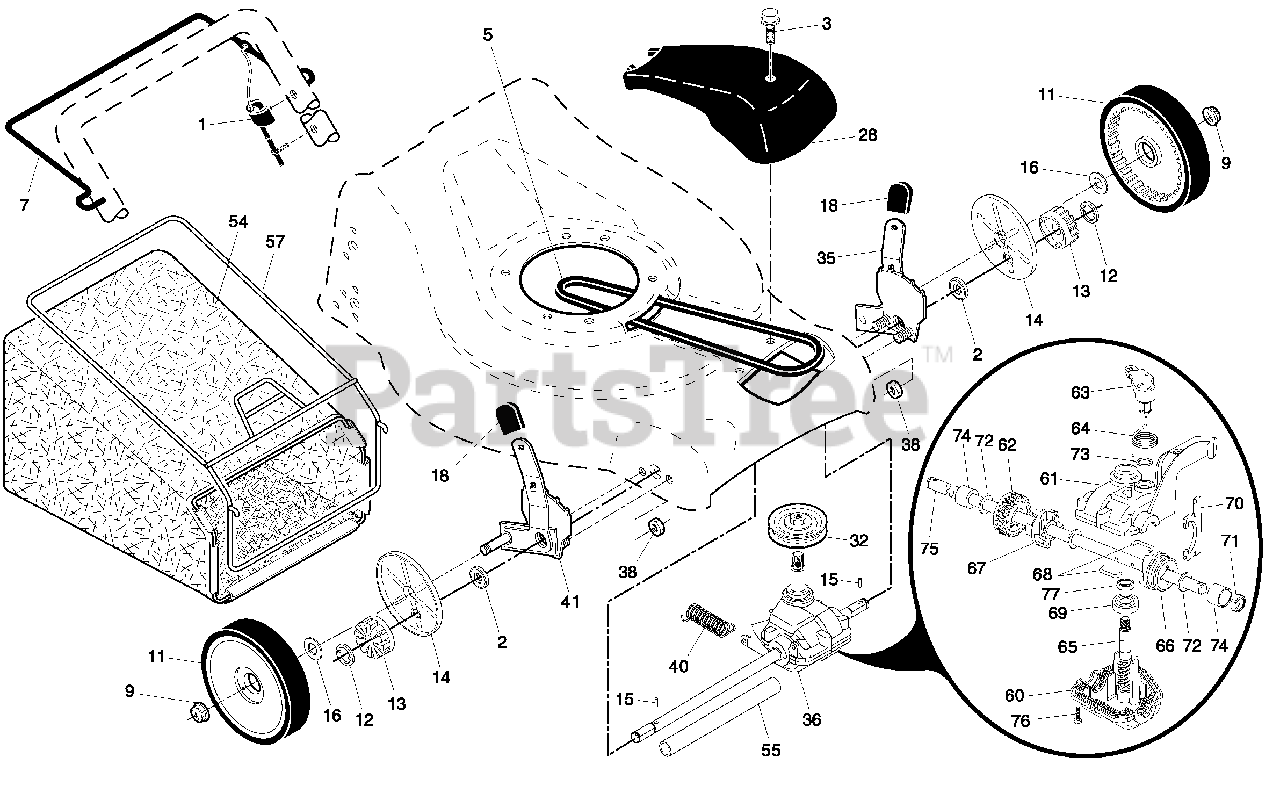

Repair Parts Parts Diagram

  • Title

1

Electrolux/AYP 532194653

Control Cable Assembly

$26.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 532191039

Bearing, Wheel Adjuster
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

3

Electrolux/AYP 532175262

Pan Head Tapping Screw #10-24 x 2-3/4

$7.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532175436

V-Belt

$24.99

$

In Stock, Qty 5

0

6

Electrolux/AYP 532150495

Spring Retainer

$7.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 532198453

Control Bar, Drive

$37.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532083923

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 532197986

Wheel & Tire Assembly
(Superseded to 581009201)

$34.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 812000058

E-Ring

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532750003

Pinion
(Superseded to 532403849)

$6.99

$

In Stock, Qty 8

0

14

Electrolux/AYP 532189403

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 532191017

Pawl, Drive
(Superseded to 532404845)

$5.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 532087877

Selector Knob

$6.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 532403432

Drive Cover
(Superseded to 532437165)

$15.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532194126

Drive Pulley

$

$

Not available

35

Electrolux/AYP 532195110

Kit, Wheel Adjuster, LH
(Superseded to 581497908)

Note: (Includes Knob and Bearing)

$22.99

$

In Stock, Qty 8

0

36

Electrolux/AYP 532194935

Gearcase Assembly, Complete

$145.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 873800400

Locknut, Hex 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532137090

Spring

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 532195107

Kit, Wheel Adjuster, RH
(Superseded to 581497907)

Note: (Includes Knob and Bearing)

$

$

Not available

54

Electrolux/AYP 532402460

Grassbag Assembly
(Superseded to 532410667)

$87.99

$

In Stock, only 3 left!

0

55

Electrolux/AYP 532175739

Driveshaft Cover

$

$

Not available

57

Electrolux/AYP 532194643

Frame, Grassbag

$

$

Not available

60

Electrolux/AYP 532183497

Case, Lower

$15.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 532183498

Case, Upper

$15.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532183499

Gear, 27 Teeth

$17.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 532183500

Lever, Clutch

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532183501

Spring, Return

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 532183502

Shaft, Input

$30.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 532183503

Dog, Movable

$6.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 532183504

Dog, Fixed

$4.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 532183505

Wire, Formed

$6.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 532183507

Fork, Shift

$9.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 532183508

Seal, Output Shaft

$11.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 532183510

Seal, Case

$6.49

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 532183511

Bushing

$5.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 532196613

Shaft, Output

$54.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 532183513

Screw

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 532183514

Seal, Input Shaft

$7.99

$

In Stock, only 2 left!

0
