PEM 65Y21RHP (961410091-01) - Poulan Pro Walk-Behind Mower (2006-06) Rotary Lawn Mower Parts Diagram

Walk-Behind Mower

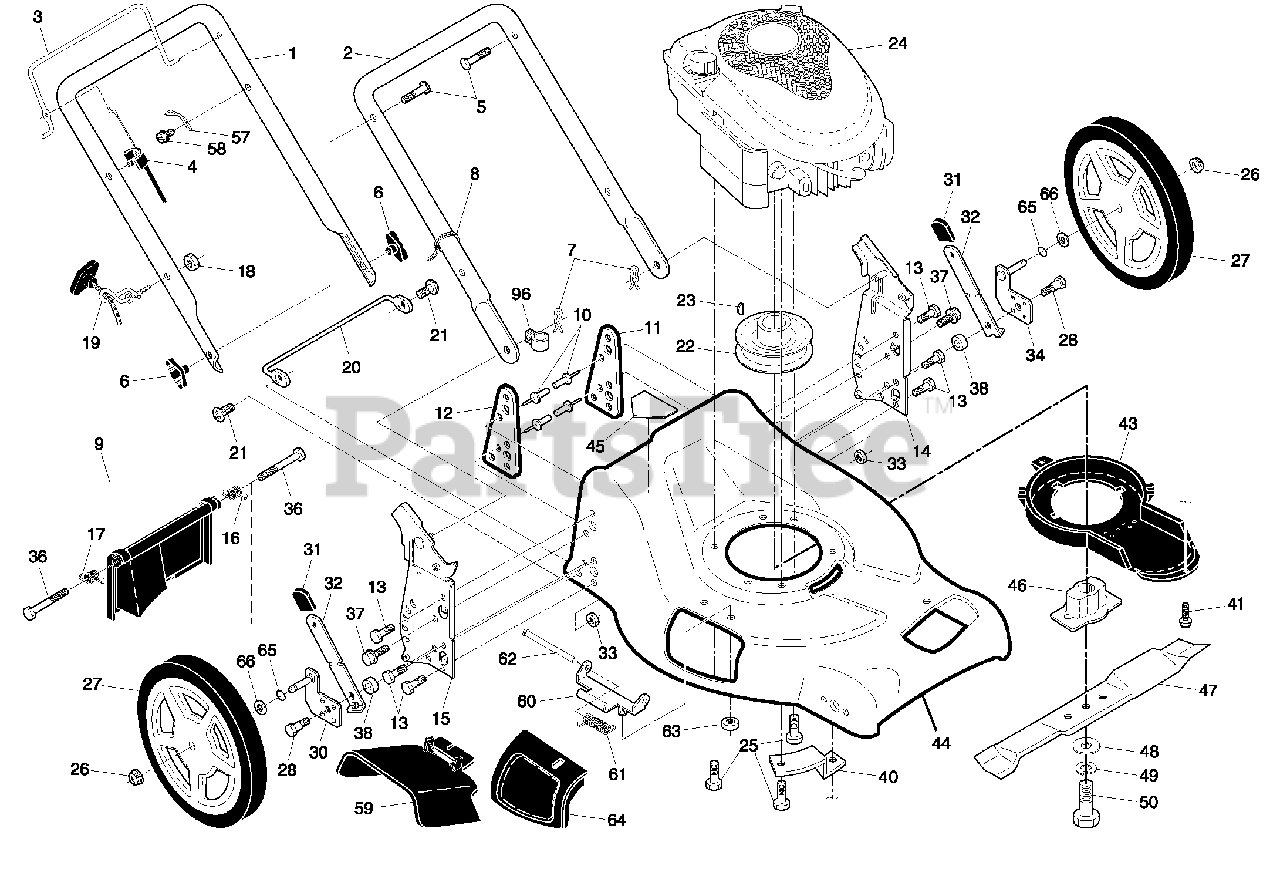

Rotary Lawn Mower Parts Diagram

  • Title

1

Electrolux/AYP 532198459

Upper Handle
(Superseded to 583718901)

$30.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532153605

Lower Handle
(Superseded to 532151721)

$

$

Not available

3

Electrolux/AYP 532198464

Control Bar

$

$

Not available

4

Electrolux/AYP 532183567

Engine Zone Control Cable

$17.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 532191574

Handle Bolt

$6.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 532191938

Handle Knob
(Superseded to 532189713)

$9.49

$

In Stock, Qty 20+

0

7

Electrolux/AYP 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532180479

Rear Door Kit

Note: (Includes Key Numbers 16 and 17)

$40.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532182538

Support Bracket, LH

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532182539

Support Bracket, RH
(Superseded to 532175070)

$20.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 817060410

Screw 1/4-20 x 5/8

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532182543

Handle Bracket Assembly, LH
(Superseded to 532175576)

$13.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532182545

Handle Bracket Assembly, RH
(Superseded to 532434512)

$14.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532180071

Spring, Rear Door, LH

$

$

Not available

17

Electrolux/AYP 532180072

Spring, Rear Door, RH

$7.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 532132004

Keps Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 532179205

Foot Guard, C.E.

$

$

Not available

21

Electrolux/AYP 532054583

Screw, Tapping 1/4-20 x 1/2

$

$

Not available

22

Electrolux/AYP 532184941

Engine Pulley

$

$

Not available

23

Electrolux/AYP 532187723

Hi-Pro Key

$

$

Not available

24

Engine, Briggs & Stratton, Model Number 124K02

Note: (order parts from engine manufacturer)

$

$

Not available

25

Electrolux/AYP 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532145212

Hex Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 532403167

Wheel & Tire Assembly
(Superseded to 583717101)

$

$

Not available

28

Electrolux/AYP 532160828

Shoulder Bolt 5/16-18 x .33

$

$

Not available

30

Electrolux/AYP 532402571

Axle Arm Assembly, Rear, RH

$

$

Not available

31

Electrolux/AYP 532087877

Selector Knob

$6.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 532190157

Selector Spring

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 873800500

Nut, Hex 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 532402572

Axle Arm Assembly, Rear, LH

$

$

Not available

36

Electrolux/AYP 532184193

Bolt, Hex Head

$

$

Not available

37

Electrolux/AYP 532150078

Screw 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 819112206

Spacer

$5.99

$

In Stock, Qty 5

0

40

Electrolux/AYP 532190939

Mounting Bracket, Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532192325

Screw

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 532188784

Debris Shield

$9.99

$

In Stock, only 1 left!

0

44

Electrolux/AYP 532400733

Kit, Housing

Note: (Includes Key No.s 10, 11, 12 and 45)

$

$

Not available

45

Electrolux/AYP 532182166

Danger Decal
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

46

Electrolux/AYP 532184632

Blade Adapter
(Superseded to 583135201)

$15.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 532199377

Blade, 21"
(Superseded to 539113233)

$27.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 532851074

Hardened Washer

$4.99

$

In Stock, Qty 7

0

49

Electrolux/AYP 532850263

Helical Washer 3/8-24 x 1-3/8 Grade 8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 532125162

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

58

Electrolux/AYP 532750634

Screw, Threaded 10-24 x 1/2

$6.49

$

In Stock, Qty 5

0

59

Electrolux/AYP 532175071

Discharge Deflector

$20.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 532175735

Hinge Bracket

$

$

Not available

61

Electrolux/AYP 532193000

Spring, Torsion

$7.49

$

In Stock, only 4 left!

0

62

Electrolux/AYP 532175650

Hinge Rod

$7.49

$

In Stock, Qty 11

0

63

Electrolux/AYP 873800400

Nut, Hex
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532175066

Mulcher Door

$11.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 532088348

Washer, Flat

$7.49

$

In Stock, only 3 left!

0

96

Electrolux/AYP 532197991

Clip, Cable

$7.49

$

In Stock, Qty 6

0

96

Electrolux/AYP 532182191

Decal, Warning

Note: (not shown)

$3.49

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 532403254

Operator's Manual, European

$

$

Not available

96

Electrolux/AYP 532403255

Operator's Manual, Scandinavian

$

$

Not available

96

Electrolux/AYP 532405228

Repair Parts Manual, English

$

$

Not available
