PE 550 - Weed Eater Edger, Type 1 Engine Type - 1 Parts Diagram

Edger, Type 1

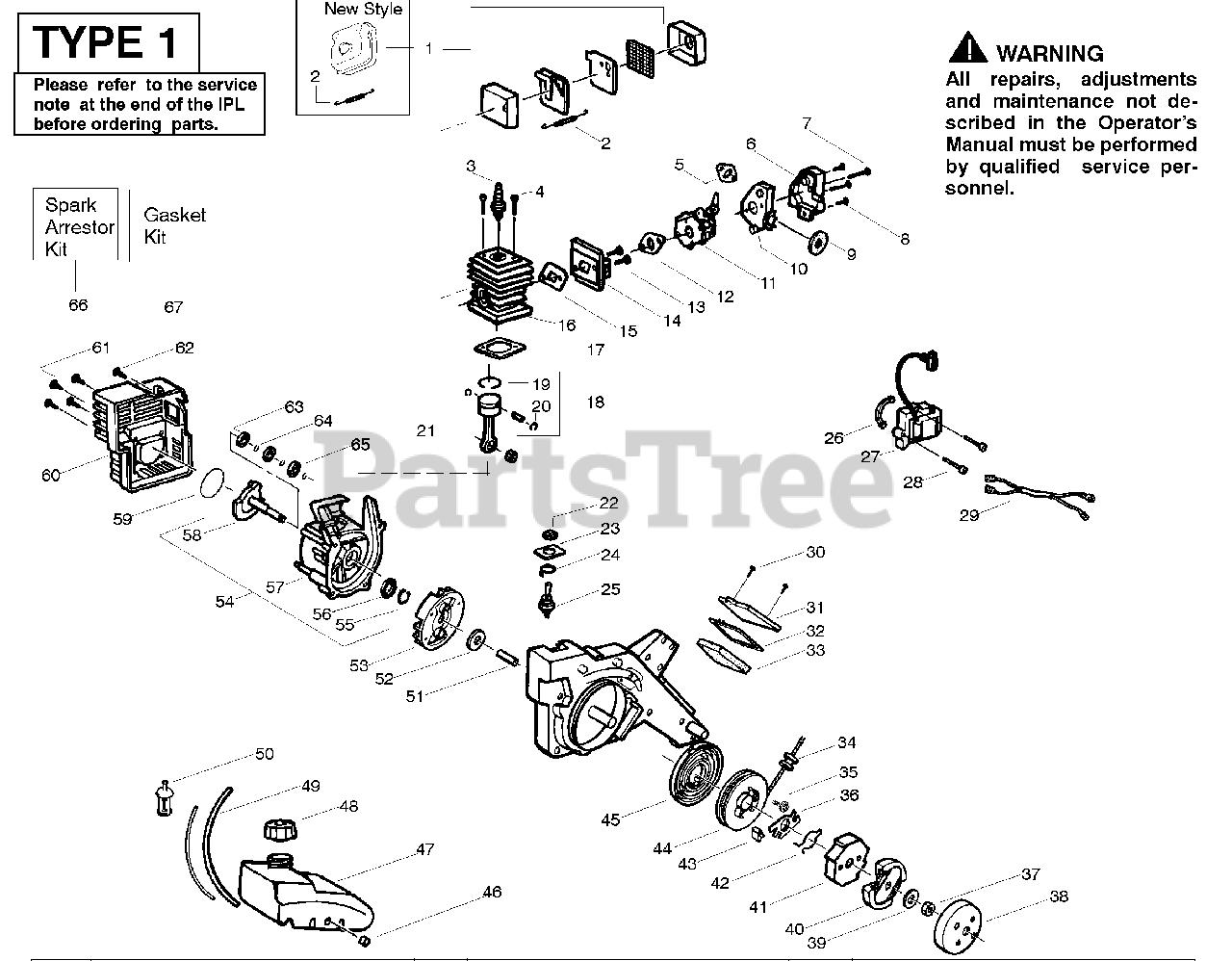

Engine Type - 1 Parts Diagram

  • Title

1

Poulan 530069989

Kit-Muffler (Old Style)

Note: (incl.#3)

$6.49

$

Usually ships in 3-10 days

0

1

Poulan 530071309

Kit-Muffler (New Style)
(Superseded to 530071390)

Note: (incl.#3)

$18.99

$

Usually ships in 3-10 days

0

2

Poulan 530016197

Spring-Muffle (Old Style)

$4.99

$

In Stock, Qty 5

0

2

Poulan 530042088

Spring-Muffle (New Style)

$3.99

$

In Stock, only 1 left!

0

3

Poulan 952030201

Plug-Spark (RCJ-8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

4

Poulan 530015953

Screw

$6.49

$

In Stock, Qty 7

0

5

Poulan 530069913

Gasket-Carb/Bracket(kit)

$8.99

$

Usually ships in 3-10 days

0

6

Poulan 530036622

Cover-Air Box

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530015887

Screw

$4.99

$

In Stock, only 2 left!

0

8

Poulan 530015886

Screw

$6.49

$

In Stock, only 3 left!

0

9

Poulan 530069913

Seal-Foam (kit)

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 530036626

Base-Air Box

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530069654

Kit-Carb. (WT308)
(Superseded to 530071634)

$66.99

$

In Stock, only 1 left!

0

12

Poulan 530069913

Gasket-Carb.(kit)

$8.99

$

Usually ships in 3-10 days

0

13

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

14

Poulan 530052236

Adapter-Carb.
(Superseded to 530057618)

$

$

Not available

15

Poulan 530069913

Gasket-Cyl./Carb. (kit)

$8.99

$

Usually ships in 3-10 days

0

16

Poulan 530069757

Kit-Cylinder
(Superseded to 582144301)

$

$

Not available

17

Poulan 530069913

Gasket-Cyl. (kit)

$8.99

$

Usually ships in 3-10 days

0

18

Poulan 530069987

Kit-Piston

Note: (incl.20,pin)

$27.99

$

Usually ships in 3-10 days

0

19

Poulan 530015162

Retainer-Pin

$6.49

$

In Stock, only 1 left!

0

20

Poulan 530012472

Ring-Piston
(Superseded to 545154009)

$4.99

$

In Stock, only 2 left!

0

21

Poulan 530069615

Kit-Conn. Rod Assy.

$24.99

$

Usually ships in 3-10 days

0

22

Poulan 530016038

Boot-Switch w/nut

$

$

Not available

23

Poulan 530053921

Plate-Switch Indicator
(Superseded to 530053920)

$13.99

$

In Stock, only 1 left!

0

24

Poulan 530037066

Terminal-Grounding

$1.99

$

Usually ships in 3-10 days

0

25

Poulan 530053920

Assy-Gound Switch

Note: (incl. 22-24)

$13.99

$

In Stock, only 1 left!

0

26

Poulan 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

27

Poulan 530039163

Module-Ignition

$53.99

$

In Stock, only 1 left!

0

28

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 530014655

Assy-Switch Wire

$7.49

$

Usually ships in 3-10 days

0

30

Poulan 530015983

Screw

$1.99

$

Usually ships in 3-10 days

0

31

Poulan 530036631

Cover-Air Filter

$3.99

$

In Stock, only 2 left!

0

32

Poulan 530069913

Gasket-Cover (kit)

$8.99

$

Usually ships in 3-10 days

0

33

Poulan 530036664

Foam-Air Filter

$

$

Not available

34

Poulan 530037224

Eyelet

$1.99

$

In Stock, Qty 7

0

35

Poulan 530016080

Screw

$6.49

$

In Stock, only 1 left!

0

36

Poulan 530042073

Cam-Starter

$3.99

$

In Stock, Qty 9

0

37

Poulan 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

38

Poulan 530036665

Drum-Clutch

$

$

Not available

39

Poulan 530015127

Washer-Flywheel

$6.49

$

In Stock, only 2 left!

0

40

Poulan 530014832

Assy-Clutch

$

$

Not available

41

Poulan 530036922

Cup-Starter

$4.99

$

Usually ships in 3-10 days

0

42

Poulan 530042072

Wire-Starter Dog

$

$

Not available

43

Poulan 530027162

Dog-Starter

$6.49

$

In Stock, only 2 left!

0

44

Poulan 530069418

Kit-Starter Pulley

Note: (incl.35)

$12.99

$

In Stock, only 3 left!

0

45

Poulan 530037229

Spring-Starter
(Superseded to 545008006)

$

$

Not available

46

Poulan 530053725

Isolator-Crankcase
(Superseded to 545132401)

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 530047878

Assy-Fuel Tank
(Superseded to 580236101)

$

$

Not available

48

Poulan 530014347

Assy-Fuel Cap

$9.49

$

In Stock, Qty 15

0

49

Poulan 530069599

Kit-Fuel Line

$7.49

$

In Stock, Qty 5

0

50

Poulan 530014815

Assy-Fuel Pick-up
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

51

Poulan 530036927

Spacer-Flywheel

$3.99

$

In Stock, Qty 9

0

52

Poulan 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

53

Poulan 530039149

Assy-Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

54

Poulan 530014906

Assy-C/shaft & C/case
(Superseded to 530071625)

Note: (incl. 55-58, & 63-65)

$

$

Not available

55

Poulan 530015941

Retainer-C'shaft

$4.99

$

Usually ships in 3-10 days

0

56

Poulan 530019179

Seal-Crankcase

$

$

Not available

57

Poulan 530012414

Assy-C'case
(Superseded to 530071627)

Note: (incl.56,63-65)

$

$

Not available

58

Poulan 530052344

Assy-Crankshaft
(Superseded to 530071625)

$

$

Not available

59

Poulan 530069913

O-ring-c'case/shrd (kit)

$8.99

$

Usually ships in 3-10 days

0

60

Poulan 530036555

Shroud

$14.99

$

Usually ships in 3-10 days

0

61

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

62

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

63

Poulan 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

64

Poulan 530015945

Retainer-C'case

$3.99

$

Usually ships in 3-10 days

0

65

Poulan 530032124

Bearing-Outer

$7.49

$

Usually ships in 3-10 days

0

66

Poulan 530069380

Kit-Spark Arrestor (Old Style)

$6.49

$

Usually ships in 3-10 days

0

66

Poulan 530071290

Kit-Spark Arrestor (New Style)

$9.99

$

Usually ships in 3-10 days

0

67

Poulan 530069913

Kit Gasket

Note: (incl.5,9,12,15,17,32,59 )

$8.99

$

Usually ships in 3-10 days

0
