PE 550 (530087525) - Poulan Edger, Type 5 (2008-06) Engine - Type 5 Parts Diagram

Edger, Type 5

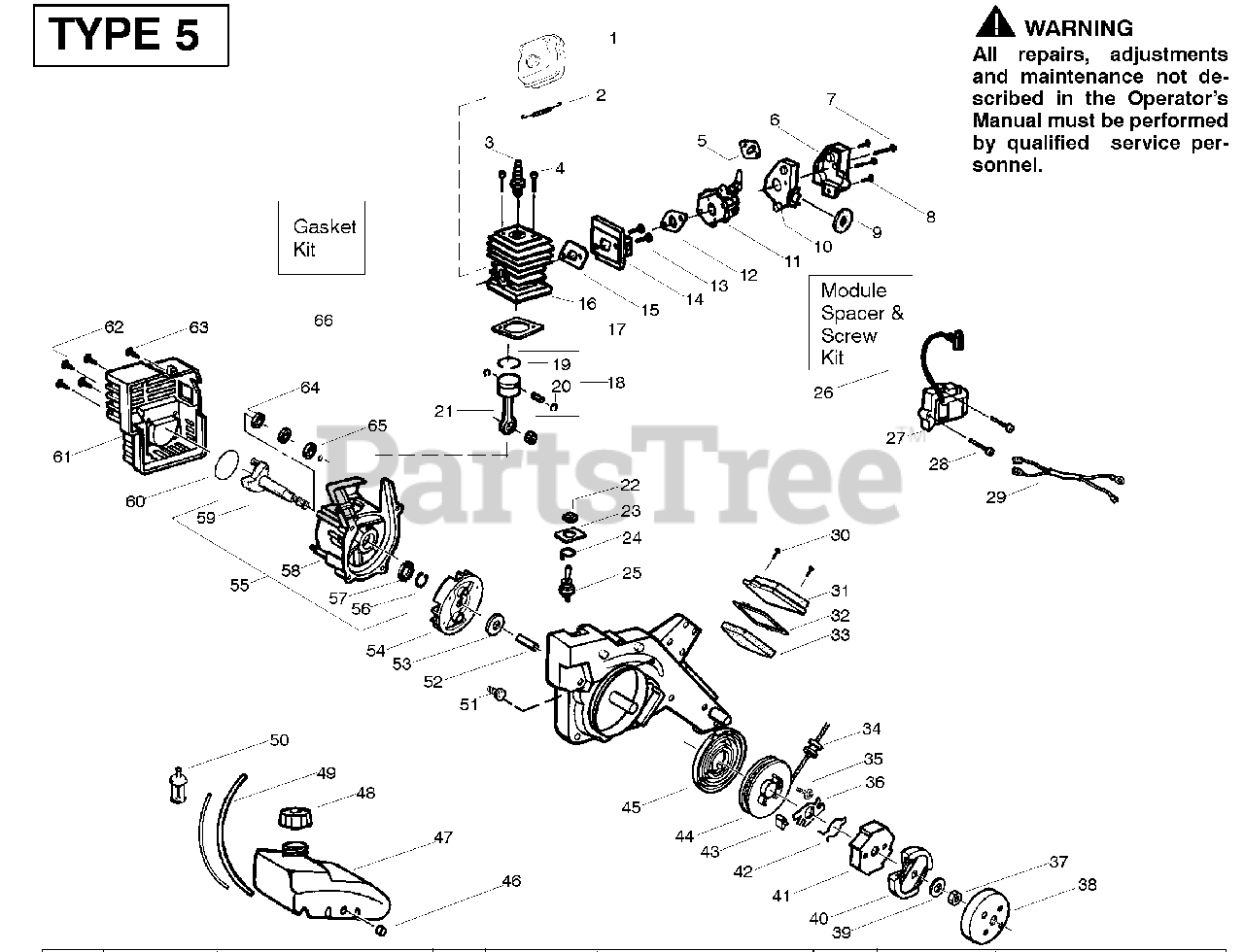

Engine - Type 5 Parts Diagram

  • Title

1

Electrolux/AYP 530071396

Kit-Muffler

Note: (incl.#2)

$

$

Not available

2

Electrolux/AYP 530042088

Spring-Muffler

$3.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 952030249

Plug-Spark (RCJ-6Y)

$4.49

$

In Stock, Qty 20+

0

4

Electrolux/AYP 530015953

Screw

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 530071611

Gasket-Carb/Bracket(kit)

$

$

Not available

6

Electrolux/AYP 530036622

Cover-Air Box

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530015887

Screw

$4.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 3 left!

0

9

Electrolux/AYP 530071611

Seal-Foam (kit)

$

$

Not available

10

Electrolux/AYP 530036626

Base-Air Box

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530071634

Kit-Carb. (Wt-630)

$66.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 530071611

Gasket-Carb.(kit)

$

$

Not available

13

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

14

Electrolux/AYP 530057618

Adapter-Carb.

$

$

Not available

15

Electrolux/AYP 530071611

Gasket-Cyl./Carb. (kit)

$

$

Not available

16

Electrolux/AYP 530012482

Cylinder

$37.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530071611

Gasket-Cyl. (kit)

$

$

Not available

18

Electrolux/AYP 530071476

Kit-Piston

Note: (incl.19,20)

$40.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530012472

Ring-Piston
(Superseded to 545154009)

$4.99

$

In Stock, only 4 left!

0

20

Electrolux/AYP 530015162

Retainer-Pin

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 530069945

Kit-Conn. Rod Assy.
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530016038

Boot-Switch w/nut

$

$

Not available

23

Electrolux/AYP 530053921

Plate-Switch Indicator
(Superseded to 530053920)

$13.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 530037066

Terminal-Grounding

$1.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530053920

Assy-Gound Switch

Note: (incl. 22-24)

$13.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 530071731

Kit-Mod. spacer/screw

$7.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 530039163

Module-Ignition

$53.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

29

Electrolux/AYP 530014655

Assy-Switch Wire

$7.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530015983

Screw

$1.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530057612

Cover-Air Filter

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530071611

Gasket-Cover (kit)

$

$

Not available

33

Electrolux/AYP 530057034

Foam-Air Filter

$

$

Not available

34

Electrolux/AYP 530037224

Eyelet

$1.99

$

In Stock, Qty 7

0

35

Electrolux/AYP 530015882

Screw

$

$

Not available

36

Electrolux/AYP 530042073

Cam-Starter

$3.99

$

In Stock, Qty 9

0

37

Electrolux/AYP 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530036665

Drum-Clutch

$

$

Not available

39

Electrolux/AYP 530015127

Washer-Flywheel

$6.49

$

In Stock, only 1 left!

0

40

Electrolux/AYP 530014832

Assy-Clutch

$

$

Not available

41

Electrolux/AYP 530036922

Cup-Starter

$4.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530042072

Wire-Starter Dog

$

$

Not available

43

Electrolux/AYP 530027162

Dog-Starter

$6.49

$

In Stock, only 2 left!

0

44

Electrolux/AYP 530069418

Kit-Starter Pulley

Note: (incl.35)

$12.99

$

In Stock, only 3 left!

0

45

Electrolux/AYP 530037229

Spring-Starter
(Superseded to 545008006)

$

$

Not available

46

Electrolux/AYP 530053725

Isolator-Crankcase
(Superseded to 545132401)

$3.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 530058782

Assy-Fuel Tank
(Superseded to 580236101)

Note: (incl. 48,49,50)

$

$

Not available

48

Electrolux/AYP 530014347

Assy-Fuel Cap

$9.49

$

In Stock, Qty 15

0

49

Electrolux/AYP 530069599

Kit-Fuel Line

$7.49

$

In Stock, only 2 left!

0

50

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 19

0

51

Electrolux/AYP 530057308

Clip-Pine Tree

$2.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 530036927

Spacer-Flywheel

$3.99

$

In Stock, Qty 9

0

53

Electrolux/AYP 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 530057751

Assy-Flywheel

$

$

Not available

55

Electrolux/AYP 545053001

Assy-C/shaft & C/case
(Superseded to 530071728)

Note: (incl. 56,58,59)

$

$

Not available

56

Electrolux/AYP 530015941

Retainer-C'shaft

$4.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 530019264

Seal

$7.49

$

In Stock, only 1 left!

0

58

Electrolux/AYP 545050501

Assy-C'case

Note: (incl.57,64,65)

$14.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 530014864

Assy-Crankshaft

$21.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 530071611

O-ring-c'case/shrd (kit)

$

$

Not available

61

Electrolux/AYP 530057607

Shroud

$13.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

63

Electrolux/AYP 530016349

Screw

$6.49

$

In Stock, only 2 left!

0

64

Electrolux/AYP 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 530055728

Bearing-Outer

$9.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 530071611

Kit Gasket

Note: (incl.5,9,12,15,17,32,60)

$

$

Not available
