PE 3500 - Poulan Edger Carburetor Assembly (WT380) PN 530069902, (WT520) 530069998 Parts Diagram

Edger

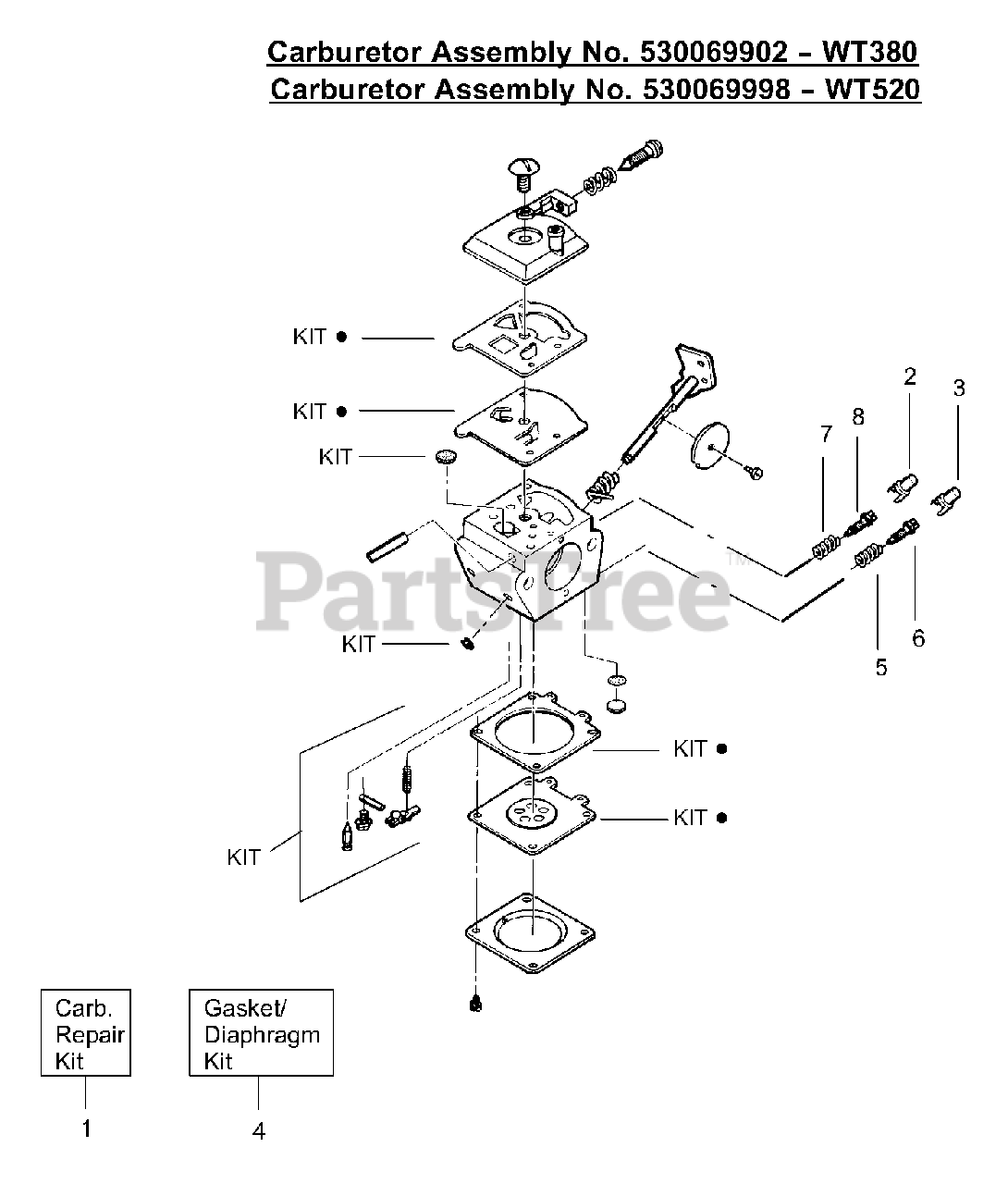

Carburetor Assembly (WT380) PN 530069902, (WT520) 530069998 Parts Diagram

  • Title
1

Poulan 530069829

Carburetor Repair Kit

Note: (KIT=Indicates Contents)

$

$

Not available

2

Poulan 530038318

Limiter Cap (High-Red)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 530038317

Limiter Cap (Low-Blue)

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530069844

Gasket/Diaphragm Kit

Note: (DOT=Indicates Contents)

$20.99

$

In Stock, Qty 7

0

5

Poulan 530035293

Needle Spring-Low Speed

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 530035433

Needle-Low Speed

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 530035295

Needle Spring-High Speed

$3.99

$

In Stock, only 1 left!

0

8

Poulan 530035388

Needle-High Speed

$4.99

$

Usually ships in 3-10 days

0

530069902

Poulan 530069902

Carburetor Assembly WT380
(Superseded to 530071639)

$

$

Not available

530069998

Poulan 530069998

Carburetor Assembly WT520
(Superseded to 530071639)

$

$

Not available
