PE-280 - Echo Edger (SN: T69814001001 - T69814999999) Edging Assembly Parts Diagram

Edger

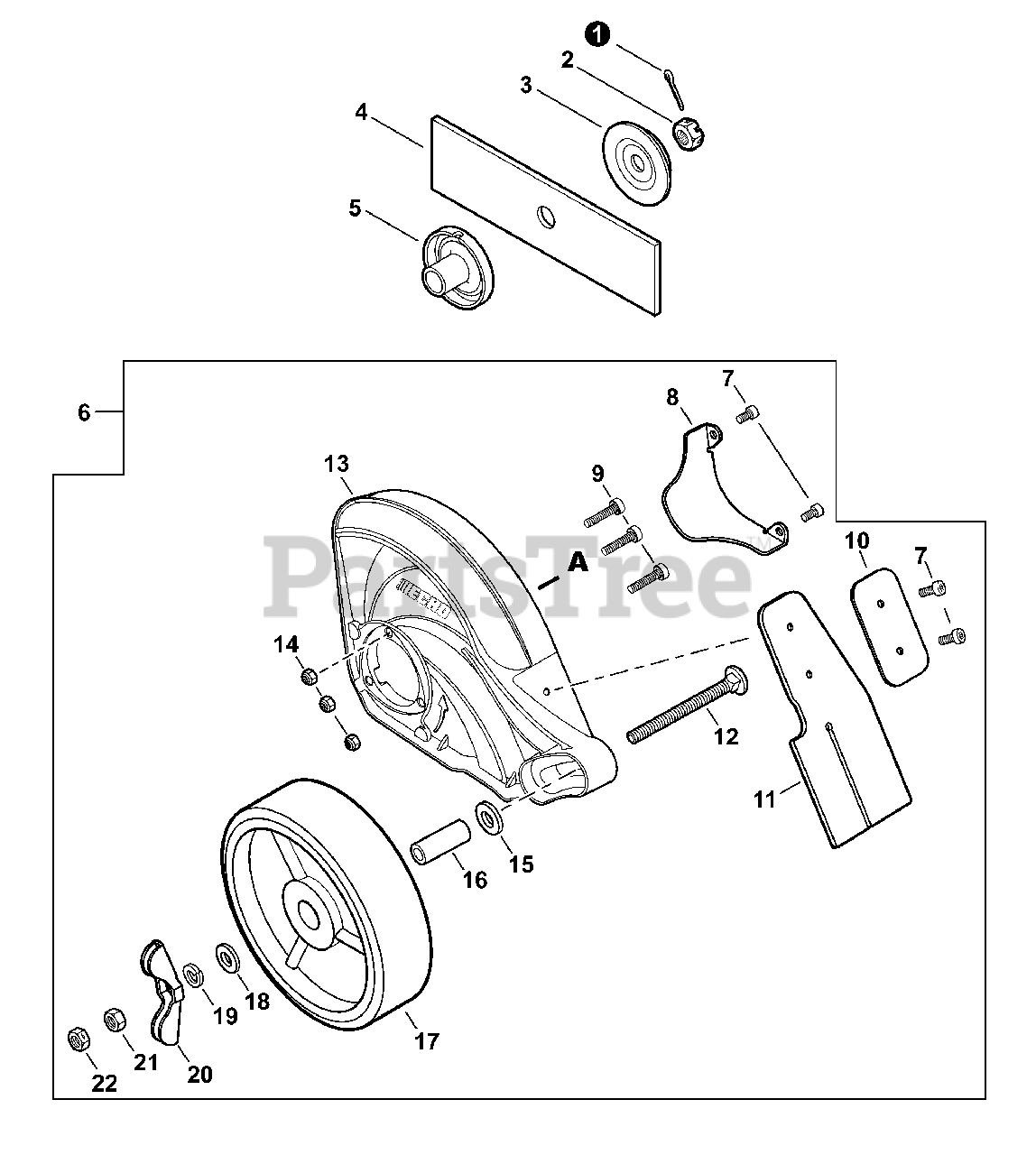

Edging Assembly Parts Diagram

  • Title

1

Echo 90030020022

PIN, SPLIT - 2×22

$0.99

$

In Stock, Qty 20+

0

2

Echo 90051300010

LOCKNUT - LEFT HAND

$1.49

$

In Stock, Qty 20+

0

3

Echo C535000150

ADAPTER, BLADE - LOWER

$9.49

$

In Stock, Qty 7

0

4

Echo 69601552632

BLADE, EDGER

$9.49

$

In Stock, Qty 20+

0

5

Echo C535000100

ADAPTER, BLADE - UPPER

$22.99

$

In Stock, only 1 left!

0

6

Echo P021049310

SHIELD KIT, EDGER
(Superseded to P021049311)

Note: Includes Items 7-22

$60.99

$

In Stock, Qty 7

0

7

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

8

Echo C557000430

GUARD, SHIELD

$5.99

$

In Stock, only 3 left!

0

9

Echo V805000160

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

10

Echo C552000260

PLATE, FLAP

$1.99

$

In Stock, only 2 left!

0

11

Echo C550000730

FLAP, DEBRIS

$3.49

$

In Stock, Qty 8

0

12

Echo V205001220

BOLT M8-1.25×80MM

$3.49

$

In Stock, Qty 7

0

13

Echo C550000740

SHIELD, BLADE

$37.99

$

In Stock, only 2 left!

0

14

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

15

Echo 90060200010

WASHER 10

$0.99

$

In Stock, Qty 20+

0

16

Echo 30242452630

COLLAR 12

$3.49

$

In Stock, Qty 20+

0

17

Echo C730000030

WHEEL
(Superseded to C730000120)

$10.99

$

In Stock, Qty 9

0

18

Echo 90060200008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

19

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

20

Echo V299000440

KNOB, FASTENER
(Superseded to V299000441)

$6.49

$

In Stock, only 2 left!

0

21

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

22

Echo V265000340

NUT, LOCK M8

$0.99

$

In Stock, only 3 left!

0
