PE-266 S - Echo Edger (SN: T43611001001 - T43611999999) Gear Case S/N T43611001001 - T43611001138 Parts Diagram

Edger

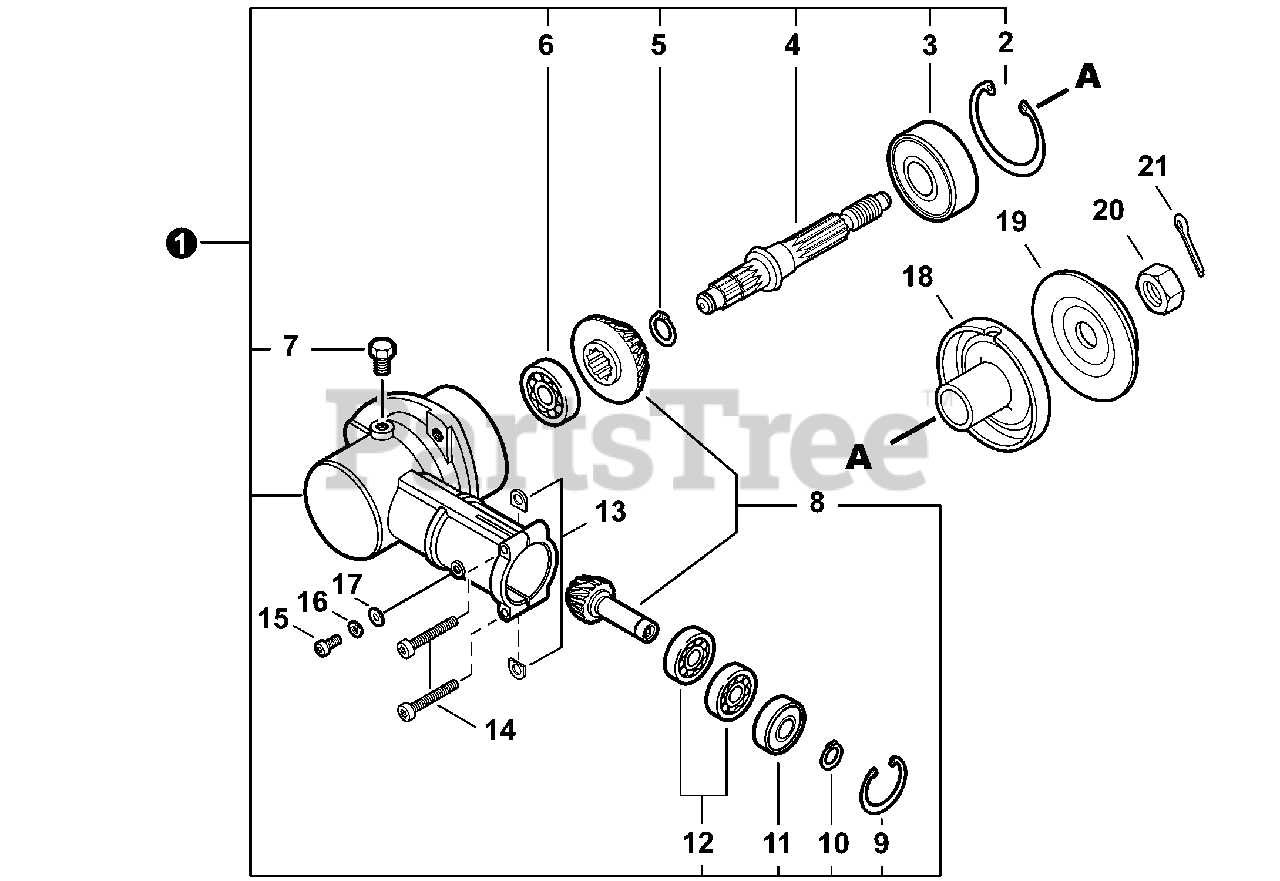

Gear Case S/N T43611001001 - T43611001138 Parts Diagram

  • Title

1

Echo C051000331

GEAR CASE ASSY
(Superseded to C051001230)

Note: Includes Items 2-12

$131.99

$

In Stock, only 1 left!

0

2

Echo 90070200042

RING, SNAP 42

$1.99

$

In Stock, Qty 18

0

3

Echo 90081206302

BEARING, BALL 6302

$16.99

$

In Stock, Qty 7

0

4

Echo C534000500

SHAFT, GEAR
(Superseded to C051001230)

$131.99

$

In Stock, only 1 left!

0

5

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 10

0

6

Echo 90081000629

BEARING, BALL 629

$15.99

$

In Stock, only 2 left!

0

7

Echo 61043450031

BOLT M8×1.25

$1.99

$

In Stock, only 3 left!

0

8

Echo P021015970

GEAR SET
(Superseded to C051001230)

$131.99

$

In Stock, only 1 left!

0

9

Echo 90070200022

RING, SNAP 22

$1.99

$

In Stock, Qty 5

0

10

Echo 90070600010

RING, SNAP 10

$1.49

$

In Stock, Qty 20+

0

11

Echo 90085806900

BEARING, BALL 6900-Z

$22.99

$

In Stock, Qty 6

0

12

Echo 90085506900

BEARING, BALL 6900

$18.99

$

In Stock, Qty 5

0

13

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 10

0

14

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

15

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

16

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 10

0

17

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo C535000100

PLATE, ADAPTOR - UPPER

$22.99

$

In Stock, only 1 left!

0

19

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$9.49

$

In Stock, only 1 left!

0

20

Echo 90051300010

NUT 10×1.25 LH

$1.49

$

In Stock, Qty 20+

0

21

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0
