PE-2620 S - Echo Edger (SN: U44115001001 - U44115999999) Gear Case Parts Diagram

Edger

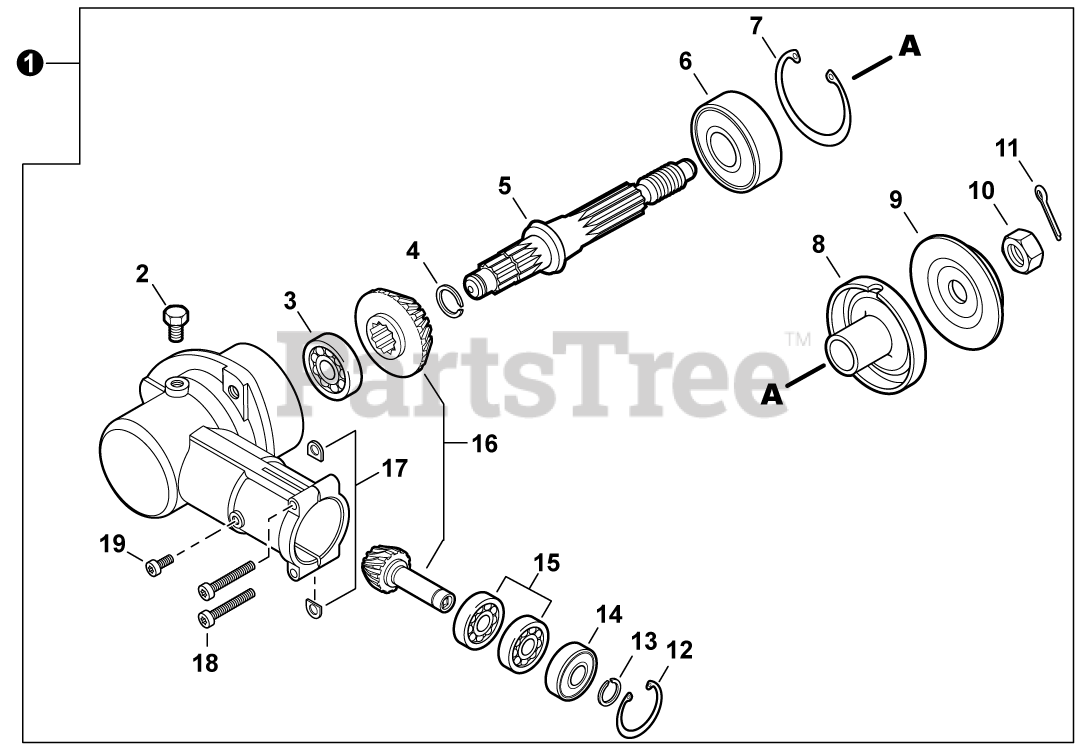

Gear Case Parts Diagram

  • Title

1

Echo P021049410

GEAR CASE ASSY

Note: Includes items 2-19

$131.99

$

In Stock, only 1 left!

0

2

Echo 61043450031

BOLT M8x8

$1.99

$

In Stock, Qty 6

0

3

Echo 90081000629

BEARING, BALL 629

$15.99

$

In Stock, only 2 left!

0

4

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 10

0

5

Echo C534001050

SHAFT, GEAR

$56.99

$

Usually ships in 2-4 days

0

6

Echo 90081206302

BEARING, BALL 6302

$16.99

$

In Stock, Qty 7

0

7

Echo 90070200042

RING, SNAP 42

$1.99

$

In Stock, Qty 18

0

8

Echo C535000100

PLATE, ADAPTOR - UPPER

$22.99

$

In Stock, only 1 left!

0

9

Echo C535000150

PLATE, ADAPTOR - LOWER

$9.49

$

In Stock, only 2 left!

0

10

Echo 90051300010

NUT 10x1.25 LH

$1.49

$

In Stock, Qty 20+

0

11

Echo 90030020022

PIN, COTTER 2x22

$0.99

$

In Stock, Qty 20+

0

12

Echo 90070200022

RING, SNAP 22

$1.99

$

In Stock, Qty 5

0

13

Echo 90070600010

RING, SNAP 10

$1.49

$

In Stock, Qty 20+

0

14

Echo 90085806900

BEARING, BALL 6900Z

$22.99

$

In Stock, Qty 6

0

15

Echo 90085506900

BEARING, BALL 6900

$18.99

$

In Stock, Qty 5

0

16

Echo P021046191

GEAR SET

$69.99

$

Usually ships in 2-4 days

0

17

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 10

0

18

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

19

Echo V805000140

BOLT, TORX 5x12

$0.99

$

In Stock, Qty 20+

0
