PE-2620 - Echo Edger (SN: U89613001001 - U89613999999) Gear Case Parts Diagram

Edger

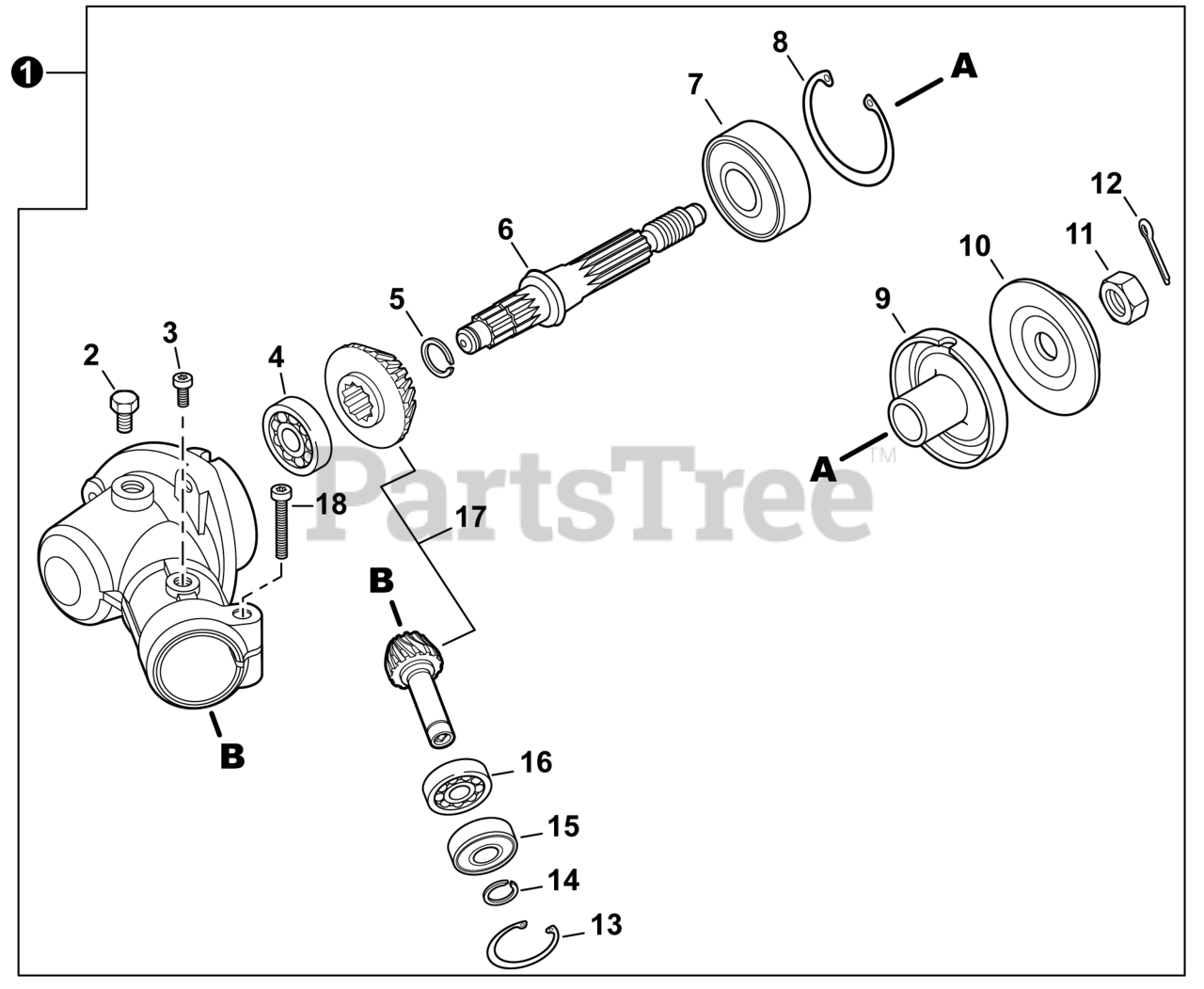

Gear Case Parts Diagram

  • Title

1

Echo P021051361

GEAR CASE ASSY

Note: Includes Items 2-18

$103.99

$

In Stock, only 3 left!

0

2

Echo 61043450031

BOLT M8x8

$1.99

$

In Stock, Qty 20+

0

3

Echo V805000140

BOLT, TORX 5x12

$0.99

$

In Stock, Qty 20+

0

4

Echo 9411000629

BEARING, BALL 629A

$10.99

$

Usually ships in 2-4 days

0

5

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 13

0

6

Echo C534000220

SHAFT, GEAR

$60.99

$

In Stock, only 2 left!

0

7

Echo 90081206302

BEARING, BALL 6302

$16.99

$

In Stock, Qty 11

0

8

Echo 90070200042

RING, SNAP 42

$1.99

$

In Stock, Qty 20+

0

9

Echo C535000100

PLATE, ADAPTOR - UPPER

$22.99

$

In Stock, Qty 10

0

10

Echo C535000150

PLATE, ADAPTOR - LOWER

$9.49

$

In Stock, Qty 20+

0

11

Echo 90051300010

NUT 10x1.25 LH

$1.49

$

In Stock, Qty 20+

0

12

Echo 90030020022

PIN, COTTER 2x22

$0.99

$

In Stock, Qty 20+

0

13

Echo 90070200025

RING, SNAP 25

$1.99

$

In Stock, Qty 5

0

14

Echo 90070100009

RING, SNAP 9

$0.99

$

Usually ships in 2-4 days

0

15

Echo 9411100609

BEARING, BALL 609ZA

$10.99

$

In Stock, only 3 left!

0

16

Echo 9411000609

BEARING, BALL 609A

$10.99

$

In Stock, only 1 left!

0

17

Echo V000000320

GEAR SET

$

$

Currently unavailable

18

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0
