PE-2620 - Echo Edger (SN: U89613001001 - U89613999999) Edger Shield Parts Diagram

Edger

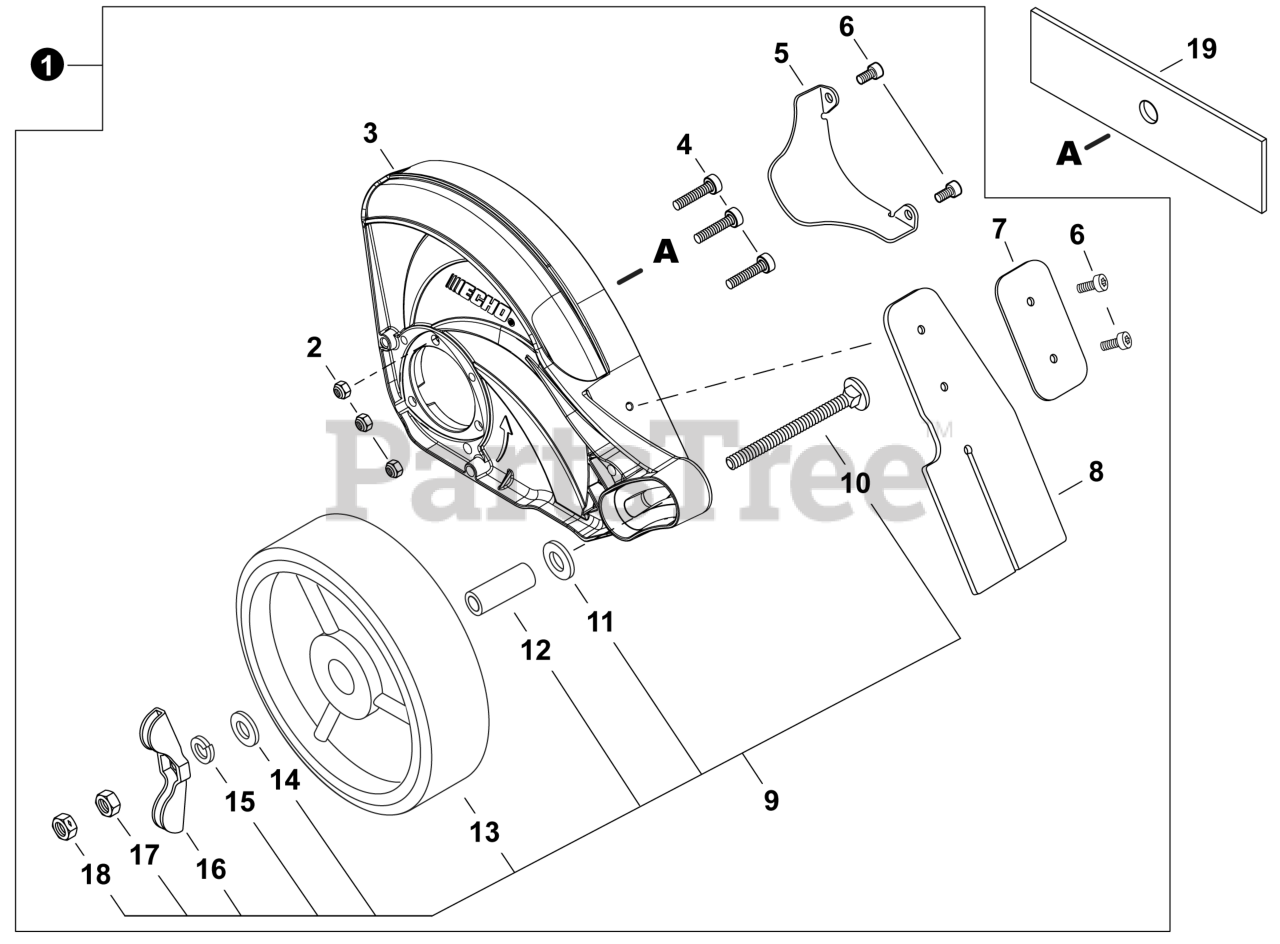

Edger Shield Parts Diagram

  • Title

1

Echo P021049311

SHIELD KIT, EDGER

Note: Includes Items 2-18

$60.99

$

In Stock, Qty 7

0

2

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

3

Echo C550000930

SHIELD, BLADE

$

$

Currently unavailable

4

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

5

Echo C557000430

GUARD, SHIELD

$5.99

$

In Stock, Qty 20+

0

6

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 17

0

7

Echo C552000260

PLATE, FLAP

$1.99

$

In Stock, Qty 20+

0

8

Echo C550000730

FLAP, DEBRIS

$3.49

$

In Stock, Qty 20+

0

9

Echo P021054320

WHEEL KIT

Note: Includes Items 10-18

$25.99

$

Usually ships in 2-4 days

0

10

Echo V205001220

BOLT M8-1.25x80 MM

$3.49

$

In Stock, Qty 20+

0

11

Echo 90060200010

WASHER M10

$0.99

$

In Stock, Qty 20+

0

12

Echo 30242452630

COLLAR 12

$3.49

$

In Stock, Qty 20+

0

13

Echo C730000120

WHEEL

$10.99

$

In Stock, Qty 18

0

14

Echo 90060200008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

16

Echo V299000441

KNOB, FASTENER

$6.49

$

In Stock, Qty 19

0

17

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 12

0

18

Echo V265000340

NUT, LOCK M8

$0.99

$

In Stock, Qty 20+

0

19

Echo 69601552632

BLADE - 2 PK

$9.49

$

In Stock, Qty 15

0
