PE-261 - Echo Edger (SN: 02001001 - 02999999) Control Handle, Throttle Cable, Ignition Switch Parts Diagram

Edger

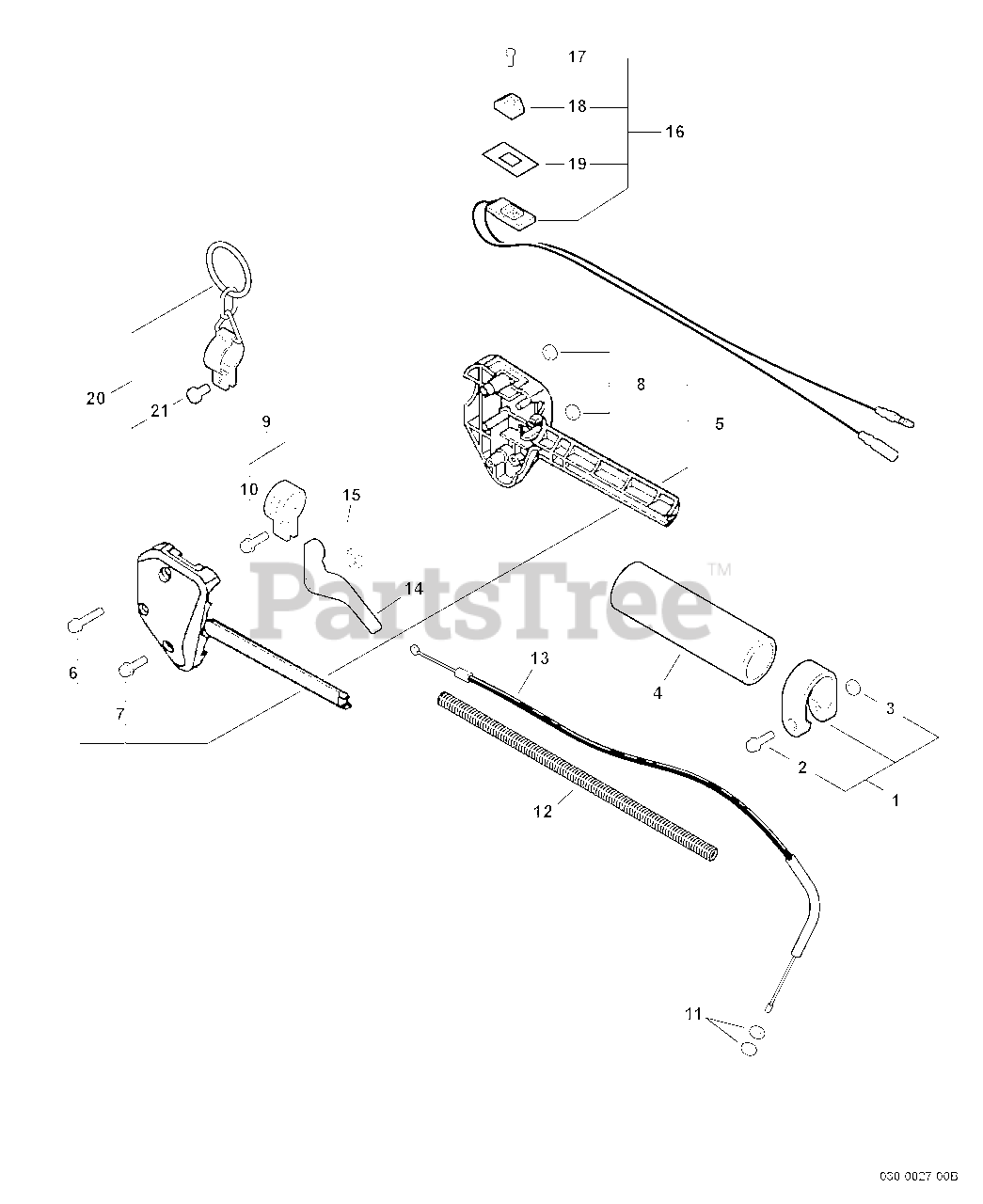

Control Handle, Throttle Cable, Ignition Switch Parts Diagram

  • Title

1

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 2-3

$9.99

$

In Stock, only 1 left!

0

2

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

3

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 2 left!

0

5

Echo 17800352130

CONTROL HANDLE KIT

Note: Includes ITEMS 6-8

$4.99

$

In Stock, only 1 left!

0

6

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

8

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 10

$9.49

$

In Stock, only 1 left!

0

10

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

11

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

12

Echo V475000850

TUBE, PROTECTIVE - CORRUGATED

$0.99

$

In Stock, only 4 left!

0

13

Echo V430000140

CABLE, THROTTLE

$16.99

$

In Stock, only 4 left!

0

14

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

15

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

16

Echo A440000280

IGNITION SWITCH ASSY

Note: Includes ITEMS 17-19

$11.99

$

In Stock, Qty 14

0

17

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

18

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

19

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 13

0

20

Echo C646000060

HANGER KIT
(Superseded to P021046740)

Note: Includes ITEM 21

$3.49

$

In Stock, Qty 20+

0

21

Echo 90010005012

BOLT - 5X12

$0.99

$

In Stock, Qty 5

0
