PE-2601 - Echo Edger (Type 1E) Gearcase, Shield, Tools Parts Diagram

Edger (Type 1E)

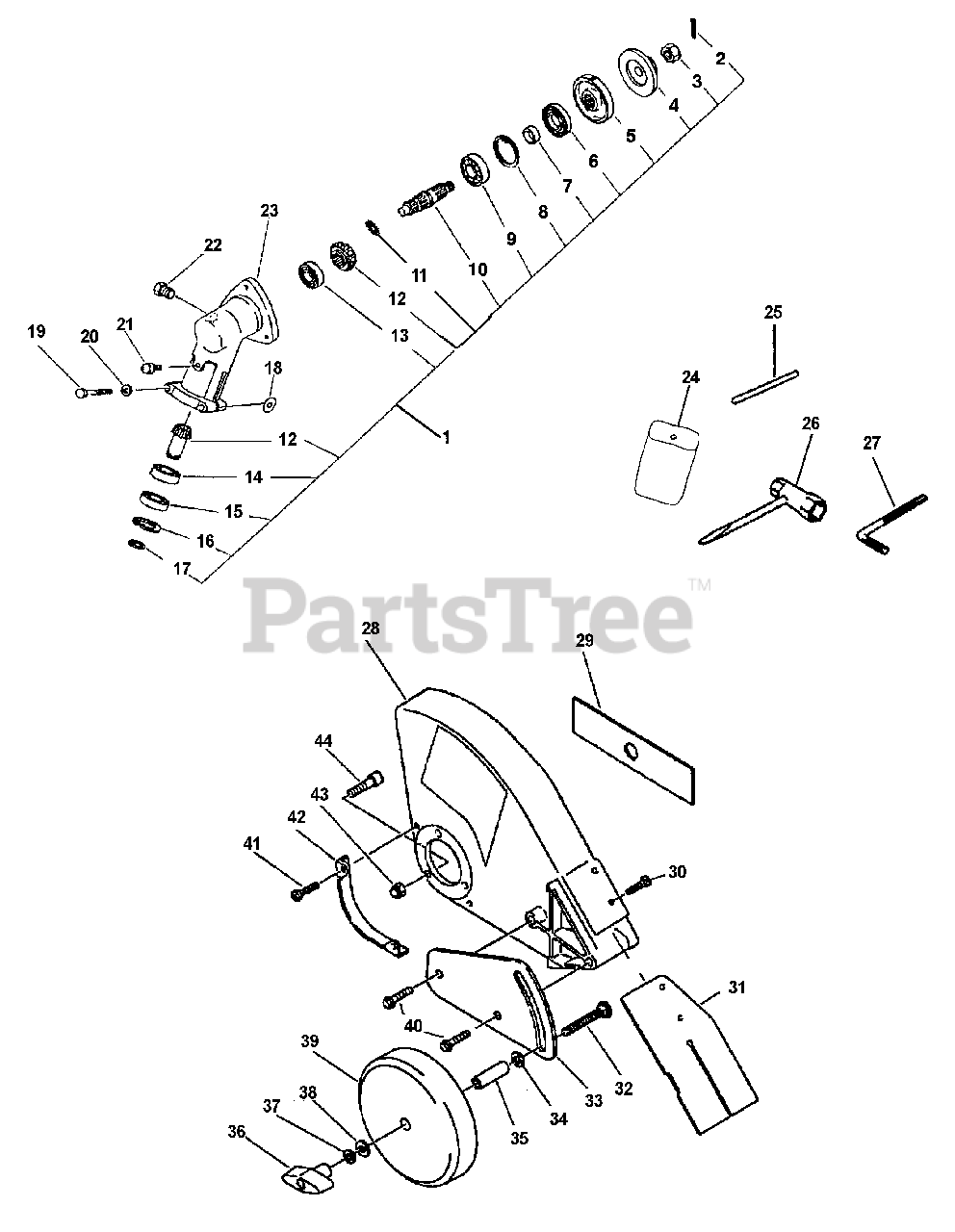

Gearcase, Shield, Tools Parts Diagram

  • Title

1

Echo 61040252630

GEAR CASE ASSY

Note: INCLUDES ITEMS 2 - 23

$355.99

$

Usually ships in 2-4 days

0

2

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

3

Echo 90051300010

LOCKNUT - LEFT HAND

$1.49

$

In Stock, Qty 20+

0

4

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, only 1 left!

0

5

Echo 61031307130

ADAPTOR, BLADE - UPPER
(Superseded to 61031307132)

$17.99

$

In Stock, Qty 5

0

6

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 11

0

7

Echo 61031507130

SPACER

$3.99

$

In Stock, Qty 6

0

8

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 15

0

9

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 11

0

10

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

11

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

12

Echo 61030052630

GEAR SET - BEVEL

$102.99

$

Usually ships in 2-4 days

0

13

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 12

0

14

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

15

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

16

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

17

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 14

0

18

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

19

Echo 90010005030

BOLT - 5X30

$0.99

$

Usually ships in 2-4 days

0

20

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 61043450030

BOLT - 8X6
(Superseded to 90010008008)

$0.99

$

In Stock, Qty 11

0

22

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

23

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

24

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, Qty 7

0

25

Echo 89751801131

LOCKING TOOL

$

$

Not available

26

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

27

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable

28

Echo 69901052830

SHIELD, DEBRIS

$20.99

$

In Stock, only 1 left!

0

29

Echo 69601552632

BLADE, EDGER

$9.49

$

In Stock, Qty 20+

0

30

Echo 90008000200

SCREW - 3

$0.99

$

Usually ships in 2-4 days

0

31

Echo 69901755330

FLAP, DEBRIS

$12.99

$

In Stock, Qty 6

0

32

Echo 61025055330

BOLT - CARRIAGE

$1.99

$

In Stock, Qty 20+

0

33

Echo 30202955330

BRACKET, WHEEL
(Superseded to 30202955331)

$7.99

$

In Stock, Qty 9

0

34

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

35

Echo 30242452630

COLLAR - 12

$3.49

$

In Stock, Qty 20+

0

36

Echo 17811355330

WINGNUT - 5/16-18
(Superseded to V299000670)

$3.49

$

In Stock, Qty 20+

0

37

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

38

Echo 90060200008

WASHER - 8

$0.99

$

In Stock, Qty 20+

0

39

Echo C730000030

WHEEL - 6X1.5
(Superseded to C730000120)

$10.99

$

In Stock, Qty 10

0

40

Echo 90008000100

BOLT - 8

$1.49

$

Usually ships in 2-4 days

0

41

Echo 90008000300

SCREW - 4X16

$0.99

$

In Stock, Qty 6

0

42

Echo 69902552630

GUARD

$3.49

$

In Stock, Qty 18

0

43

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

44

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+
