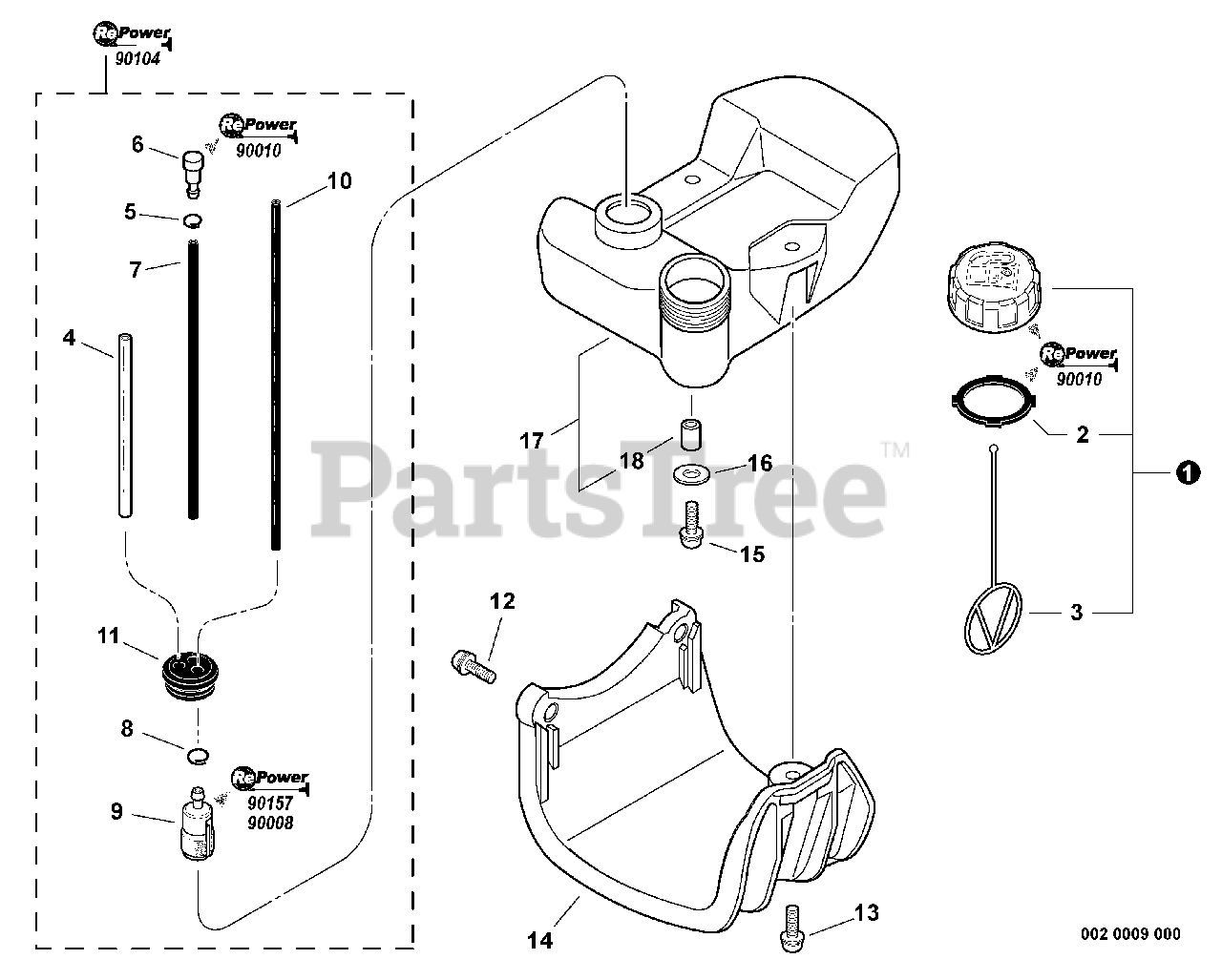

PE-231 - Echo Edger (SN: 02001001 - 02999999) Fuel System Parts Diagram

Edger

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 2-3

$6.49

$

In Stock, only 2 left!

0

2

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

5

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

6

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

7

Echo V471000110

PIPE - 3X6X115 -- BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

8

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

9

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

10

Echo 13201052030

PIPE - 3X6X170 -- BLACK
(Superseded to 13201052031)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, Qty 19

0

11

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 18

0

12

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

13

Echo 90024405020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

14

Echo 30511057733

GUARD, FUEL TANK

$14.99

$

In Stock, only 2 left!

0

15

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

16

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo A350000660

FUEL TANK ASSY
(Superseded to A350002320)

Note: Includes ITEM 18

$

$

Not available

18

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

19

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 19

0

20

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available

21

Echo 90104

RePower FUEL SYSTEM KIT
(Superseded to 90104Y)

$22.99

$

In Stock, Qty 20+

0

22

Echo 90157

RePower TUNE-UP KIT
(Superseded to Discontinued)

$

$

Not available
