Echo PE-230 - Echo Edger (SN: S83113001001 - S83113999999) Engine Parts Lookup with Diagrams

1

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

2

Echo A130000341

CYLINDER

$166.99

$

Usually ships in 2-4 days

3

Echo V100000060

GASKET, CYLINDER

$6.49

$

In Stock, Qty 6

4

Echo P021001102

PISTON KIT

Note: Includes ITEMS 5-8

$77.99

$

In Stock, Qty 5

5

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 2 left!

6

Echo 10001311520

PIN, PISTON 5×8×25.5

$7.49

$

In Stock, only 1 left!

7

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

8

Echo 10001411520

WASHER, THRUST 8.2×13×0.5

$3.49

$

In Stock, only 3 left!

9

Echo A011000042

CRANKSHAFT ASSY

Note: Includes ITEM 10

$177.99

$

Usually ships in 2-4 days

10

Echo V553000010

BEARING, NEEDLE 8

$9.99

$

In Stock, only 2 left!

11

Echo P021000941

CRANKCASE ASSY

Note: Includes ITEMS 12-18

$210.99

$

Usually ships in 2-4 days

12

Echo 10021305530

SEAL, OIL 12

$6.49

$

In Stock, only 1 left!

13

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, only 1 left!

14

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 15

15

Echo 10024255930

GASKET, CRANKCASE

$3.49

$

In Stock, only 1 left!

16

Echo V622000090

PIN, LOCATING 4×8

$1.49

$

Usually ships in 2-4 days

17

Echo 10021228230

SEAL, OIL 12

$4.49

$

In Stock, only 2 left!

18

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

19

Echo P021003900

GASKET KIT

(Superseded to Discontinued) 

$

Not available 

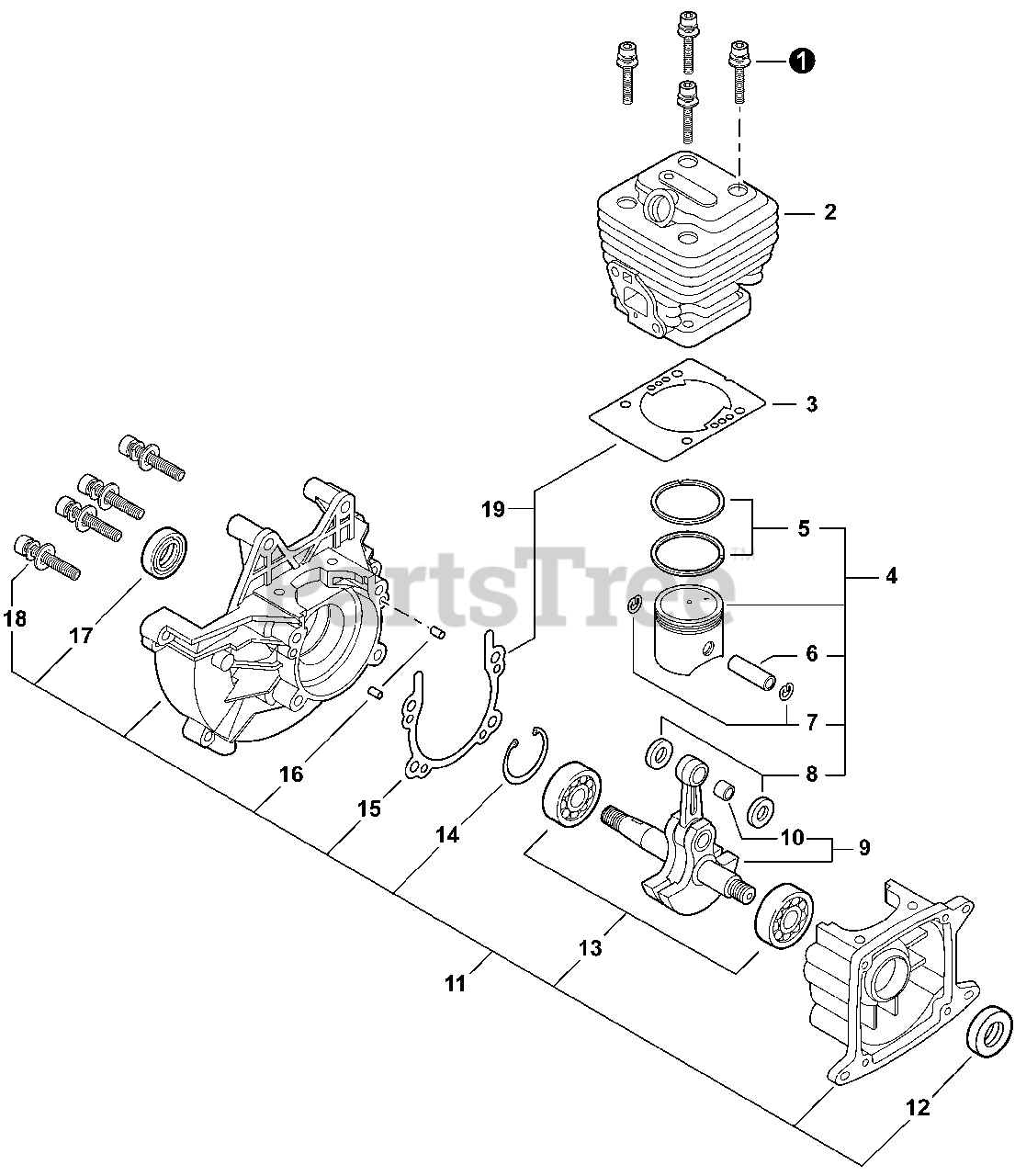

PE-230 - Echo Edger (SN: S83113001001 - S83113999999) Engine Parts Diagram

Engine Parts Diagram

Echo 90016205022

Echo A130000341

Echo V100000060

Echo P021001102

Echo A101000000

Echo 10001311520

Echo 10001504630

Echo 10001411520

Echo A011000042

Echo V553000010

Echo P021000941

Echo 10021305530

Echo 90080036001

Echo 90070200028

Echo 10024255930

Echo V622000090

Echo 10021228230

Echo 90016205025

Echo P021003900
