PE-230 - Echo Edger (SN: S83113001001 - S83113999999) Control Handle S/N S83113001001-S83113002064 Parts Diagram

Edger

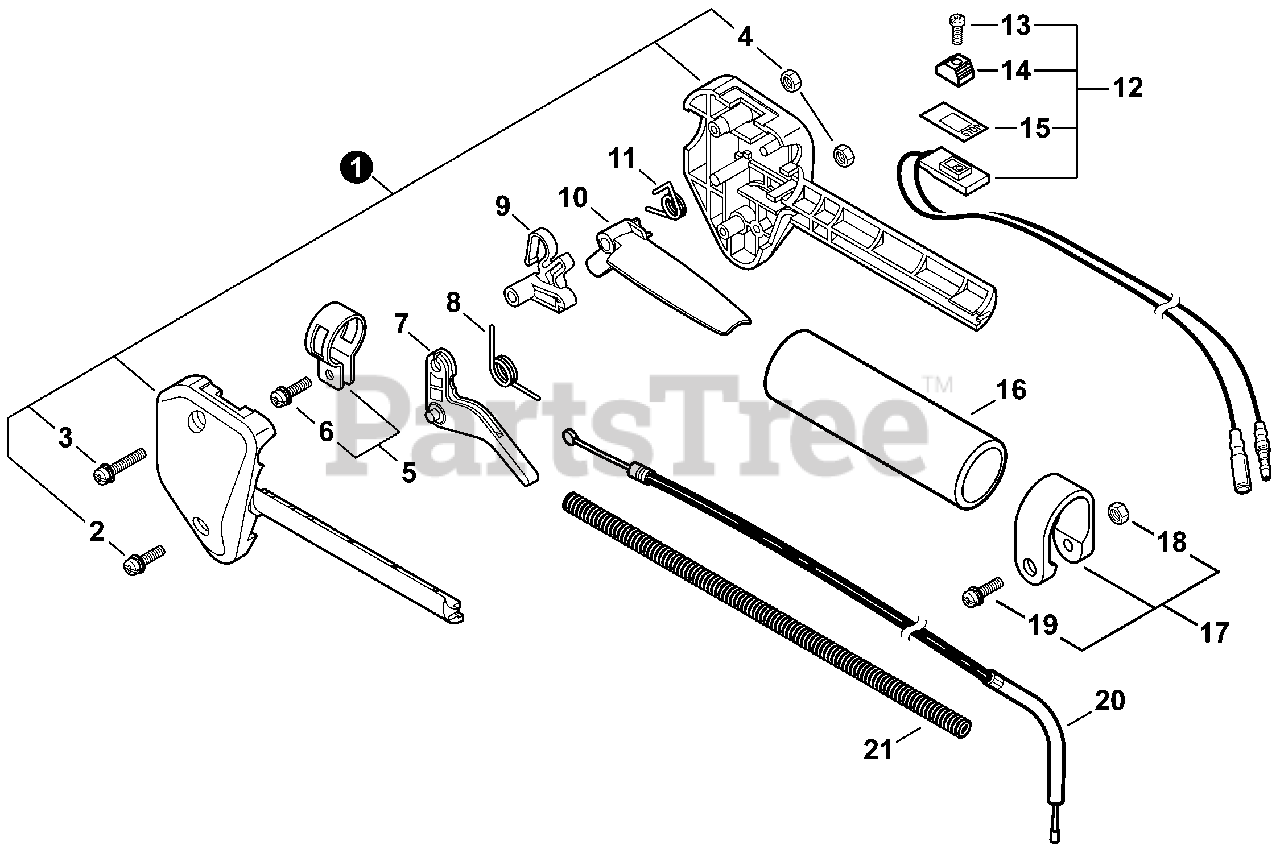

Control Handle S/N S83113001001-S83113002064 Parts Diagram

  • Title

1

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes ITEMS 2-4

$4.99

$

Usually ships in 2-4 days

0

2

Echo 90024205025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

4

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

5

Echo 30120029431

CLAMP KIT

Note: Includes ITEM 6

$9.49

$

In Stock, only 1 left!

0

6

Echo 90024205014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

7

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

8

Echo 17804342230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

9

Echo 17801252730

LOCKOUT, THROTTLE

$4.99

$

In Stock, Qty 14

0

10

Echo 17809052632

LEVER, THROTTLE LOCKOUT

$2.49

$

In Stock, Qty 20+

0

11

Echo 17801352630

SPRING, TORSION

$2.49

$

In Stock, Qty 5

0

12

Echo A440000280

SWITCH, ON-OFF

Note: Includes ITEMS 13-15

$11.99

$

In Stock, Qty 12

0

13

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

14

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

15

Echo 89015712330

LABEL, SWITCH

$3.49

$

In Stock, Qty 13

0

16

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 1 left!

0

17

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 18-19

$9.99

$

In Stock, only 1 left!

0

18

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 7

0

20

Echo V430000730

CABLE, THROTTLE

$7.49

$

In Stock, only 1 left!

0

21

Echo V475000850

TUBE, FLEXIBLE

$0.99

$

In Stock, only 4 left!

0
