PE-230 - Echo Edger (SN: 07001001 - 07999999) Edging Assembly -- Metal Parts Diagram

Edger

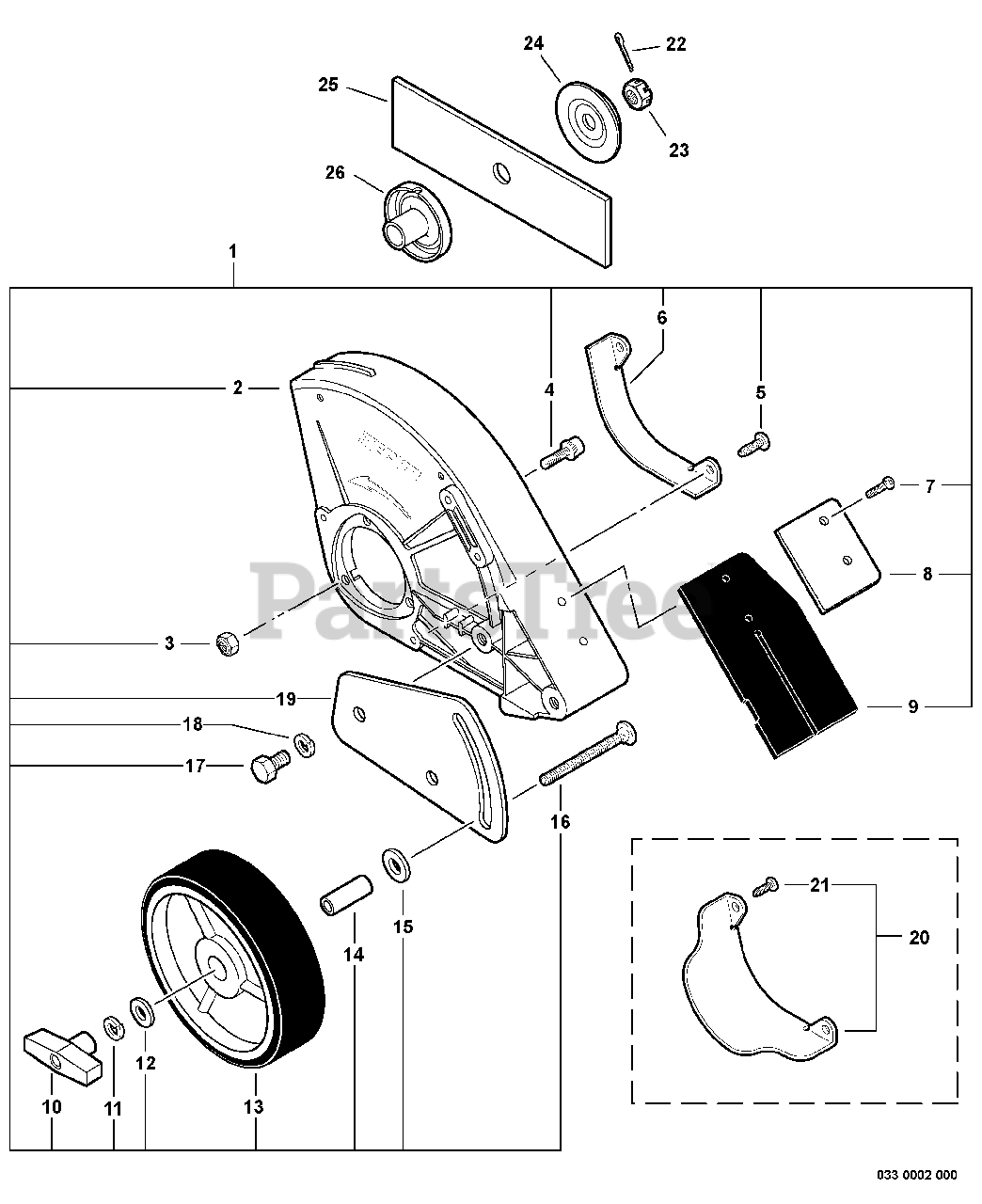

Edging Assembly -- Metal Parts Diagram

  • Title
1

Echo P021011730

EDGER SHIELD KIT
(Superseded to P021011731)

Note: Includes ITEMS 2-19

$60.99

$

Usually ships in 2-4 days

0

2

Echo C550000271

SHIELD, BLADE
(Superseded to C550000272)

$76.99

$

In Stock, only 4 left!

0

3

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

5

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

$3.49

$

In Stock, Qty 17

0

7

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

8

Echo C552000101

PLATE, FLAP

$1.99

$

In Stock, Qty 6

0

9

Echo C550000110

FLAP, DEBRIS

$3.49

$

In Stock, Qty 13

0

10

Echo 17811355330

WINGNUT - 5/16-18
(Superseded to V299000670)

$3.49

$

In Stock, Qty 20+

0

11

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060200008

WASHER - 8

$0.99

$

In Stock, Qty 20+

0

13

Echo C730000030

WHEEL - 6X1.5
(Superseded to C730000120)

$10.99

$

In Stock, Qty 10

0

14

Echo 30242452630

COLLAR - 12

$3.49

$

In Stock, Qty 20+

0

15

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

16

Echo 61025055330

BOLT - CARRIAGE

$1.99

$

In Stock, Qty 20+

0

17

Echo 90010008014

BOLT - 8X14

$0.99

$

In Stock, Qty 20+

0

18

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

19

Echo C712000110

BRACKET, WHEEL

$7.99

$

In Stock, Qty 9

0

20

Echo 900104

SHIELD GUARD KIT

Note: Includes ITEM 21

$9.99

$

In Stock, Qty 6

0

21

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

22

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

23

Echo 90051300010

LOCKNUT - LEFT HAND

$1.49

$

In Stock, Qty 20+

0

24

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, only 2 left!

0

25

Echo 69601552632

BLADE, EDGER

Note: Includes 2 PER PACKAGE

$9.49

$

In Stock, Qty 20+

0

26

Echo C535000100

ADAPTOR, BLADE - UPPER

$22.99

$

In Stock, only 1 left!

0
