PE-225 - Echo Edger (SN: T86714001001 - T86714999999) Gear Case Parts Diagram

Edger

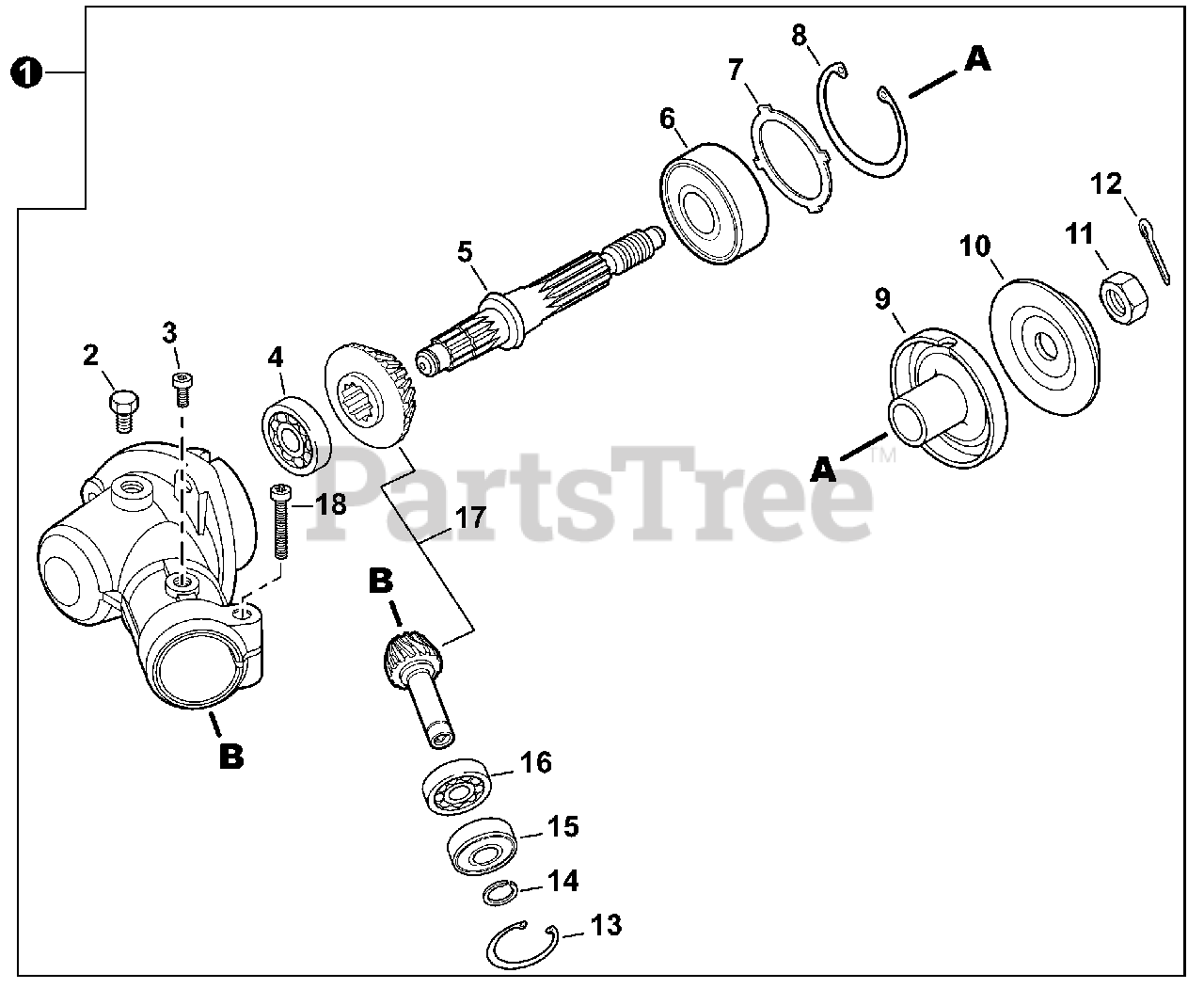

Gear Case Parts Diagram

  • Title

1

Echo P021051310

GEAR CASE ASSY
(Superseded to P021054060)

$107.99

$

In Stock, only 1 left!

0

2

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, only 3 left!

0

3

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

4

Echo 9406000629

BEARING, BALL
(Superseded to 90081000629)

$15.99

$

In Stock, only 2 left!

0

5

Echo C534001090

SHAFT, GEAR

$50.99

$

In Stock, only 2 left!

0

6

Echo 90081206201

BEARING, BALL 6201

$12.99

$

In Stock, only 3 left!

0

7

Echo V340000180

WASHER

$1.49

$

In Stock, Qty 5

0

8

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 15

0

9

Echo C535000941

PLATE, ADAPTOR - UPPER
(Superseded to C535001240)

$19.99

$

In Stock, only 2 left!

0

10

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$9.49

$

In Stock, only 1 left!

0

11

Echo 90051300010

NUT 10×1.25 LH

$1.49

$

In Stock, Qty 20+

0

12

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0

13

Echo 90070200025

RING, SNAP Ø25

$1.99

$

In Stock, Qty 5

0

14

Echo 90070100009

RING, SNAP Ø9

$

$

Not available

15

Echo 9406300609

BEARING, BALL 609Z
(Superseded to 90080300609)

$15.99

$

Usually ships in 2-4 days

0

16

Echo 9406000609

BEARING, BALL 609
(Superseded to 90080000609)

$9.99

$

In Stock, Qty 12

0

17

Echo V000000250

GEAR SET

$69.99

$

In Stock, only 1 left!

0

18

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0
