PE-225 - Echo Edger (SN: T86714001001 - T86714999999) Edger Shield Parts Diagram

Edger

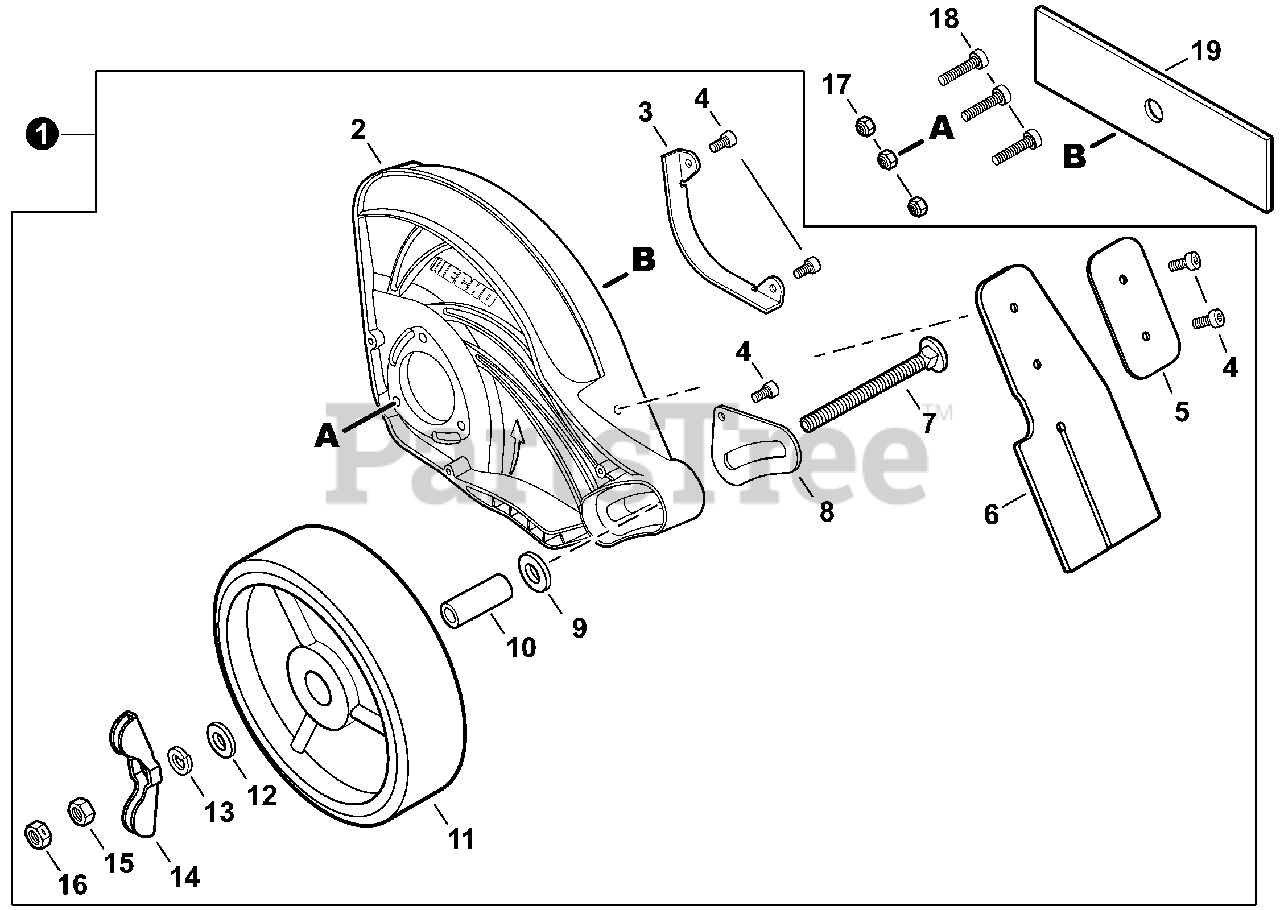

Edger Shield Parts Diagram

  • Title

1

Echo A001000010

SHIELD KIT, EDGER - PLASTIC

Note: Includes ITEMS 2-16

$39.99

$

Usually ships in 2-4 days

0

2

Echo C550000720

SHIELD, BLADE

$20.99

$

In Stock, only 2 left!

0

3

Echo 69902552630

GUARD, SHIELD

$3.49

$

In Stock, Qty 17

0

4

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

5

Echo C552000260

PLATE, FLAP

$1.99

$

In Stock, only 2 left!

0

6

Echo C550000730

FLAP, DEBRIS

$3.49

$

In Stock, Qty 8

0

7

Echo V205001220

BOLT M8-1.25×80MM

$3.49

$

In Stock, Qty 7

0

8

Echo C712000200

BRACKET, WHEEL

$3.49

$

Usually ships in 2-4 days

0

9

Echo 90060200010

WASHER 10

$0.99

$

In Stock, Qty 20+

0

10

Echo 30242452630

COLLAR 12

$3.49

$

In Stock, Qty 20+

0

11

Echo C730000030

WHEEL
(Superseded to C730000120)

$10.99

$

In Stock, Qty 10

0

12

Echo 90060200008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

14

Echo V299000440

KNOB, FASTENER
(Superseded to V299000441)

$6.49

$

In Stock, only 2 left!

0

15

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

16

Echo V265000340

NUT, LOCK M8

$0.99

$

In Stock, only 4 left!

0

17

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

18

Echo V805000170

BOLT, TORX 5×25

$0.99

$

Usually ships in 2-4 days

0

19

Echo 69601552632

BLADE - 2 PK

$9.49

$

In Stock, Qty 20+

0
