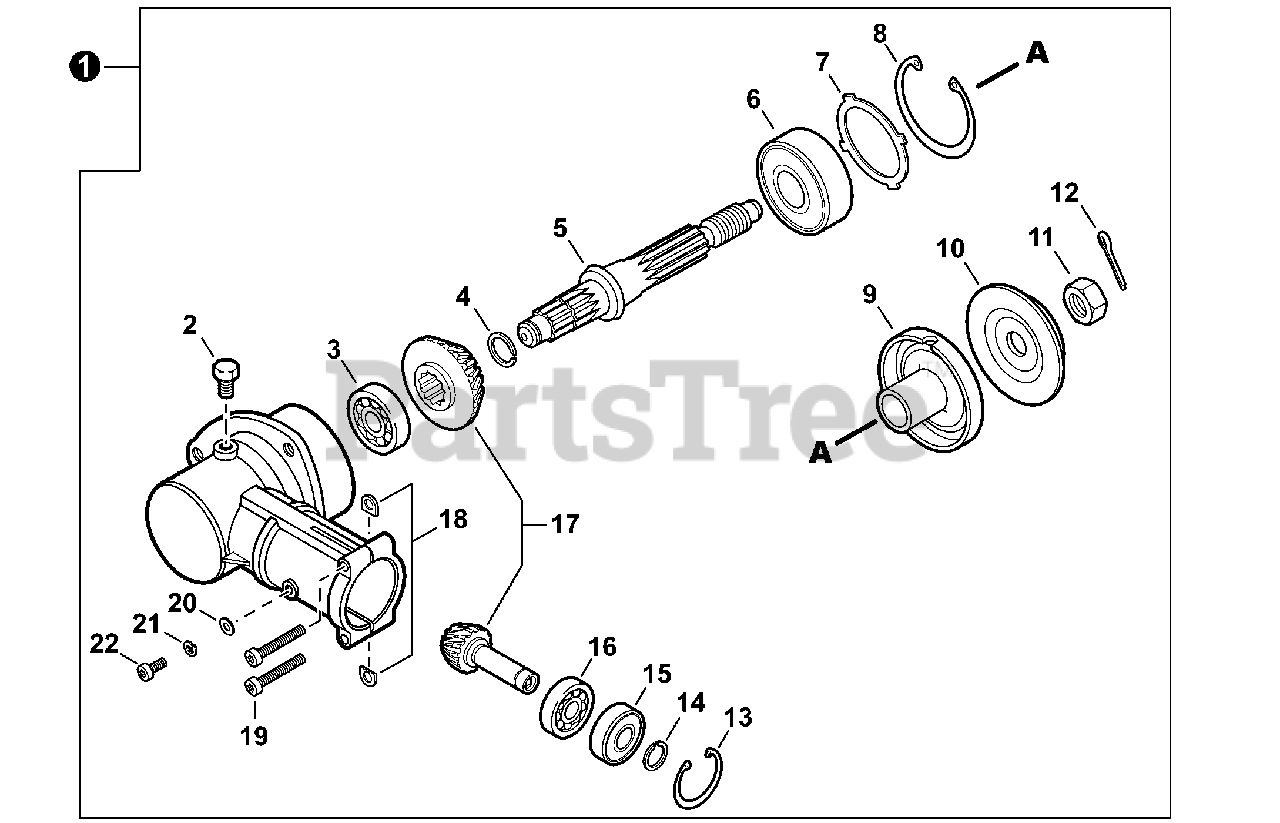

PE-225 - Echo Edger (SN: T76014001001 - T76014999999) Gear Case Parts Diagram

Edger

Gear Case Parts Diagram

  • Title

1

Echo P021044550

GEAR CASE ASSY

Note: Includes Items 2-22

$134.99

$

In Stock, only 2 left!

0

2

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 6

0

3

Echo 9406000609

BEARING, BALL 609
(Superseded to 90080000609)

$9.99

$

In Stock, Qty 11

0

4

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 10

0

5

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

6

Echo 90081206201

BEARING, BALL 6201

$12.99

$

In Stock, only 3 left!

0

7

Echo V340000180

WASHER

$1.49

$

In Stock, Qty 5

0

8

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 14

0

9

Echo C535000941

PLATE, ADAPTOR - UPPER
(Superseded to C535001240)

$19.99

$

In Stock, only 2 left!

0

10

Echo C535000150

PLATE, ADAPTOR - LOWER

$9.49

$

In Stock, only 2 left!

0

11

Echo 90051300010

NUT 10×1.25 LH

$1.49

$

In Stock, Qty 20+

0

12

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0

13

Echo 90070200022

RING, SNAP Ø22

$1.99

$

In Stock, Qty 5

0

14

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

15

Echo 90085806900

BEARING, BALL 6900-Z

$22.99

$

In Stock, Qty 6

0

16

Echo 90085506900

BEARING, BALL 6900

$18.99

$

In Stock, Qty 5

0

17

Echo 61030052630

GEAR SET

$102.99

$

Usually ships in 2-4 days

0

18

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 10

0

19

Echo V805000170

BOLT, TORX 5×25

$0.99

$

Usually ships in 2-4 days

0

20

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

21

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 10

0

22

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+
