PE-225 - Echo Edger (SN: T75913001001 - T75913999999) Debris Shield Parts Diagram

Edger

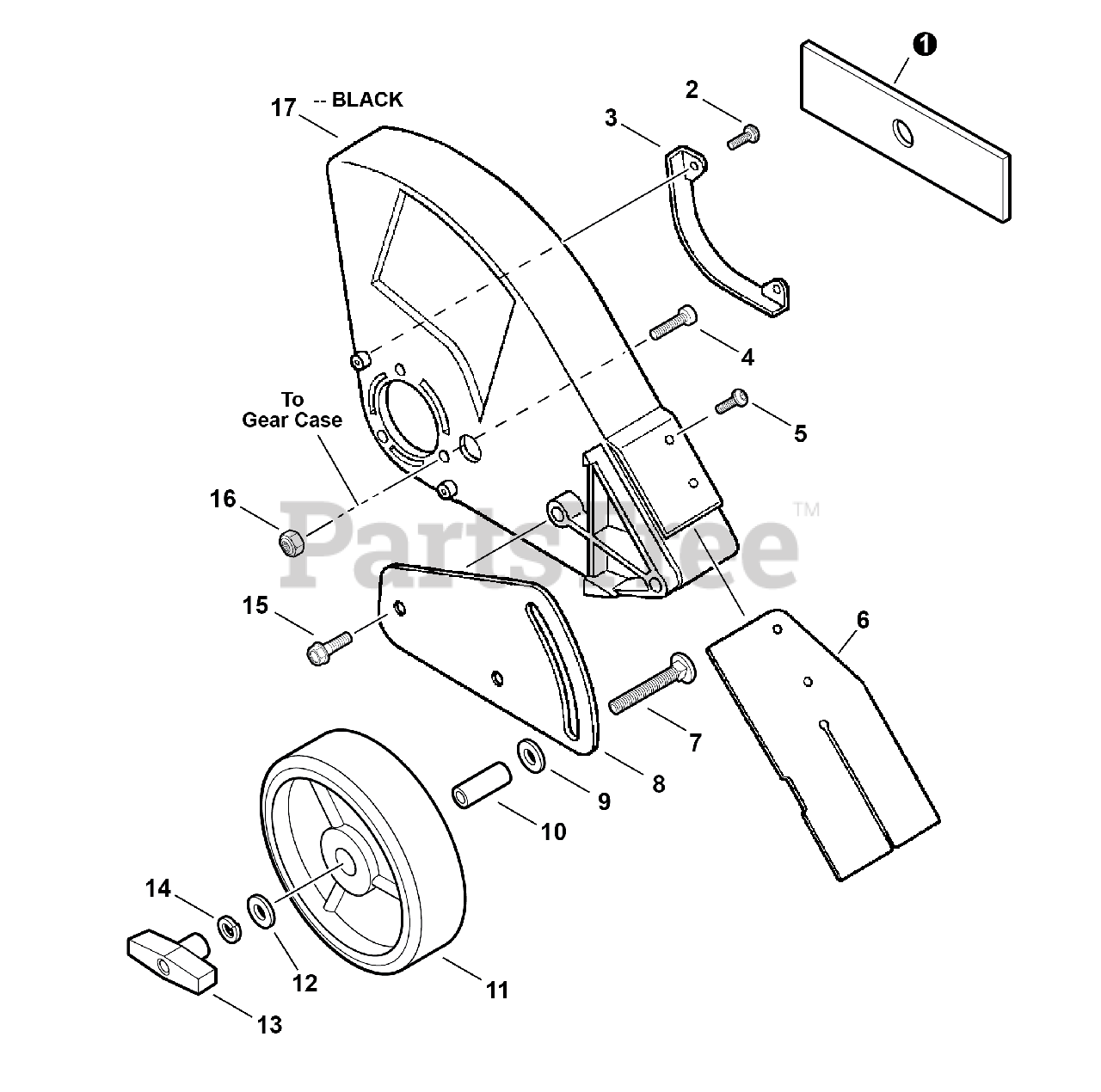

Debris Shield Parts Diagram

  • Title

1

Echo 69601552632

BLADE, EDGER

$9.49

$

In Stock, Qty 20+

0

2

Echo V804000010

SCREW - 4×16 -- TAPPING

$0.99

$

In Stock, Qty 16

0

3

Echo 69902552630

GUARD

$3.49

$

In Stock, Qty 17

0

4

Echo V805000160

SCREW - 5×20

$0.99

$

In Stock, Qty 20+

0

5

Echo V804000020

SCREW - 4×20 -- TAPPING

$0.99

$

In Stock, Qty 18

0

6

Echo 69901755330

FLAP, DEBRIS

$12.99

$

In Stock, Qty 6

0

7

Echo 61025055330

BOLT - CARRIAGE

$1.99

$

In Stock, Qty 20+

0

8

Echo 30202955332

BRACKET, WHEEL

$7.99

$

In Stock, Qty 9

0

9

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

10

Echo 30242452630

COLLAR - 12

$3.49

$

In Stock, Qty 20+

0

11

Echo C730000030

WHEEL - 6×1.5
(Superseded to C730000120)

$10.99

$

In Stock, Qty 10

0

12

Echo 90060200008

WASHER - 8

$0.99

$

In Stock, Qty 20+

0

13

Echo 17811355330

WINGNUT - 5/16-18
(Superseded to V299000670)

$3.49

$

In Stock, Qty 20+

0

14

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90008000100

BOLT - 8

$1.49

$

Usually ships in 2-4 days

0

16

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 69901052630

SHIELD, BLADE
(Superseded to 69901052631)

$20.99

$

In Stock, only 1 left!

0
