PE-2201 - Echo Edger Engine, Crankcase, Fan Housing, Cover Parts Diagram

Edger

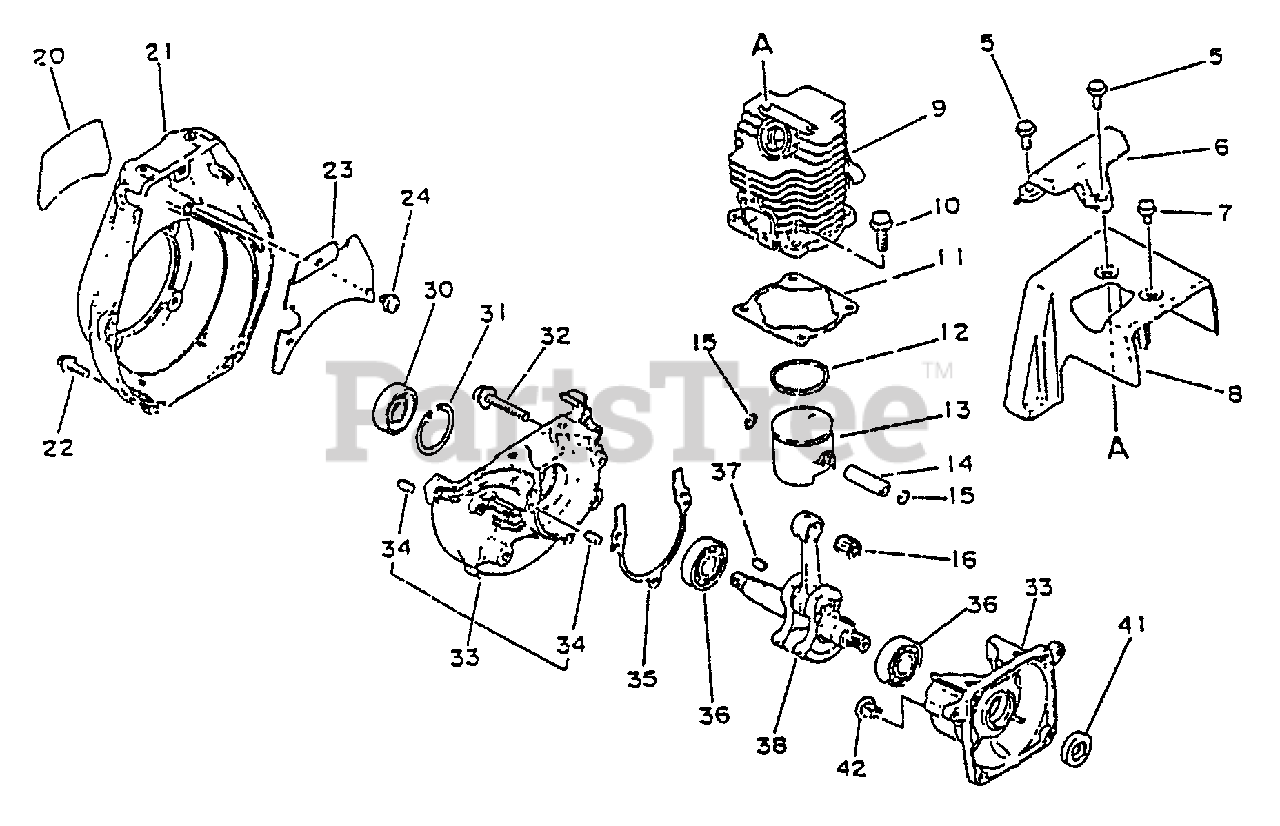

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title
5

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

6

Echo 15990540630

GUARD - TOP

$

$

Not available

7

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 14

0

8

Echo 10151449130

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

9

Echo 10101140630

CYLINDER

$150.99

$

Usually ships in 2-4 days

0

10

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

11

Echo 10101028231

GASKET, CYLINDER

Note: Use Gasket Kit 88900040631

$1.99

$

Usually ships in 2-4 days

0

12

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

13

Echo 10001040630

PISTON
(Superseded to 10000040630)

$80.99

$

In Stock, only 1 left!

0

14

Echo 10001322330

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

15

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

16

Echo 10001222330

BEARING, NEEDLE
(Superseded to V553000040)

$9.49

$

Usually ships in 2-4 days

0

20

Echo 89013549130

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

21

Echo 10151149130

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

22

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

23

Echo 10153440630

SHIELD, FAN

$3.99

$

Usually ships in 2-4 days

0

24

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

30

Echo 10021228230

SEAL, OIL - 12

$4.49

$

In Stock, only 2 left!

0

31

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

32

Echo 90023805028

SCREW - 5X28

$0.99

$

Usually ships in 2-4 days

0

33

Echo 10020028230

CRANKCASE KIT
(Superseded to Discontinued)

Note: Includes ITEM 34

$

$

Not available

34

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

35

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit 88900040631

$

$

Not available

36

Echo 90080036001

BEARING, BALL - 6001C3

$9.49

$

In Stock, Qty 6

0

$1.99

$

In Stock, Qty 16

0

38

Echo 10010040630

CRANKSHAFT ASSY
(Superseded to 10010040632)

$

$

Not available

41

Echo 10021204630

SEAL, OIL

$4.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

Echo 88900040631

GASKET KIT

$11.99

$

Usually ships in 2-4 days

0
