PE-2201 - Echo Edger Carburetor Parts Diagram

Edger

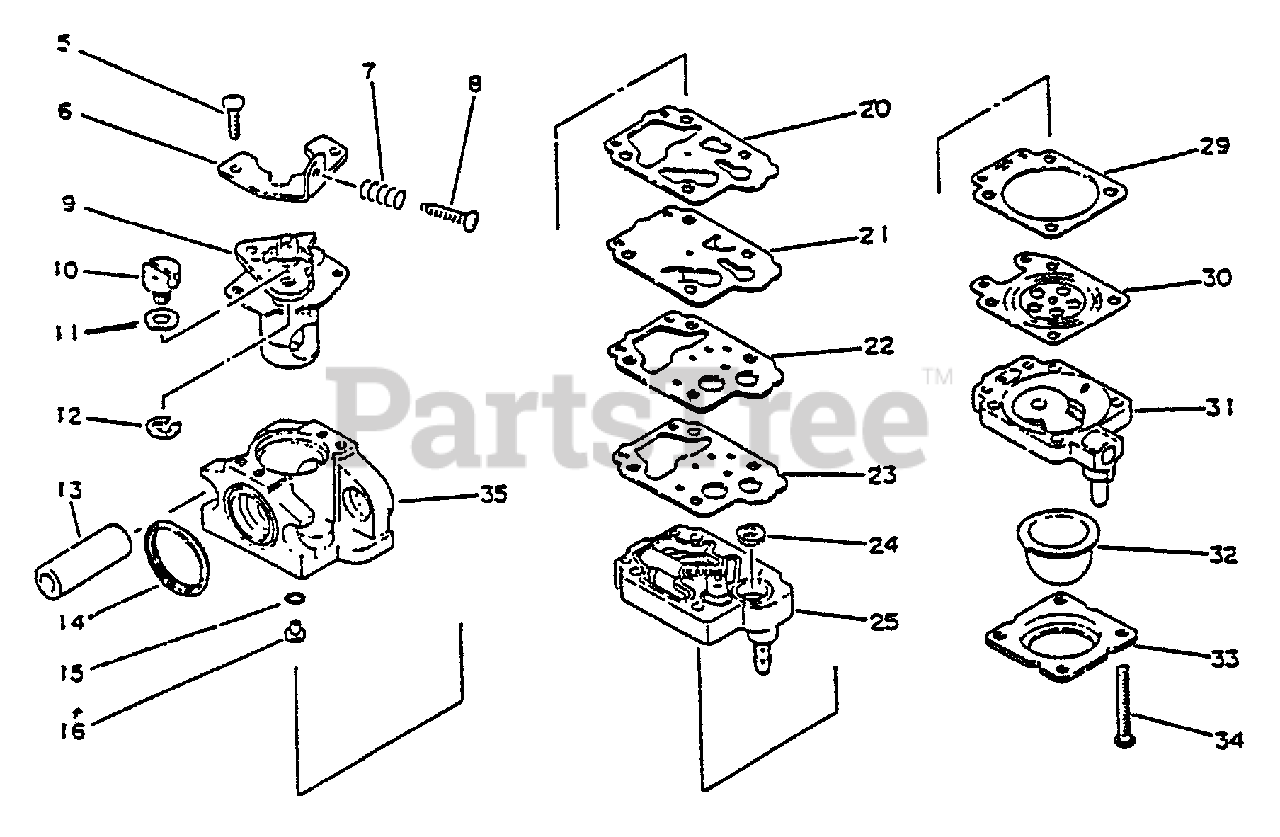

Carburetor Parts Diagram

  • Title

Echo 12300040630

CARBURETOR WY-18
(Superseded to Discontinued)

Note: Includes Items Below

$

$

Not available

5

Echo 12311440630

SCREW

$2.49

$

In Stock, only 3 left!

0

6

Echo 12312840630

BRACKET, THROTTLE CABLE

$3.99

$

Usually ships in 2-4 days

0

7

Echo 12313326030

SPRING, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

8

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

9

Echo 12311640630

VALVE, THROTTLE

$20.99

$

Usually ships in 2-4 days

0

10

Echo 12317226030

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

11

Echo 12314926030

WASHER

$0.99

$

In Stock, only 1 left!

0

12

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

13

Echo 12315840630

SLEEVE, MOUNTING
(Superseded to Discontinued)

$

$

Not available

14

------------------

SEAL

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12310040630 AND CARBURETOR DIAPHRAGM/GASKET KIT 12310140630

$

$

Not available

15

------------------

O-RING

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12310040630

$

$

Not available

16

------------------

JET

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12310040630

$

$

Not available

20

------------------

GASKET, PURGE

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12310040630 AND CARBURETOR DIAPHRAGM/GASKET KIT 12310140630

$

$

Not available

21

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12310040630 AND CARBURETOR DIAPHRAGM/GASKET KIT 12310140630

$

$

Not available

22

Echo 12316040630

PLATE, PUMP

$3.99

$

Usually ships in 2-4 days

0

23

------------------

GASKET, PLATE

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12310040630 AND CARBURETOR DIAPHRAGM/GASKET KIT 12310140630

$

$

Not available

24

------------------

STRAINER

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12310040630

$

$

Not available

25

------------------

BASE, PURGE

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12310040630

$

$

Not available

29

------------------

GASKET, METERING

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12310040630 AND CARBURETOR DIAPHRAGM/GASKET KIT 12310140630

$

$

Not available

30

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN CARBURETOR REPAIR KIT P/N 12310040630 AND CARBURETOR DIAPHRAGM/GASKET KIT 12310140630

$

$

Not available

31

Echo 12318040630

BASE, PURGE
(Superseded to 12318046130)

$11.99

$

In Stock, only 2 left!

0

32

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

33

Echo 12314202960

RETAINER, PURGE BULB

$3.99

$

In Stock, only 2 left!

0

34

Echo 12311040630

SCREW

$0.99

$

In Stock, Qty 6

0

35

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 12310040630

REPAIR KIT

$29.99

$

Usually ships in 2-4 days

0

Echo 12310140630

DIAPHRAGM/GASKET KIT

$9.49

$

In Stock, Qty 8

0

Echo 88900040631

GASKET KIT

Note: Includes The Following

$11.99

$

Usually ships in 2-4 days

0

Echo 10024228230

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

Echo 10101028231

GASKET, CYLINDER

$1.99

$

Usually ships in 2-4 days

0

Echo 13001028231

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

Echo 13001640631

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

Echo 14551040631

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

Echo 14586640631

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available
