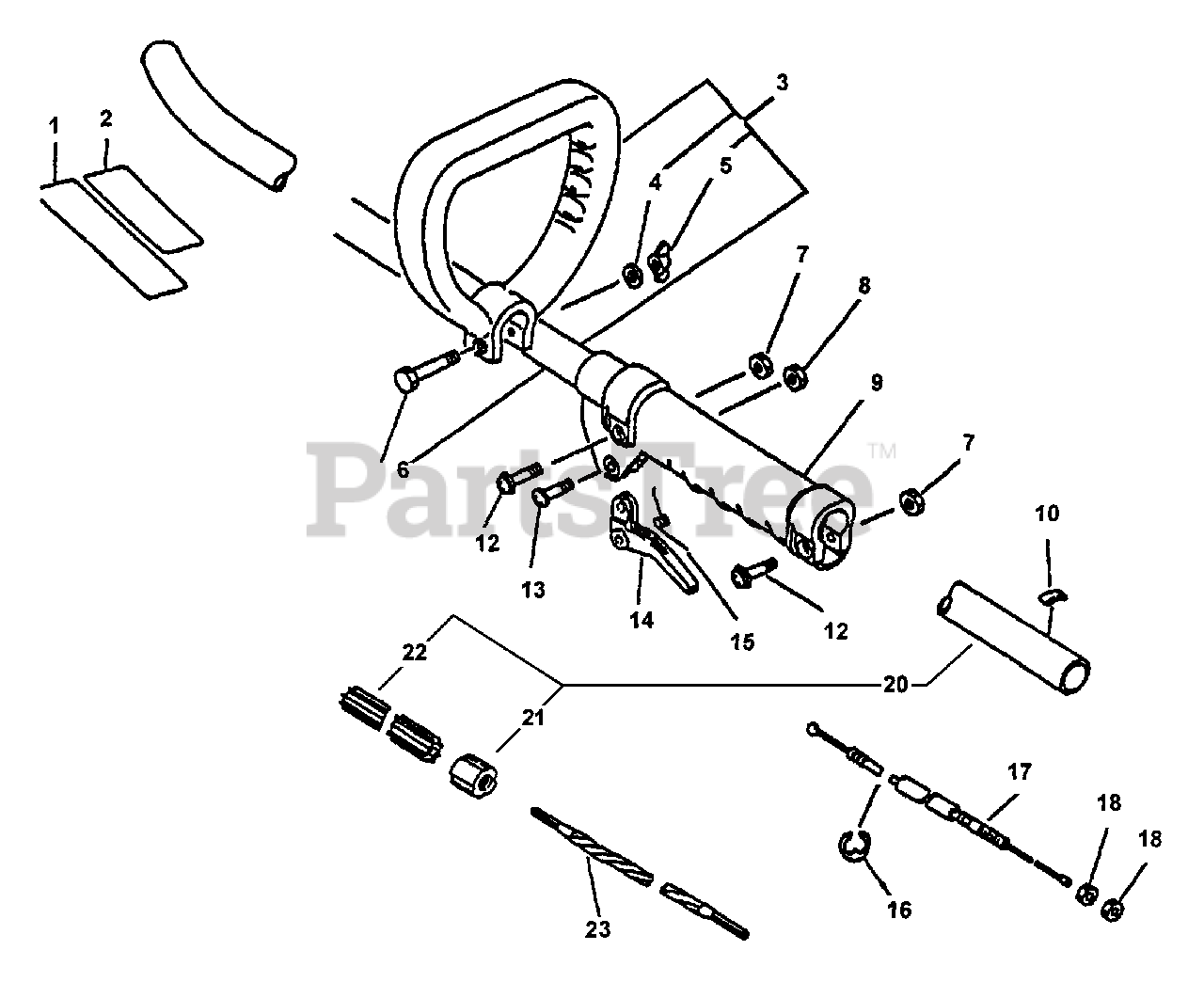

PE-2000 - Echo Edger (Type 1E) Driveshaft, Handles, Throttle Parts Diagram

Edger (Type 1E)

Driveshaft, Handles, Throttle Parts Diagram

  • Title

1

Echo 89016048030

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

2

Echo 89017740630

LABEL - CAUTION

$5.49

$

Usually ships in 2-4 days

0

3

Echo 35161044330

HANDLE ASSY
(Superseded to 35160044330)

$20.99

$

In Stock, only 1 left!

0

4

Echo 90003500008

WASHER - 1/4"

$0.99

$

In Stock, Qty 9

0

5

Echo 90003300008

WINGNUT - 1/4-20

$0.99

$

In Stock, Qty 20+

0

6

Echo 90001708048

BOLT - 1/4-20 X 1-1/2"

$0.99

$

In Stock, Qty 8

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

9

Echo 35121344330

GRIP, HANDLE

$13.99

$

In Stock, only 1 left!

0

10

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

12

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

13

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

14

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.49

$

In Stock, Qty 20+

0

15

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

16

Echo 90070000005

RING, RETAINING - 5

$0.99

$

In Stock, Qty 11

0

17

Echo 17800144430

CABLE, THROTTLE

$10.99

$

In Stock, only 1 left!

0

18

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 8

0

20

Echo 61020655330

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 21-22

$

$

Not available

21

Echo 61024655330

BUSHING

$4.49

$

In Stock, Qty 7

0

22

Echo 61021755330

LINER - FLEXIBLE

$23.99

$

Usually ships in 2-4 days

0

23

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$16.99

$

In Stock, only 4 left!

0
