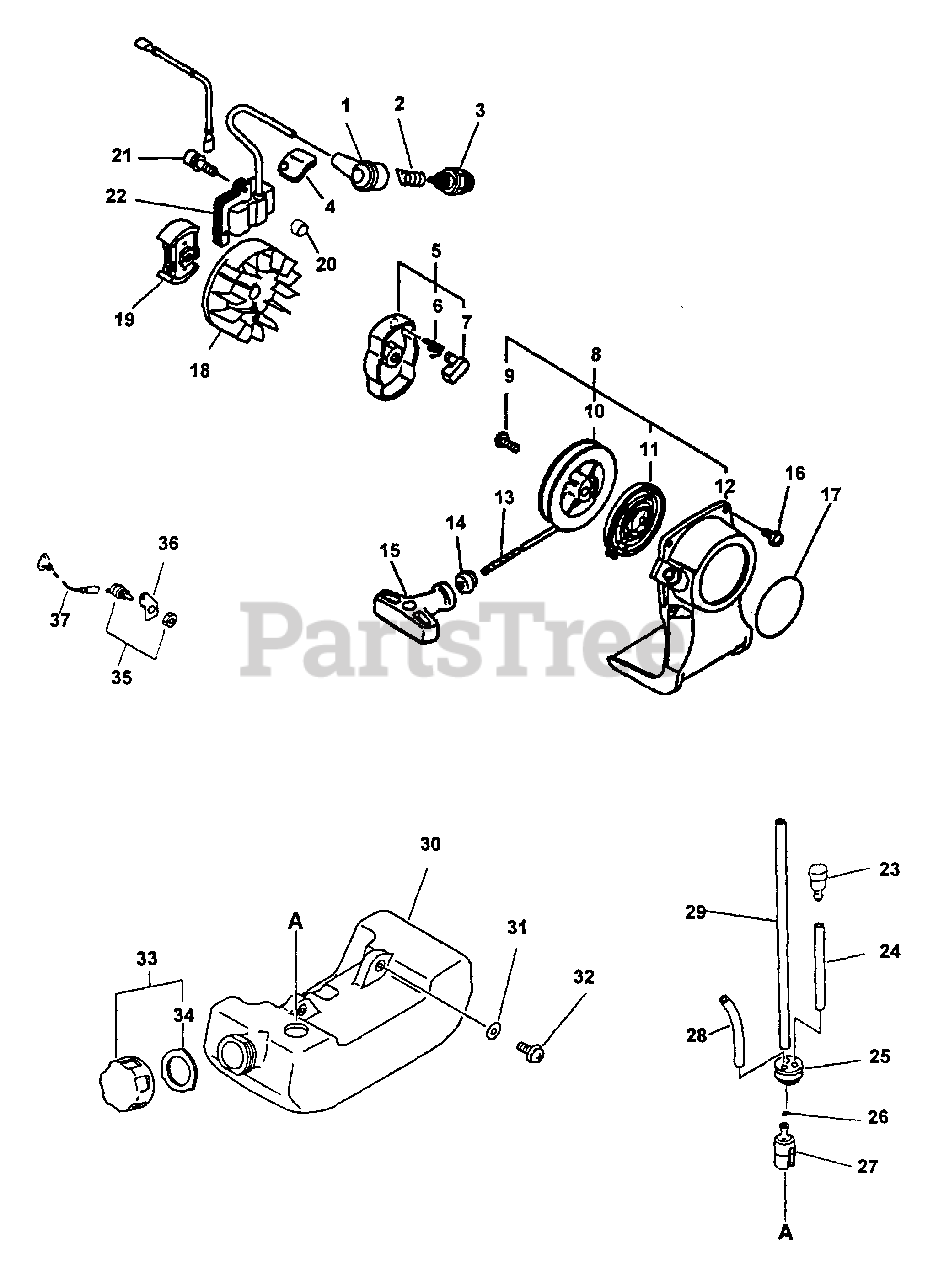

PE-2000 - Echo Edger (Type 1) Ignition, Starter, Clutch, Stop Switch, Fuel System Parts Diagram

Edger (Type 1)

Ignition, Starter, Clutch, Stop Switch, Fuel System Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

2

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

4

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

5

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes ITEMS 6-7

$16.99

$

In Stock, Qty 16

0

6

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 9

0

7

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

8

Echo 17720044332

STARTER ASSY
(Superseded to 17720044333)

Note: INCLUDES ITEMS 9-15

$45.99

$

In Stock, Qty 20+

0

9

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

10

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 14

0

10

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 14

0

11

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 16

0

12

Echo 17723244332

CASE, STARTER - BLUE
(Superseded to 17723244333)

$40.99

$

In Stock, only 1 left!

0

13

------------------

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$

$

Not available

14

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

15

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 18

0

16

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

17

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

18

Echo 15880006360

FLYWHEEL
(Superseded to 15880020560)

$

$

Not available

19

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

$27.99

$

In Stock, Qty 5

0

19

Echo 17500054130

CLUTCH ASSY
(Superseded to 17500049030)

$27.99

$

In Stock, Qty 5

0

20

Echo 10153154330

SPACER

$2.99

$

In Stock, only 2 left!

0

21

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

22

Echo 15862655330

COIL, IGNITION
(Superseded to 15862655331)

$

$

Not available

22

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$133.99

$

In Stock, only 1 left!

0

23

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 11

0

24

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

25

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 19

0

26

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

27

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

28

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

29

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 14

0

30

Echo 13100544331

TANK, FUEL
(Superseded to 13100544332)

$20.99

$

In Stock, only 1 left!

0

31

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

32

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

33

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: Includes ITEM 34

$4.49

$

In Stock, only 1 left!

0

34

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

35

Echo 16340003460

IGNITION SWITCH ASSY

$8.49

$

In Stock, only 2 left!

0

36

Echo 16381044330

BRACKET, SWITCH

$2.99

$

In Stock, only 1 left!

0

37

Echo 16201006860

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

Echo 99944400040
